Wireline Drill Rods PQ Drill Pipe 3 meters length

This wireline drill rod is the equipment that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends. All rods are designed to be compatible with other rods manufactured to DCDMA .
Availability:
Quantity:
  • Wireline Drill Rods PQ
  • ROSCHEN
  • ROS-WDP-BQ /NQ /HQ /PQ

Product Description


Wireline Drill Rods, PQ Drill Pipe, 3 meters length


Description of Wireline Drill Rod:

This wireline drill rod is the equipment that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends.


Wireline Drill Rod

Exploration diamond drilling differs from other geological drilling, which utilizes an annular diamond drill bit attached to the end of hollow drill rods to cut a cylindrical core of solid rock for examination on the surface. The core does not drop out of the inside of the core barrel when lifted because either a split ring core lifter or basket retainer allow the core to move into, but not back out of the tube. Drilling of 1200 to 1800 metres is common and at these depths, ground is mainly hard rock, so diamond drill rigs need to drill slowly to lengthen the life of drill bits and rods, this drilling method cost are very expensive.


Size

Outer Diameter (mm)

Inner Diameter(mm)

AQ

44.7

37.3

BQ

55.7

46.1

NQ

70.0

60.2

HQ

89.0

78.0

PQ(PHD)

114.5

101.5

AW/AWJ/AWY

43.7

30.7

BW/BWJ/BWY

54.0

38.0

NW/NWY

66.8

51.0

HW

89.0

71.0

42mm

42.0

30.0

50mm

50.0

37.0

60mm

60.0

48.0

70mm

73.0

54.6

90mm

89.0

69.0

S75

71.0

61.0



All rods are designed to be compatible with other rods  manufactured to DCDMA

Drill Rod Size Available:
"Q" Series: B, N, H, and P.
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 42, 50, 60, 70, 90

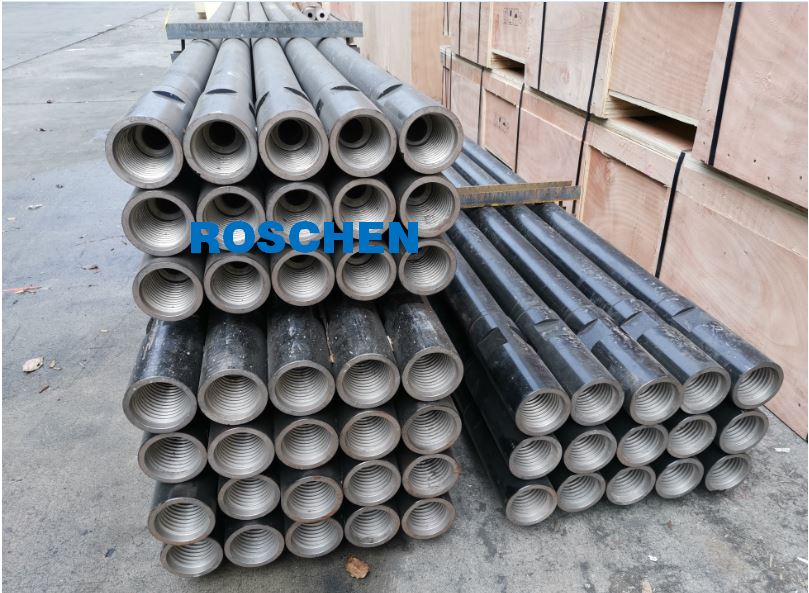

 wireline drill pipe

Heat treatment control:

Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.


Raw materials:

We  only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.
