Wireline Double Tube Core Barrel HQ PQ BTW

ROSCHEN offers a complete line of single & double and triple tube core barrels, which will provide superior performance and obtain the full recovery of the sample in any application of diamond core drilling.
Using a wireline system, core is recovered quickly by retrieving the inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has big cost advantages when drilling deep holes for mineral exploration.

Quantity:
  • HQ PQ BTW NTW HTW T2
  • ROSCHEN
  • ROS-WCB-HQ PQ BTW NTW HTW T2

Product Description

Wireline double tube core barrel HQ PQ BTW NTW HTW T2



HQ PQ BTW NTW HTW T2 double tube core barrel

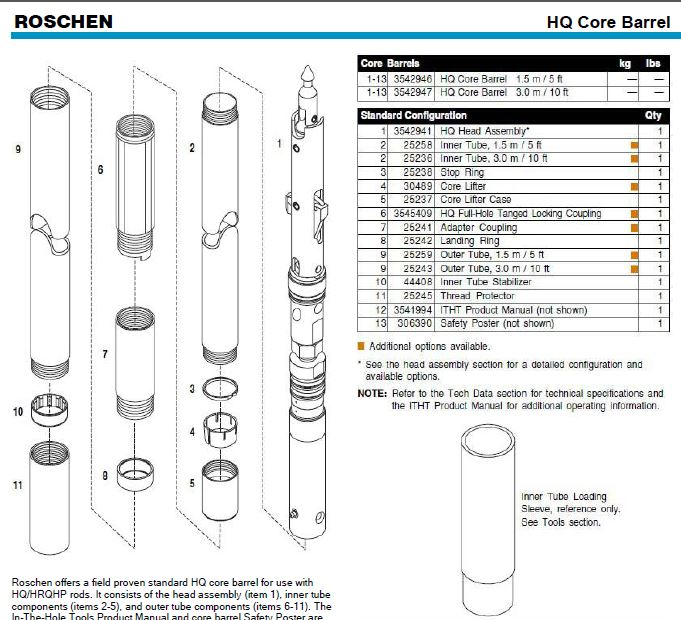

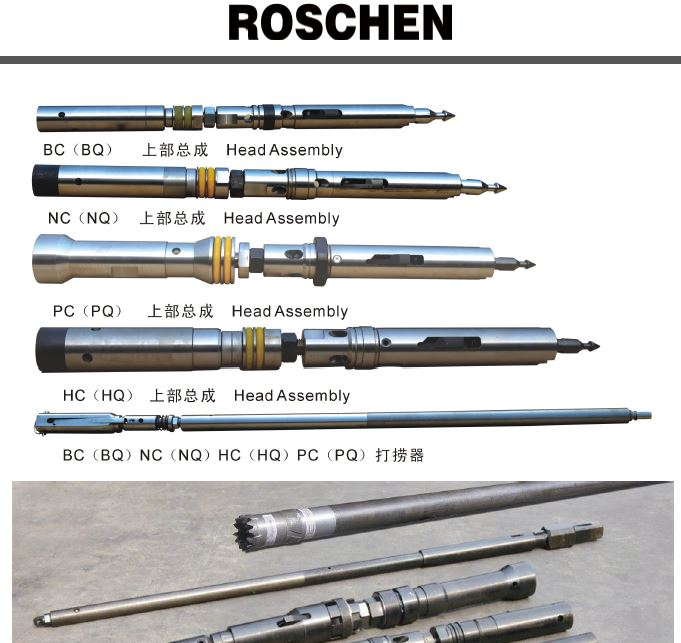

Thin Wall BTW NTW HTW wireline double tube core barrel assembly head assembly Conventional Drilling

No.

Std.

Item

Bit Std.

Reamer Std.

Bit OD(mm)

Bit ID(mm)

TW Series

1

ATW

1.5M double tube core barrel

ATW

ATW

47.6

30.1

2

BTW

1.5M double tube core barrel

BTW

BTW

59.5

42.0

3

NTW

1.5M double tube core barrel

NTW

NTW

75.3

56.1

Wire-line drill tools can lift drill core from drill rods without picking up bits .All the tools include principal parts of the drill tools. Overshot assembly, drill rods, holding dog, circle wrench and etc. Their advantage are higher penetration , higher core recovery ratio ,longer bit life and lower lab intensity ,and the advantages get more clear with the increasing of hole depth .



ROSCHEN offers a complete line of single & double and triple tube core barrels, which will provide superior performance and obtain the full recovery of the sample in any application of diamond core drilling.



 Using a wireline system, core is recovered quickly by retrieving the inner tube directly through the drill string. The rods remain in the hole until the bit needs to be replaced. This has big cost advantages when drilling deep holes for mineral exploration.



 Standard Wireline Double tube Core Barrels are ideal for use in most of the drilling conditions and are available for application in standard hole sizes (BWL, NWL, HWL and PWL).



 Wireline Triple tube Core Barrels enable integral core recovery when drilling coal, clay bearing or highly fractured formations. The split tube retains the core sample in its received state for easier loading into sample trays or for storage and subsequent presentation to the geologist. The Triple tube Core Barrels is available in N, H and P sizes.



When the inner-tube is full, a device called an overshot is lowered down the hole via a wireline cable and brought to the surface by use of a winch.



 Once the inner-tube assembly is at the surface, an empty inner tube is lowered into the hole so drilling can resume



 A Overshot is available for each size of core barrel. This is the retrieval device lowered on the wireline to recover the inner tube assembly containing core.

Diamond core drill bits and diamond non-core drill bits   Specifications

A-Gauge Core Bits:

A, A-RSG, AWG(AX), AWM, AWT,   LTK48

B-Gauge Core Bits:

B, B-RSG, B-2.400, B3,   BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits:

N, NMLC, NWG(NX), NWM, NWT,   TNW

H-Gauge Core Bits:

N, HMLC, HWF-Long,   HWF-Short, HWG(HX), HWT

P- Gauge Core Bits:

P, P3, PWF-Long, PWF-Short

S- Gauge Core Bits:

SWF-Long, SWF-Short

U- Gauge Core Bits:

UWF-Long, UWF-Short

Z- Gauge Core Bits:

ZWF-Long, ZWF-Short

T, TT, T2 &TB Series   Metric Core Bits:

T36, TT46, T2-46, TB56,   TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101,   T2-101 coreline

T6 Series Metric Core Bits:

T6-76, T6-86, T6-101,   T6-116, T6-131, T6-146

T6S Series Metric Core Bits:

T6S-76, T6S-86, T6S-101,   T6S-116, T6S-131, T6S-146

Q Series:

AQ, BQ, NQ, HQ, PQ/AQTK,   BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 Series:

T2 46, T2 56, T2 66, T2 76,   T2 86, T2 101

T6 Series:

T6 76, T6 86, T6 101, T6   116, T6 131, T6 146, T6S 101

T Series:

T36, T46, T56, T66, T76, T86

Z Series:

Z46, Z56, Z66, Z76, Z86,   Z101, Z116, Z131, Z146

B Series:

B36, B46, B56, B66, B76,   B86, B101, B116, B131, B146

WF Series:

HWF, PWF, SWF, UWF, ZWF

WT Series:

RWT, EWT, AWT, BWT, NWT, HWT

WM Series:

EWM, AWM, BWM, NWM

WG Series:

EWG, AWG, BWG, NWG, HWG

Others:

NMLC, HMLC, LTK48, LTK60,   BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16,   NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.

Customized standard

CDDA, DCAMA, Crealius, and   ISO sizes .

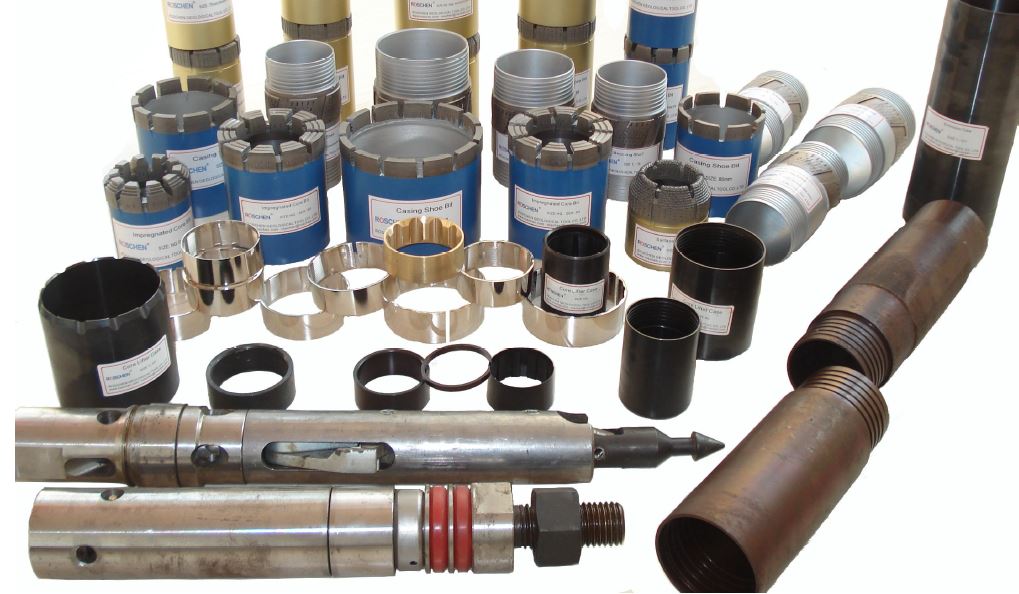

wireline drilling core barrel
