Ultra-matrix Diamond Core Bits for Diamond Core Drilling

Description:
Brief Introduction of Q-Series Diamond Core Bits
The Q-Series diamond bits are cutting tools .They are widely be used for wire-line core drilling. They contain diamond segments bonded to a base material.
The Bits could be impregnated or surface set.
They are widely applied in cutting non-ferrous materials.
Our bits are using high quality diamond materials and also based on exquisite technology.

Quantity:
  • AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2
  • ROSCHEN
  • ROS-MCB- AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2

Product Description

Ultra-matrix Diamond Core Bits for Diamond Core Drilling



Description:

Brief Introduction of Q-Series Diamond Core Bits

The Q-Series diamond bits are cutting tools .They are widely be used for wire-line core drilling. They contain diamond segments bonded to a base material.

The Bits could be impregnated or surface set.

They are widely applied in cutting non-ferrous materials.

Our bits are using high quality diamond materials and also based on exquisite technology.



 Features of Q-Series Diamond Bits
1. Wide hardness range. Hardness is from 5 to 55°
2. High drilling speed.
3. Longer service life.

4. Competitive prices.

5. ROSCHEN has 15 years history in manufacturing diamond core bits.



Diamond Impregnated Core Drill Bit BQ NQ HQ PQ

Depending on the range of application as well as the cutting media on the core bits, ROSCHEN makes different types of core bits:



1.  Impregnated Diamond Type

2.  Surface set Diamond Type

3.  Tungsten Carbide Type

4.  PDC Type

5.  PCD Type

6.  Electroplated Diamond Type

7.  Ultra-matrix Diamond Core Bits

Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.



Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc.



Sizes Available
Wireline series Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2,   AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series TT 46, TT 56
T6 series T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series NMLC, HMLC, 3C, 4C, 6C, 8C
LTK series LTK48, LTK60
WF series HWF, PWF, SWF, UWF, ZWF
WT series RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series EWM, AWM, BWM, NWM, HWM
Other sizes AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW,   T6H, SK6L-146
Chinese standard 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm,   170mm, 219mm, 275mm
Russian standard 59, 76, 93, 112, 132, 152 mm
Special sizes can also be made   as per request

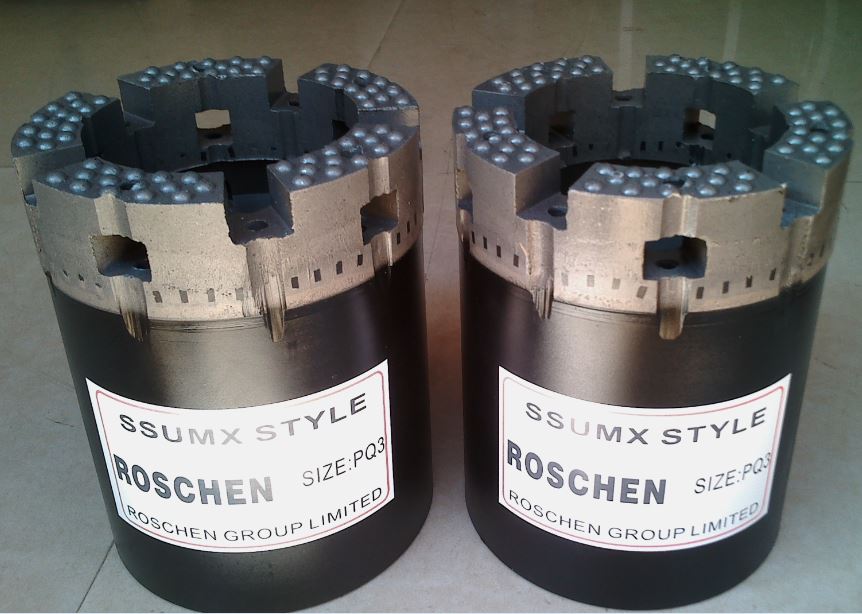

ssumx style core bit
