Triple Key Hollow Stem Auger 3 1/4inch

All 3 1/4″ (83mm) Triple Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 5″ (117mm) pitch.
Availability:
Quantity:
  • 3 1/4″ (83mm)

  • ROSCHEN

  • ROS-AD-3 1/4-T

Product Description


Triple Key Hollow Stem Auger 3 1/4inch


All 3 1/4″ (83mm) Triple Key Hollow Stem Augers feature a continuous hardfaced flighting design, 3/8″ (9.5mm) thick on the outer edge with a 5″ (117mm) pitch. The tool joints are made from 4142 alloy steel and feature double-bolt connections.


Description Lbs. Kg.
Auger Section
1 3   1/4″ (83mm) TK Hollow Stem   Auger 3 1/4″ (83mm)   I.D. x 6 5/8″ (169mm)   O.D. x 5′ (1525mm) 81 36.7
2 3   1/4″ (83mm) TK Drive Cap with   1 5/8″ (41mm) Hex Pin 21 9.5
2 3   1/4″ (83mm) TK Drive Cap with   2″ (51mm) Hex Pin 25 11.3
3 #3   Nut & Bolt for Rod-to-Cap Adapter 0.9 0.4
4 3   1/8″ (79mm) Pilot Bit   Connector (AW Box – 4 Thd N-Rod Box) 11 5
4 3   1/8″ (79mm) Pilot Bit   Connector (AWJ Box – 4 Thd N-Rod Box) 12 5.4
4 3   1/8″ (79mm) Pilot Bit   Connector (NW Box – 4 Thd N-Rod Box) 8 3.6
4 3   1/8″ (79mm) Pilot Bit   Connector (NWJ Box – 4 Thd N-Rod Box) 11 5
5 Rod-to-Cap   Adapter – AW Pin 3 1.4
5 Rod-to-Cap   Adapter – AWJ Pin 3 1.4
5 Rod-to-Cap   Adapter – NW Pin 7 3.2
5 Rod-to-Cap   Adapter – NWJ Pin 6 2.7
6 AW   Drill Rod – 5′ (1524mm) 21 9.5
6 AWJ   Drill Rod – 5′ (1524mm) 23 10.4
6 NW   Drill Rod – 5′ (1524mm) 31 14.1
6 NWJ   Drill Rod – 5′ (1524mm) 35 15.9
Auger Repair Parts
1A 3   1/4″ (83mm) TK Pin Tool Joint 6 2.7
1B 3   1/4″ (83mm) TK Box Tool Joint 5 2.3
7 ALB1   Auger Lock Bolt 0.3 0.1
8 ABN1   Auger Bushing Nut 0.2 0.1
9 ADK1   Auger Drive Key 0.3 0.1
Auger   Cutterheads and Pilot Bits
10 3   1/4″ (83mm) TK Blade   Cutterhead – 7 1/2″   (190mm) O.D. 11 5
10 3   1/4″ (83mm) TK Spade   Cutterhead – 7 1/2″   (190mm) O.D. 12 5.5
10 3   1/4″ (83mm) TK Blade/Bullet   Cutterhead – 7 1/2″   (190mm) O.D. 14 6.4
10 3   1/4″ (83mm) TK Spade/Bullet   Cutterhead – 7 1/2″   (190mm) O.D. 12 5.5
10 3   1/4″ (83mm) TK Bullet   Cutterhead – 7 1/2″   (190mm) O.D. 12 5.5
10 3   1/4″ (83mm) TK 5-T Cutterhead   – 7 1/2″ (190mm) O.D.
11 3   1/8″ (79mm) Apex Pilot Bit,   4-Thrd N-Rod Pin 2.5 1.3
11 3   1/8″ (79mm) Bullet Pilot Bit,   4-Thrd N-Rod Pin 5 2.3

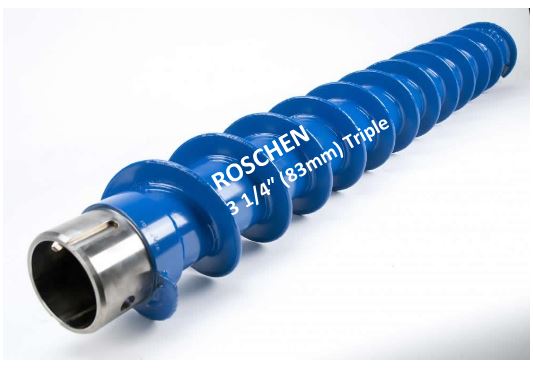

83mm triple hollow stem auger


For more information please contact:

Skype: ROSCHEN.TOOL , ROSCHEN_GROUP

WeChat: +86-137 6419 5009 ; +86-135 8585 5390

WhatsApp: +86-137 6419 5009 ; +86-135 8585 5390

Email: roschen@roschen.com ; roschen@roschen.net


Website: http://www.roschen.com ; http://www.roschen.net

http://www.roschen.cn ; http://www.roschendrill.com
