Top Hammer Bits T45

ROSCHEN is the professional top hammer drill bits supplier. Most popular top hammer drill bits for sale! Provide the top hammer drill bits to the world wide customers.This top hammer drill bits for mining are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

Quantity:
  • T45
  • ROSCHEN
  • ROS-T45

Product Description

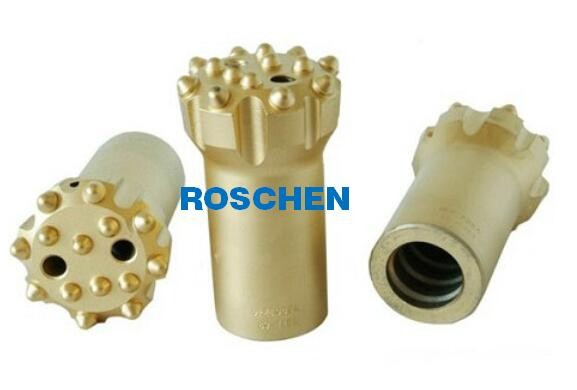

Top Hammer Bits T45



Diameter: 70mm-105mm

Processing Type: Forging

Face design: Flat; Convex; Concave



ROSCHEN top hammer drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.



Features of the T45 Top Hammer Drill Bits:

 1.    Top Hammer Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations.

  Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

 2.    Recommended for eliminating hole deviation

 3.    Widely used drifting and tunneling,Surface drilling and underground tunneling project.

 4.    Top Hammer Drill Bit face design is ideal for medium-hard to hard abrasive rock.



 Detailed information of Top Hammer Drill Bit T45

Dia Tip size(mm) No.of flushing holes Weight(kg)
mm Gauge Front Side Front
70 6*12 4*10 0 2 2.4
76 6*13 4*10 0 2 2.6
89 8*12 5*12 2 2 4.5
102 8*13 6*12 2 2 5
115 8*14 6*13 2 2 6.8
64 6*10 4*9 0 3 1.6
70 6*12 4*10 0 3 2.4
76 8*11 5*10 0 4 2.6
89 8*12 6*12 0 4 4.6
102 8*13 6*12 0 4 4.5
70 8*11 4*10 2 2 2.5
76 8*11 4*10 2 2 3.1
80 8*12 5*11 2 2 4
89 8*12 5*12 2 2 5.1
102 8*13 6*12 2 2 8.2
70 8*10 5*9 0 4 2.2
76 8*11 5*10 0 4 3.1
89 8*12 6*12 0 4 5.4
102 8*13 6*12 0 4 7.8
105 8*13 6*12 0 4 8.3

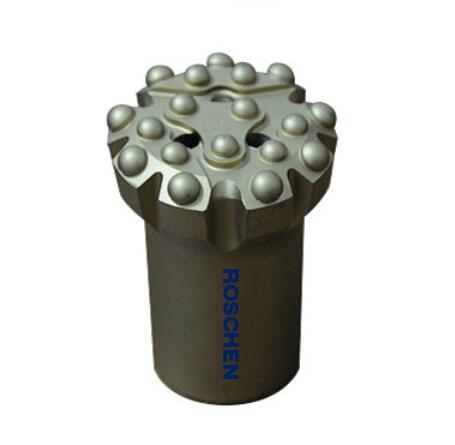

thread button bit T45

This top hammer drill bits for mining are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.



ROSCHEN is the professional top hammer drill bits supplier.  Most popular top hammer drill bits for sale! Provide the top hammer drill bits to the world wide customers.
