Threaded Button Bit T38-89 Q14 for Top Hammer drilling

ROSCHEN offers rock drill bits: T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground
Diameter: 64mm 76mm, 89mm,
Skirt body: retrac, and normal,
Face design: flat, uniface, drop center
Carbide design: Dome, ballistic

Quantity:
  • T38-89 Q14
  • ROSCHEN
  • ROS-T38-89 Q14

Product Description

Threaded Button Bit T38-89 Q14 for Top Hammer drilling



ROSCHEN offers rock drill bits: T38 Threaded Button Bits is the most important size for benching and long-hole drilling underground



Diameter: 64mm 76mm, 89mm,



Skirt body: retrac, and normal,



Face design: flat, uniface, drop center



Carbide design:  Dome, ballistic



Used in bench drilling, underground long hole drilling



To match extension MF rod, MM rod heavy duty top hammer.



Dome carbide inserts with drop center face, 89mm diameter threaded drill bits with T38 thread for bench drill, underground long hole drilling to match extension drill rods.

Thread

T38

Diameter

89

Gauge Buttons

8*13

Front Buttons

6*13

Skirt Design

Standard

Weight

3.3Kgs

Carbide Design

Dome

Face Design

Drop Center

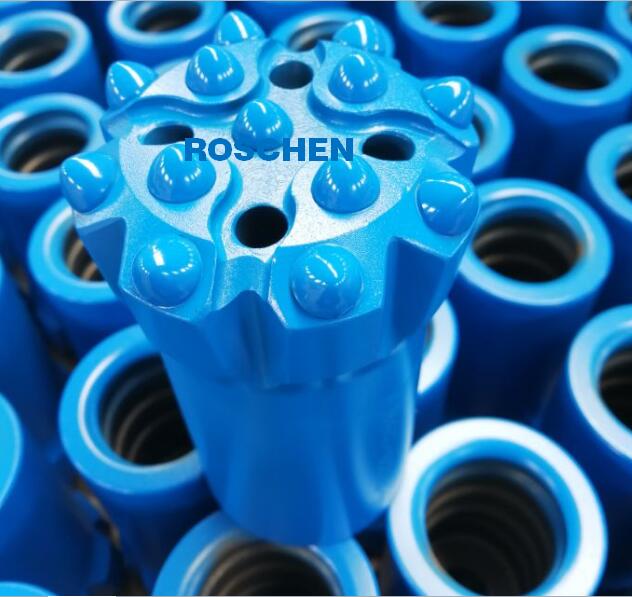

 Threaded button bit T38

In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.



We will choose to use tungsten carbide of T6featuring good wear-resistance and toughness.

 This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.



 Meanwhilewe will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons dropping out of the holes.
