Threaded Button Bit SR28-45mm Q7 for Top Hammer drilling

ROSCHEN is rock drill bits factory, we offers a wide of threaded drill bit as per different thread type, diameter, skirt body, face, and carbide shape as for your drilling job, there are two thread type of R, T, R series threaded button bit including R22, R25, R28, R32, size 38 mm, 41mm, 45 mm, 48mm, 51mm used in tunneling and drifting drilling for underground mining, Above R25-38 mm button drill bit with 7 tungsten carbides to match Shank Rods with 0.5 m, 0.8 m , 1.2 m for quarrying, drilling machine is YT28 , YT27, YT29A, shank size : 22*108mm, total different with normal threaded top hammer drill rod ,MF Rod, Drifting Rods,

Quantity:
  • SR28-45mm
  • ROSCHEN
  • ROS-SR28-45mm

Product Description

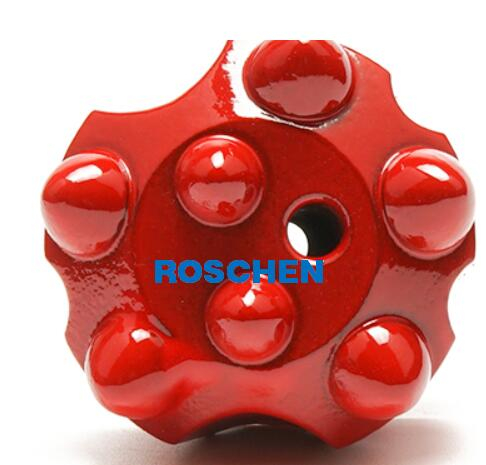

Threaded Button Bit SR28-45mm Q7 for Top Hammer drilling



7 Semi-ballistic buttons, SR28 Threaded Drill Bit.



R22, R25, R28 Threaded Button Bits of rock drill bits.



Diameter 40mm, 41mm, 43mm, 45mm.

Thread

SR28

Diameter

45mm

Gauge

5*10

Front

2*8

Skirt Design

Standard

Weight

0.56Kgs

Carbide Design

semi-ballistic

ROSCHEN is rock drill bits factory, we offers a wide of threaded drill bit as per different thread type, diameter, skirt body, face, and carbide shape as for your drilling job,   there are two thread type of  R,  T,  R series threaded button bit including R22, R25, R28,  R32,  size 38 mm, 41mm, 45 mm, 48mm, 51mm  used in tunneling and drifting drilling for underground mining, Above R25-38 mm button drill bit with 7 tungsten carbides to match Shank Rods with 0.5 m, 0.8 m , 1.2 m for quarrying,  drilling machine is YT28 , YT27, YT29A,  shank size : 22*108mm, total different with normal threaded top hammer drill rod ,MF Rod, Drifting Rods.

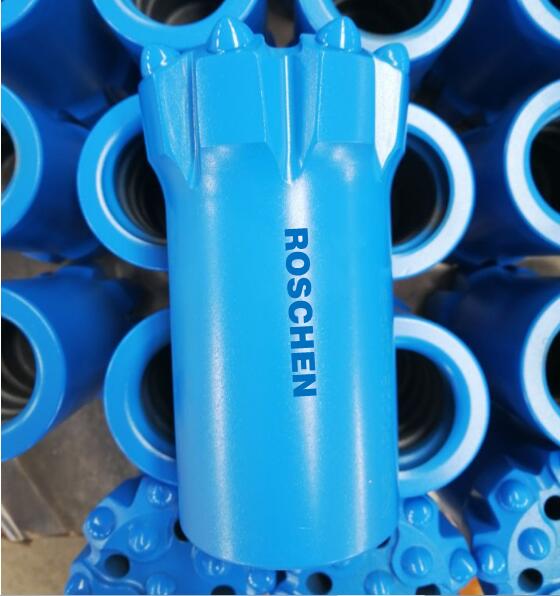

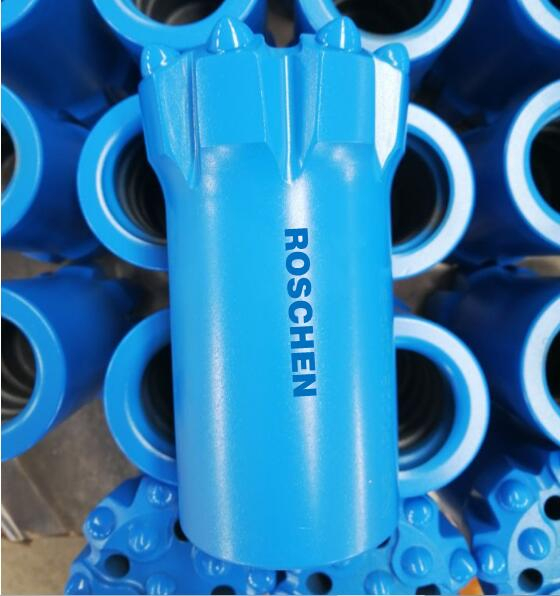

 Top threaded button bits S28

 ROSCHEN provides a wide of threaded button bit as per different thread type, diameter, skirt body, face, and carbide shape as for your drilling job.



Threaded drill bits used in drifting and tunneling, or dimensional natural stone quarrying. To match shank rod, and MM Hex drifter rod for light-duty top hammer.



We will choose to use tungsten carbide of T6featuring good wear-resistance and toughness.

 This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.



Meanwhilewe will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons dropping out of the holes.

 In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.
