TCI Tricone bit 10-5/8'' IADC 642

Rotary Drilling Tools: 10-5/8'' IADC Code 642 , Tricone Roller Bit with Tungsten Carbide Insert, Sealed Bearings, carbide side friction protection for semi hard to hard rock formation.

Quantity:
  • 10-5/8'' IADC 642
  • ROSCHEN
  • ROS-TCI-270

Product Description

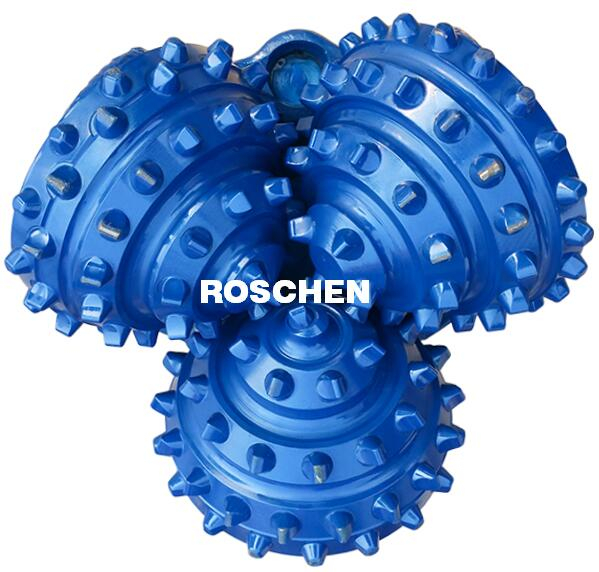

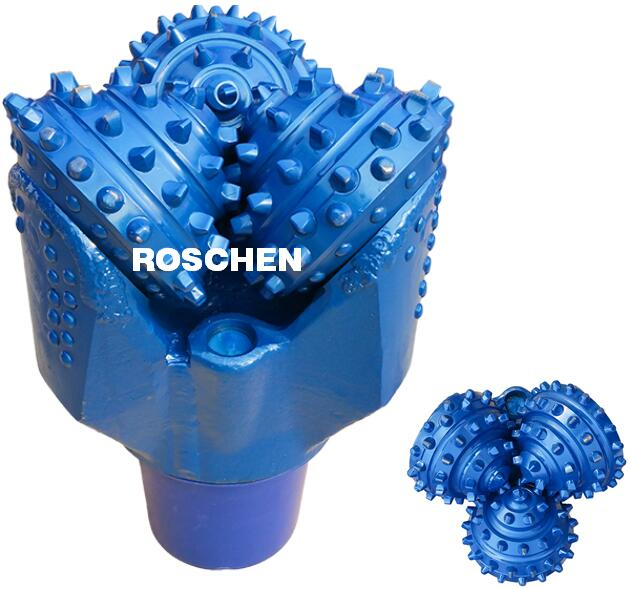

Tricone drill Bit with Tungsten Carbide Inserts 10-5/8'' IADC 642

Product description:



Tricone Roller Bit 10-5/8'' IADC 642 with Tungsten Carbide Insert for Mining

Code No.

ROS-TCI-270

Diameter

10 5/8''    / 270mm

Pin Type Dimensions

6 5/8'' API

Teeth Type

TCI

IADC No

642


TCI Tricone Rock drill Bits

Rock drilling tools factory / rotary drilling tools manufacture with a complete process line of TCI tricone drill bit, our products are available in new steel tooth and tungsten carbide insert, the TCI tricone bit size is from 3 3/8''(85.7mm) to 26''(660.4mm) for all formations, with any bearing/seal type, and a wide range of additional custom features.

Rotary drilling tools:  10-5/8'' IADC Code 642-Tricone Roller Bit with Tungsten Carbide Insert, Sealed Bearings, carbide side friction protection for semi hard to hard rock formation.

Rock formation

Bit type

Bit size

Drilling weight

Rotary speed

mm

inch

kN/mm

r/min

Very soft

Soft Marl, Clays, Sands, Salts etc.

1

187.3~346.1

7 3/8~13 5/8

441~735

120~50

soft

Clays, Soft Shale, Marl, Sands, Salts etc.

2

95.2~174.6

3 3/4-6 7/8

245-490

100-50

187.3~346.1

7 3/8-13 5/8

490-784

90-40

Medium soft

Shale, Marl, Sandstone, Soft Limestone etc.

3

95.2~174.6

3 3/4-6 7/8

245-490

80-40

187.3~311.1

7 3/8- 12 1/4

490-784

80-40

medium

Hard Shale, Limestone, Medium/Hard Sandstone etc.

4

95.2~174.6

3 3/4-6 7/8

294-539

80-60

187.3~241.3

7 3/8-9 1/2

539-833

60-40

medium hard

Hard Dolomite, Limestone, Hard Sandy, Rock etc.

5

95.2~174.6

3 3/4-6 7/8

294-539

80-60

187.3~241.3

7 3/8-9 1/2

539-833

60-40

hard

Sandy, Shale, Quartzite, Hard Dolomite, Hard Sandstone   etc.

6

95.~-174.6

3 3/4-6 7/8

294-539

80-40

187.3-215.9

7 3/8-8 1/2

580-882

60-40

Very hard

Quartzite, Chert, Basalt Granites, Pyrites etc.

7

95.2-174.6

3 3/4-6 7/8

294-539

80-40

Tricone button bits include Steel Tooth (also referred to as milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth ones, but carry a higher cost to manufacture. Both these two groups of Tricone Bits are available with:
(1) Open Bearing or Sealed Bearing
(2) Roller Bearing or Friction Bearing (Journal Bearing)

(3) Gage Protected or Non-Gage Protected, etc

ROSCHEN offers heavy duty tricone roller bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), International Association of Drilling Contractor number (IADC number) and American Petroleum Industry number (API Number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. ROSCHEN can offer tricone bits for all possible combinations of IADC number.

tricone bit


Features:

1. The tricone roller bit working life is according the drilling formation and the drilling rig.

2. Rock formation: Very soft with low compressive strength and high drill ability, such as shale, clay, sandstone and conglomerate, etc.

3. Journal bearing. Hard faced bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.

4. O ring seal is made of the more wear resistant and high saturated buna-N with the increased seal section and precisely designed scaling flange in the cone sealing area has increased the reliability of the seal.

5. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and this provides the bearing system with good assurance of lubrication.

6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel booth bit, the tooth surface is hard faced with new type of wear resistant material and thus has extended working life of the cutting structure while still maintaining high ROP.
