TCI Tricone Bit 8 1/2inch IADC617

Mining TCI Tricone Roller Bit 8-1/2'' IADC617 with Tungsten Carbide Inserts
Roschen' mining tri-cone bit is utilized for blasting hole open pit mining. Depending on the different formations of customers, we can offer different product with IADC from 40 to 80 types,

Quantity:
  • 8-1/2''
  • ROSCHEN
  • ROS-TCI-216

Product Description

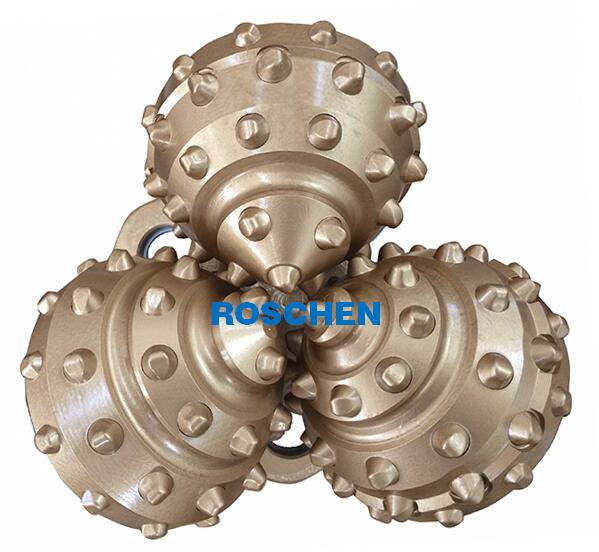

Mining TCI Tricone Roller Bit 8-1/2'' IADC617 with Tungsten Carbide Inserts

Product Description:

Code No.

ROS-TCI-216

Diameter

8 1/2''    / 216mm

Pin Type Dimensions

4 1/2'' API

Teeth Type

TCI

IADC No

617


Mining
TCI Tricone Bit Brief introduction:

Roschen' mining tri-cone bit is utilized for blasting hole open pit mining. Depending on the different formations of customers, we can offer different product with IADC from 40 to 80 types, the sizes ranged from 3 3/8''(85.7mm) to 26”(660.4mm).



Through extensive ongoing Research & Development programs, Roschen incorporates the latest in materials, manufacturing processes, and engineering innovation to continually refine and improve our product line.

Premium bearing designs of our bits have the best bearing configuration to maximize the bearing capacity. Greatly increase the bit service like and the reliability.



Depending on different formation, specially selected carbide grade with the premium cutting structure designs balanced the load taking of the bits, insure the customers will have the best penetration rate in different applications.



Tricone bit include Steel Tooth (also referred to as milled tooth) bits and Tungsten Carbide Insert (TCI) bits, TCI bits are much more durable than Steel Tooth bits, but with a higher cost to manufacture. Both these two groups of Tricone Bits are available with
(1) Open Bearing or Sealed Bearing
(2) Roller Bearing or Friction Bearing (Journal Bearing)

(3) Gage Protected or Non-Gage Protected, etc

Roschen Mining Tricone Bit also can be customized to meet different customer requirements and applications.


Some specifications:

RM Series Mining   Tricones

SERIES

APPLICATION

OPERATING PARAMETERS

Rotating Speed (RPM)

Weight on Bit (lb/in)

RM40

Soft

70-140

1000 to 4000

RM50

Soft to Medium

50-140

2000 to 5000

RM60

Medium to Hard

50-110

3000 to 6000

RM70

Hard

50-90

3500 to 7500

RM80

Extremely Hard

40-80

5000 to 8000



RM Series Available   Sizes

SIZE

PRODUCT CODE

APPLICATION

PIN SIZE

in

mm

6 3/4

171

RM532

Soft to Medium

3 1/2

RM612

Medium to Hard

3 1/2

RM632

Hard

3 1/2

7 7/8

200

RM542

Medium to Hard

4 1/2

RM632

Medium to Hard

4 1/2

8 1/2

216

RM642

Soft to Medium

4 1/2

RM822

Extremely Hard

4 1/2

9

229

RM412

Soft

4 1/2

RM542

Soft to Medium

4 1/2

RM642

Medium to Hard

4 1/2

9 7/8

251

RM412

Soft

6 5/8

RM532

Soft to Medium

6 5/8

RM632

Medium to Hard

6 5/8

RM742

Hard

6 5/8

RM822

Extremely Hard

6 5/8

10 5/8

270

RM412

Soft

6 5/8

RM532

Soft to Medium

6 5/8

RM632

Medium to Hard

6 5/8

RM722

Hard

6 5/8

11

279

RM532

Soft to Medium

6 5/8

RM642

Medium to Hard

6 5/8

12 1/4

311

RM532

Soft to Medium

6 5/8

RM642

Medium to Hard

6 5/8

RM722

Hard

6 5/8

13 3/4

350

RM532

Soft to Medium

6 5/8

RM632

Medium to Hard

6 5/8

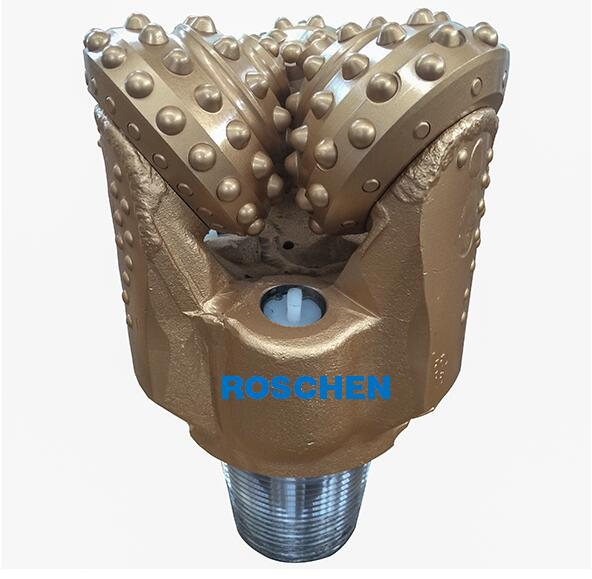

tricone bit IADC617

Features:

1. The TCI tricone roller bit working life is according the drilling formation and the drilling rig.

2. Rock formation: Very soft with low compressive strength and high drill ability, such as shale, clay, sandstone and conglomerate, etc.

3. Journal bearing. Hard faced bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.

4. O ring seal is made of the more wear resistant and high saturated buna-N with the increased seal section and precisely designed scaling flange in the cone sealing area has increased the reliability of the seal.

5. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and this provides the bearing system with good assurance of lubrication.

6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel booth bit, the tooth surface is hard faced with new type of wear resistant material and thus has extended working life of the cutting structure while still maintaining high ROP.
