6inch IADC537
ROSCHEN
ROS-TCI-152
Product Description

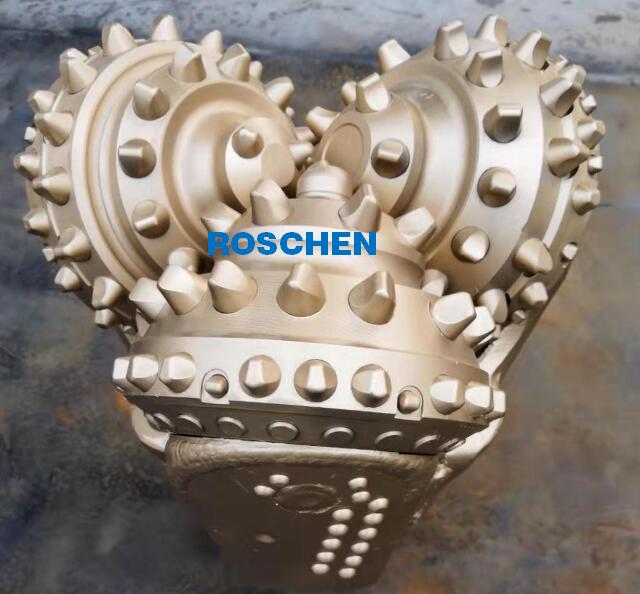

TCI Tricone Bit 6inch IADC537
Product description:
ROSCHEN Bit designed TCI tricones are precision, high-value bits that produces consistent, lowest cost per-foot-drilled results. We offer a wide variety of chisel, conical and spherical shaped tungsten carbide inserts, each uniquely designed for drilling in specific types of rock formations. Available in all circulation types.
ROSCHEN Rock Bit Sealed Journal Bearing TCI Tricones are designed for truly important projects and can withstand vast amounts of wear and tear. The floating bushing acts as a self-lubricant helping to reduce friction, and dissipate heat under heavy load conditions. This means our Journal Bearing Tricones can stand up to extremely prolonged and deep drilling sessions with minimal time spent on maintenance or tending to debris

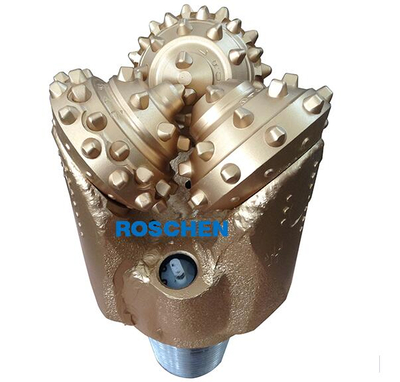

Mining TCI Tricone Roller Bit 6inch IADC537 with Tungsten Carbide Inserts
Code No. | ROS-TCI-152 |
Diameter | 6'' / 152mm |
Pin Type Dimensions | 3 1/2'' API |
Teeth Type | TCI |
IADC No | 537 |
Some specifications:
RM Series Mining Tricones | |||
SERIES | APPLICATION | OPERATING PARAMETERS | |
Rotating Speed (RPM) | Weight on Bit (lb/in) | ||
RM40 | Soft | 70-140 | 1000 to 4000 |
RM50 | Soft to Medium | 50-140 | 2000 to 5000 |
RM60 | Medium to Hard | 50-110 | 3000 to 6000 |
RM70 | Hard | 50-90 | 3500 to 7500 |
RM80 | Extremely Hard | 40-80 | 5000 to 8000 |
RM Series Available Sizes | ||||
SIZE | PRODUCT CODE | APPLICATION | PIN SIZE | |
in | mm | |||
6 3/4 | 171 | RM532 | Soft to Medium | 3 1/2 |
RM612 | Medium to Hard | 3 1/2 | ||
RM632 | Hard | 3 1/2 | ||
7 7/8 | 200 | RM542 | Medium to Hard | 4 1/2 |
RM632 | Medium to Hard | 4 1/2 | ||
8 1/2 | 216 | RM642 | Soft to Medium | 4 1/2 |
RM822 | Extremely Hard | 4 1/2 | ||
9 | 229 | RM412 | Soft | 4 1/2 |
RM542 | Soft to Medium | 4 1/2 | ||
RM642 | Medium to Hard | 4 1/2 | ||
9 7/8 | 251 | RM412 | Soft | 6 5/8 |
RM532 | Soft to Medium | 6 5/8 | ||
RM632 | Medium to Hard | 6 5/8 | ||
RM742 | Hard | 6 5/8 | ||
RM822 | Extremely Hard | 6 5/8 | ||
10 5/8 | 270 | RM412 | Soft | 6 5/8 |
RM532 | Soft to Medium | 6 5/8 | ||
RM632 | Medium to Hard | 6 5/8 | ||
RM722 | Hard | 6 5/8 | ||
11 | 279 | RM532 | Soft to Medium | 6 5/8 |
RM642 | Medium to Hard | 6 5/8 | ||
12 1/4 | 311 | RM532 | Soft to Medium | 6 5/8 |
RM642 | Medium to Hard | 6 5/8 | ||
RM722 | Hard | 6 5/8 | ||
13 3/4 | 350 | RM532 | Soft to Medium | 6 5/8 |
RM632 | Medium to Hard | 6 5/8 |
We have grown to become a leading manufacturer of tricone bit and supplier of high quality drilling tools & equipment, and we are good at designing, manufacturing, and distributing construction industry drilling tools as well as finding custom solutions to complex problems. Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine shop.
