TCI Tricone Bit 12 1/4 inch IADC 742

Roschen' mining tri-cone bit is utilized for blasting hole open pit mining. Depending on the different formations of customers, we can offer different product with IADC from 40 to 80 types, the sizes ranged from 6 3/4" to 16".

Quantity:
  • 12 1/4'' IADC 742
  • ROSCHEN
  • ROS-TCI-311

Product Description


 TCI Tricone Bit 12 1/4” for Mining

Product description:

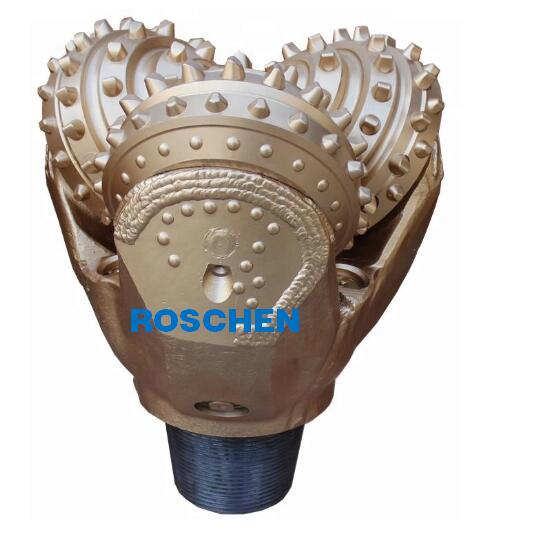

Mining TCI Tricone Roller Bit 12 1/4'' IADC 742 with Tungsten Carbide Inserts

Code No.

ROS-TCI-311

Diameter

12 1/4'' / 311 mm

Pin Type Dimensions

6 5/8'' API

Teeth Type

TCI

IADC No

742

Bearing

 Rubber journal sealed bearings.

Rotary Speed

140~60 RPM

Normal WOB

0.35~0.95 KN/mm

Nozzle NO

3



Mining TCI Tricone Rock drill Bits

Mining TCI Tricone Bit Brief introduction:

Roschen' mining tri-cone bit is utilized for blasting hole open pit mining. Depending on the different formations of customers, we can offer different product with IADC from 40 to 80 types, the sizes ranged from 6 3/4" to 16".

Through extensive ongoing Research & Development programs, Roschen incorporates the latest in materials, manufacturing processes, and engineering innovation to continually refine and improve our product line.

Premium bearing designs of our bits have the best bearing configuration to maximize the bearing capacity. Greatly increase the bit service like and the reliability.

Depending on different formation, specially selected carbide grade with the premium cutting structure designs balanced the load taking of the bits, insure the customers will have the best penetration rate in different applications.

Roschen Mining Tricone Bit also can be customized to meet different customer requirements and applications.



RM Series Mining   Tricones

SERIES

APPLICATION

OPERATING   PARAMETERS

Rotating   Speed (RPM)

Weight   on Bit (lb/in)

RM40

Soft

70-140

1000   to 4000

RM50

Soft   to Medium

50-140

2000   to 5000

RM60

Medium   to Hard

50-110

3000   to 6000

RM70

Hard

50-90

3500   to 7500

RM80

Extremely   Hard

40-80

5000   to 8000



RM Series Available   Sizes

SIZE

PRODUCT   CODE

APPLICATION

PIN   SIZE

in

mm

6   3/4

171

RM532

Soft   to Medium

3   1/2

RM612

Medium   to Hard

3   1/2

RM632

Hard

3   1/2

7   7/8

200

RM542

Medium   to Hard

4   1/2

RM632

Medium   to Hard

4   1/2

8   1/2

216

RM642

Soft   to Medium

4   1/2

RM822

Extremely   Hard

4   1/2

9

229

RM412

Soft

4   1/2

RM542

Soft   to Medium

4   1/2

RM642

Medium   to Hard

4   1/2

9   7/8

251

RM412

Soft

6   5/8

RM532

Soft   to Medium

6   5/8

RM632

Medium   to Hard

6   5/8

RM742

Hard

6   5/8

RM822

Extremely   Hard

6   5/8

10   5/8

270

RM412

Soft

6   5/8

RM532

Soft   to Medium

6   5/8

RM632

Medium   to Hard

6   5/8

RM722

Hard

6   5/8

11

279

RM532

Soft   to Medium

6   5/8

RM642

Medium   to Hard

6   5/8

12   1/4

311

RM532

Soft   to Medium

6   5/8

RM642

Medium   to Hard

6   5/8

RM722

Hard

6   5/8

13   3/4

350

RM532

Soft   to Medium

6   5/8

RM632

Medium   to Hard

6   5/8

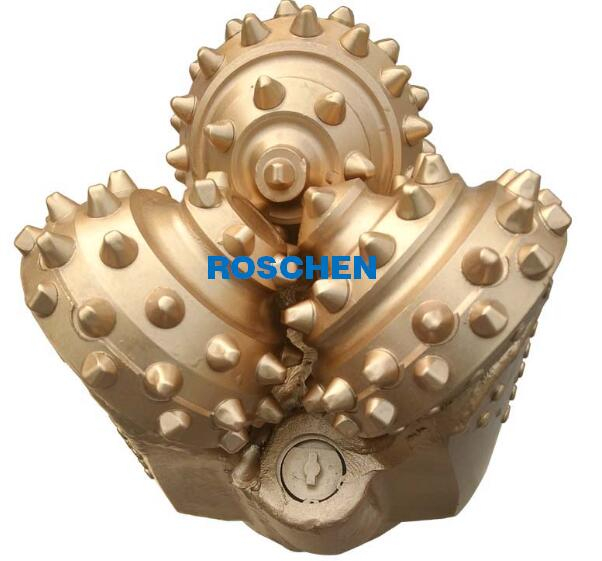

tricone button bit



Features:

1. The tricone roller bit working life is according the drilling formation and the drilling rig.

2. Rock formation: Very soft with low compressive strength and high drill ability, such as shale, clay, sandstone and conglomerate, etc.

3. Journal bearing. Hard faced bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.

4. O ring seal is made of the more wear resistant and high saturated buna-N with the increased seal section and precisely designed scaling flange in the cone sealing area has increased the reliability of the seal.

5. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and this provides the bearing system with good assurance of lubrication.

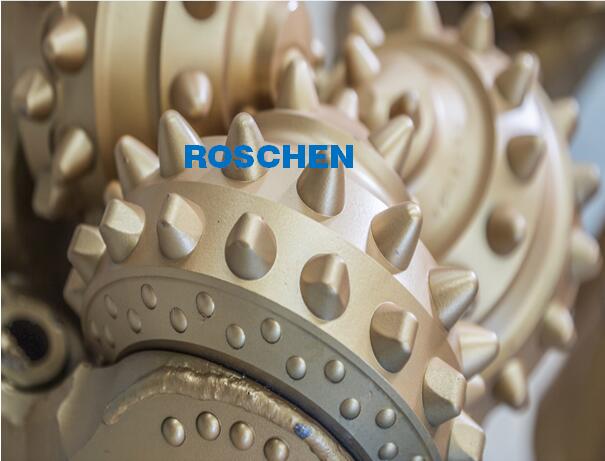

6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel booth bit, the tooth surface is hard faced with new type of wear resistant material and thus has extended working life of the cutting structure while still maintaining high ROP.
