Steel Milled Teeth Tricone Bits 26inch IADC111

Steel Milled Teeth Tricone Bits 26inch IADC111
Tricone drill bits (referred to as the roller bit) are the most widely used drill bits with rotary drills and HDD (horizontal directional drills). The tricone drill bit crushes and eats the rock under the effect of weight on the drill and the rotation of the drill string.

Quantity:
  • 26inch IADC111
  • ROSCHEN
  • ROS-ST-660

Product Description

Steel Milled Teeth Tricone Bits 26inch IADC111


Tricone Bits with Steel Milled Teeth 26inch

Diameter

26inch

Pin type   Dimensions

7 5/8" API

Teeth Type

Steel Milled

IADC Code

111

Tricone drill bits are the most widely used with rotary drills and HDD (horizontal directional drills). The tricone drill bit crushes and eats the rock under the effect of weight on the drill and the rotation of the drill string. At the same time, a certain amount of sliding occurs and the rock is sheared. When the tricone drill bit roll on the bottom of the well, the teeth on the tricone bit impact and press into the formation in sequence. This action can crush a part of the rock at the bottom of the well, and at the same time, the shearing effect caused by the sliding of the tricone drill bit cuts the remaining part of the rock, completely broke the bottom of the well and extended the wellbore.

There are three types of tricone bit:

1.Open or sealed bearings

2.Rolling or friction bearings (sliding bearings)

3.Gauge protection, non-gauge protection, etc.

Rock drilling tools manufacturer ROSCHEN Group Produce a complete line of rotary drilling tools. Tricone bits are available in new and used (re-tip and re-run) steel tooth and tungsten carbide insert, size from 3 3/8''(85.7mm) to 26''(660.4mm) for use in all formations, with any bearing/seal type, and provide a wide range of additional custom features.

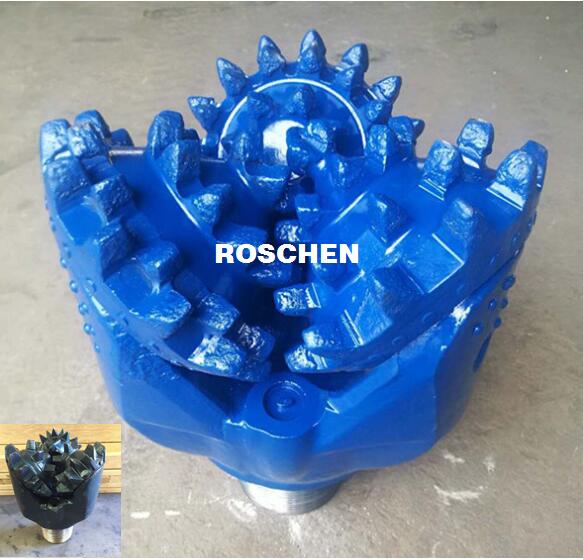

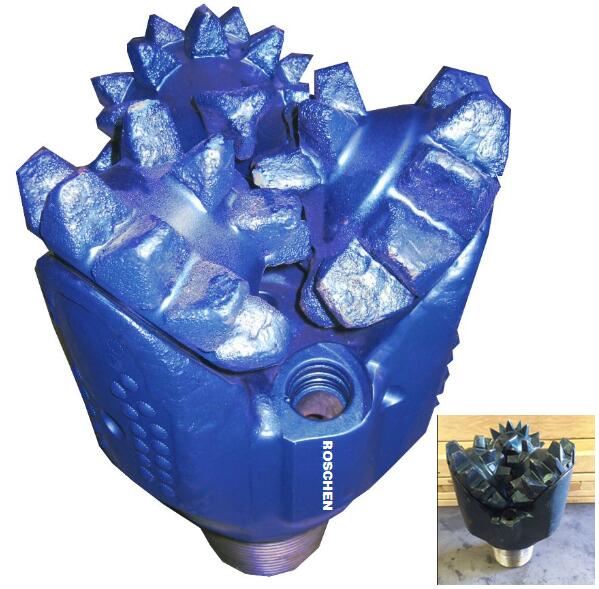

steel mill tooth tricone bit 26inch

ROSCHEN offers heavy duty Steel tricone drill bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), American Petroleum Industry number (API Number) and International Association of Drilling Contractor number (IADC number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. ROSCHEN can offer tricone bits for all possible combinations of IADC number.



ROSCHEN are the manufacturer of tricone bits. Our aim is to provide the highest quality products and the fastest and best service to meet the satisfaction of every customer. If you have any questions or inquiries, please contact us for the best tricone bits.
