13-3/4'' IADC127
ROSCHEN
ROS-ST-349
Product Description

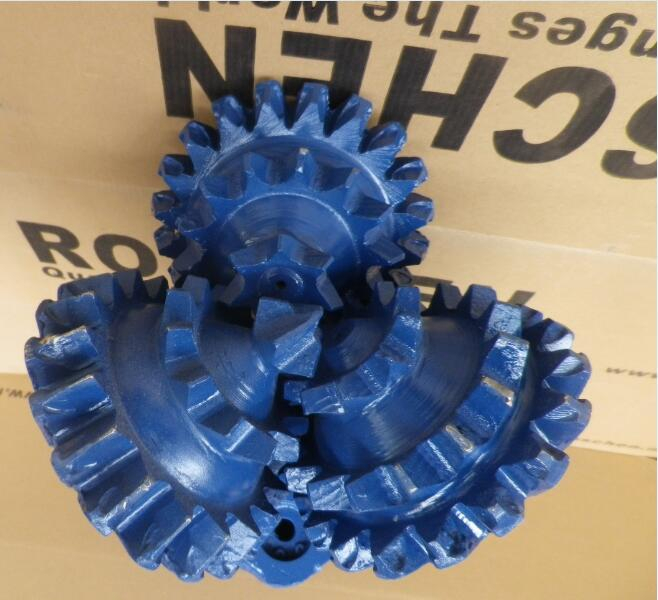

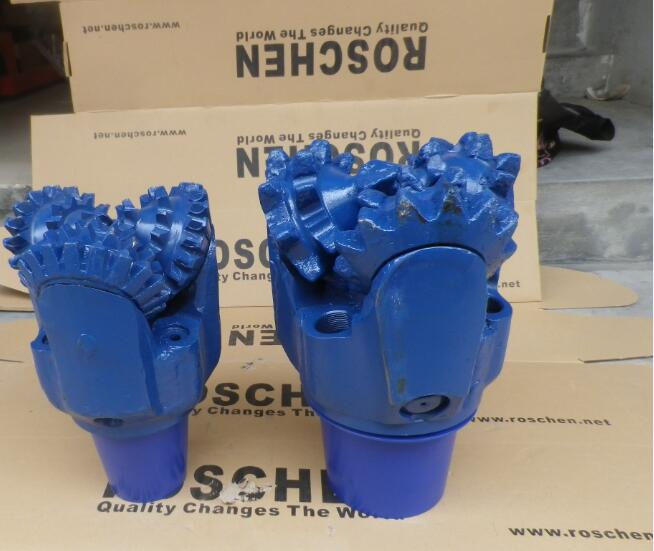

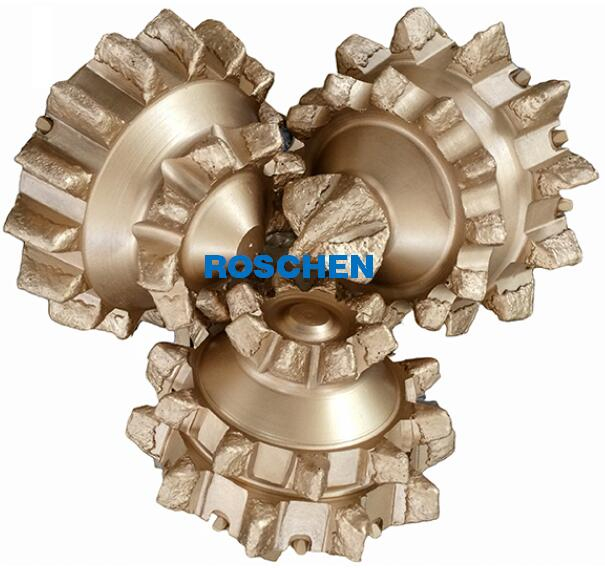

Tricone Bits with Steel Milled Teeth 13-3/4'' IADC127
Product description:
Code No. | ROS-ST-349 |
Diameter | 13 3/4'' / 349mm |
Pin Type Dimensions | 6 5/8'' API |
Teeth Type | Steel Milled |
IADC No | 127 |
Steel milled teeth Tricone drill Bits or steel milled teeth roller cone bits
Rock drilling tools factory / rotary drilling tools manufacture with a complete process line of steel milled teeth tricone drill bit, and our products are available in new steel tooth and tungsten carbide insert, the TCI tricone bit size is from 3 3/8''(85.7mm) to 26''(660.4mm) for all formations, with any bearing/seal type, and a wide range of additional custom features.
Rock formation | Bit type | Bit size | Drilling weight | Rotary speed | ||
mm | inch | kN/mm | r/min | |||
Very soft | Soft Marl, Clays, Sands, Salts etc. | 1 | 187.3~346.1 | 7 3/8~13 5/8 | 441~735 | 120~50 |
soft | Clays, Soft Shale, Marl, Sands, Salts etc. | 2 | 95.2~174.6 | 3 3/4-6 7/8 | 245-490 | 100-50 |
187.3~346.1 | 7 3/8-13 5/8 | 490-784 | 90-40 | |||
Medium soft | Shale, Marl, Sandstone, Soft Limestone etc. | 3 | 95.2~174.6 | 3 3/4-6 7/8 | 245-490 | 80-40 |
187.3~311.1 | 7 3/8- 12 1/4 | 490-784 | 80-40 | |||
medium | Hard Shale, Limestone, Medium/Hard Sandstone etc. | 4 | 95.2~174.6 | 3 3/4-6 7/8 | 294-539 | 80-60 |
187.3~241.3 | 7 3/8-9 1/2 | 539-833 | 60-40 | |||
medium hard | Hard Dolomite, Limestone, Hard Sandy, Rock etc. | 5 | 95.2~174.6 | 3 3/4-6 7/8 | 294-539 | 80-60 |
187.3~241.3 | 7 3/8-9 1/2 | 539-833 | 60-40 | |||
hard | Sandy, Shale, Quartzite, Hard Dolomite, Hard Sandstone etc. | 6 | 95.~-174.6 | 3 3/4-6 7/8 | 294-539 | 80-40 |
187.3-215.9 | 7 3/8-8 1/2 | 580-882 | 60-40 | |||
Very hard | Quartzite, Chert, Basalt Granites, Pyrites etc. | 7 | 95.2-174.6 | 3 3/4-6 7/8 | 294-539 | 80-40 |
ROSCHEN offers heavy duty Steel tricone drill bits to meet your customized drilling needs. We have classified the bits based on their diameter (footprint), International Association of Drilling Contractor number (IADC number) and American Petroleum Industry number (API Number). The IADC number further classifies the tricone bits based on the tooth material of construction, suitability for drilling into soft, medium or hard rock and bearing type used. ROSCHEN offers tricone bits for all possible combinations of IADC number.
