2 3/8", 2-7/8", 2-7/8" IF , 3 1/2" IF
ROSCHEN
ROS-P-2 3/8", 2-7/8", 2-7/8" IF , 3 1/2" IF
Product Description
DTH Drill Rod Drill Pipe API REG Thread 2 3/8", 2-7/8", 2-7/8 IF , 3 1/2" IF
Product Description:

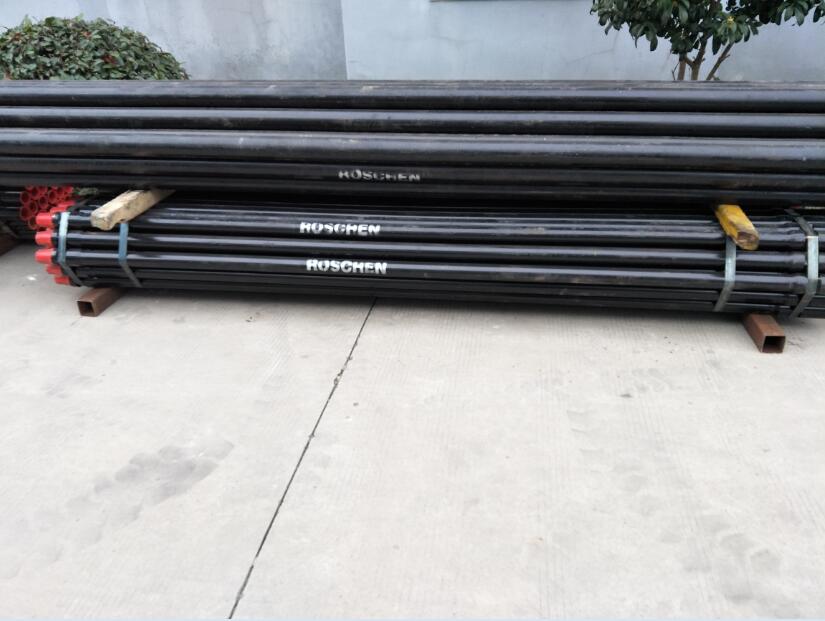

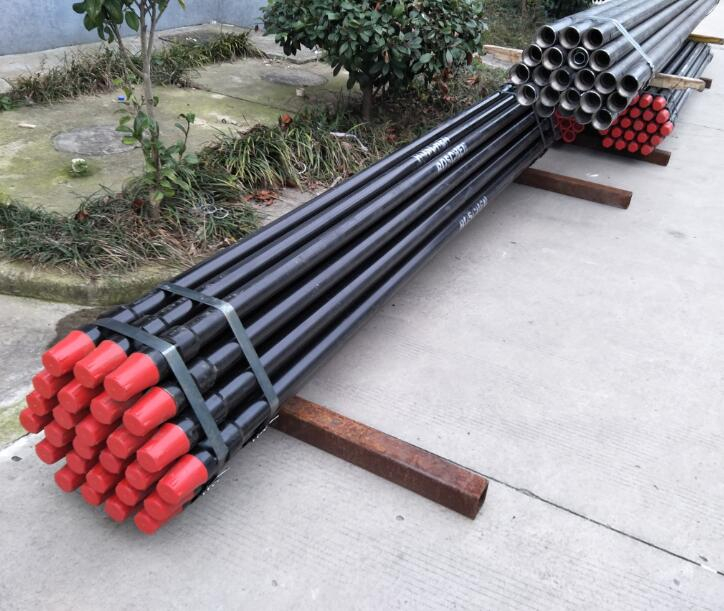

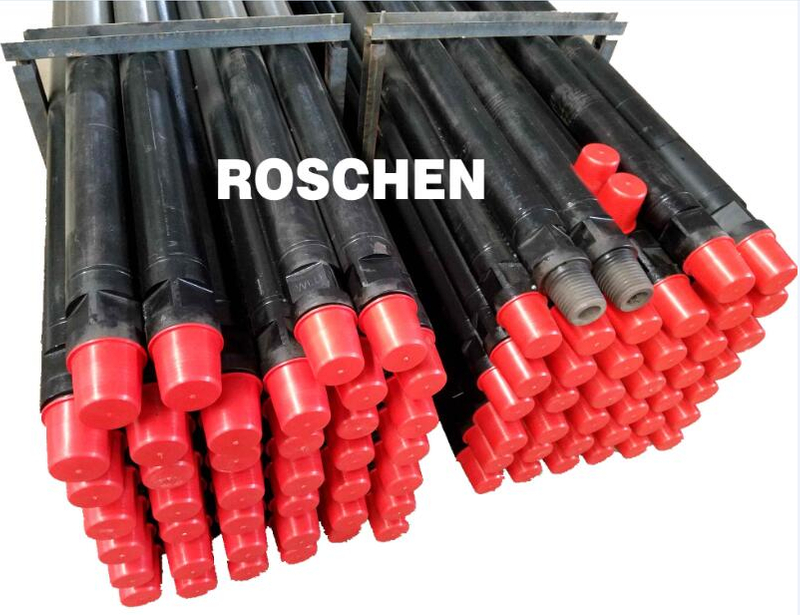

DTH Drill Rod Drill Pipe
Down the hole drill pipes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability. Roschen DTH drill pipes are made of superior alloy and the both thread ends are friction welded to the seamless steel pipe. The high pressure air is delivered to DTH hammer by DTH drill pipe, simultaneously it transfers the rotation and press force to the DTH hammer.
Standard DTH drill pipe:
API Thread Drill Pipe
API Thread Drill Rod
API Reg Thread Drill Pipe
Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm,
Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm;
Thread: 2 3/8" API REG, 2 7/8" API REG, 3 1/2" API REG, 4 1/2" API REG, 2 3/8" API IF, 3 1/2" API IF
DTH drill pipes specifications | ||||
Outer diameter | Thread | Wall thickness | Length | |
mm | inch | |||
76 | 3 | API 2 3/8 REG | 4.0 | 1000-6000 |
89 | 3 1/2 | 4.0 | 1000-6000 | |
102 | 4 | 6.3 | 4000-6000 | |
114 | 4 1/2 | 6.3 | 4000-9000 | |
127 | 5 | 6.3 | 4000-9000 | |
133 | 5 1/4 | 6.3 | 4000-9000 | |
140 | 5 1/2 | 8.8 | 4000-9000 |
Roschen can produce various types of non-excavation drill pipe, water well drill pipe, Exploration Core drilling drill pipe, DTH drill pipe, petroleum drill pipe, geological drill pipe, anchor drill pipe, 100B DTH drill pipe 50 drill pipe friction welding drill pipe, all our drill pipe produced by friction welding.
Drill pipe and drilling tool features:
1. High-precision CNC lathe processing to ensure the tightness of the thread connection;
2. Special heat treatment process to ensure that the connecting thread has sufficient strength and wear resistance;
3. The body of the drill rod and the joint are welded by a friction welding process, and then the intermediate frequency return is used to remove the welding stress to ensure the welding strength and the straightness of the finished drill rod.
4. The drill rod body and joint are made of European and American high-quality raw materials to ensure the superiority of normal construction under harsh conditions.
