RC hammer 5inch RE545

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc. Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.
We adjust button number, button configuration, button diameter to get ultra-performance and reduce the drilling cost for you according to your rock formation situation.

Quantity:
  • 5" RC hammer RE545/PR40
  • ROSCHEN
  • RC-50-545

Product Description

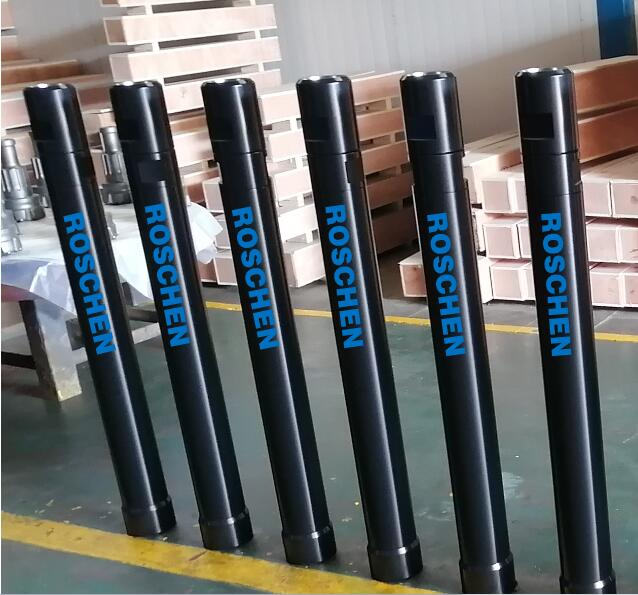

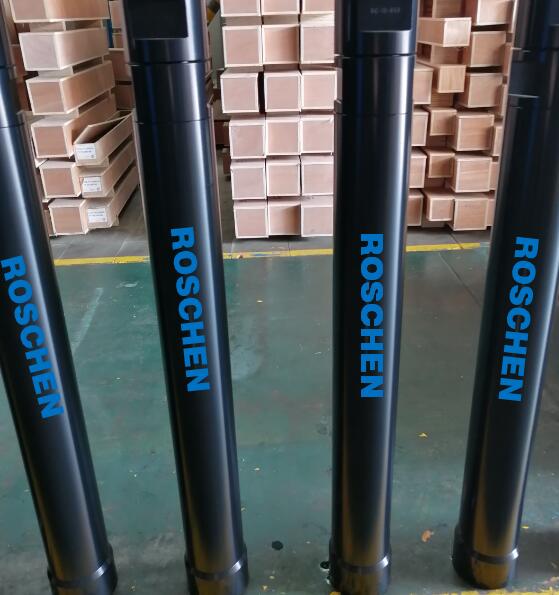

RC hammer 5inch RE545


Product description:



Reverse circulation hammers are specifically designed for all kinds of exploration drilling, like deep hole and in-pit grade control applications. when you are exploring potential sites or working an existing mine, RC hammer will guarantee high performance, exceptional reliability and dependable support.

When breaking a Hammer down, avoid placing breakout tools in the mid-section of the cylinder (barrel). Recommended breakout points are 130mm from each end of the cylinder. Wrap around chain type breakouts are recommended (see diagram). When holding bits for breakout, use a secure plate or pot to grab the bit head, but never on the gauge row buttons.

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc. Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc

Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

We adjust button number, button configuration, button diameter to get ultra-performance and reduce the drilling cost for you according to your rock formation situation.

ROSCHEN RC bits sizes.

- RC bits 86mm -102mm for 3" RC hammer RE531

- RC bits 114mm -127mm for 4" RC hammer RE004

- RC bits 121mm -133mm for 4.5" RC hammer RE542/RE543

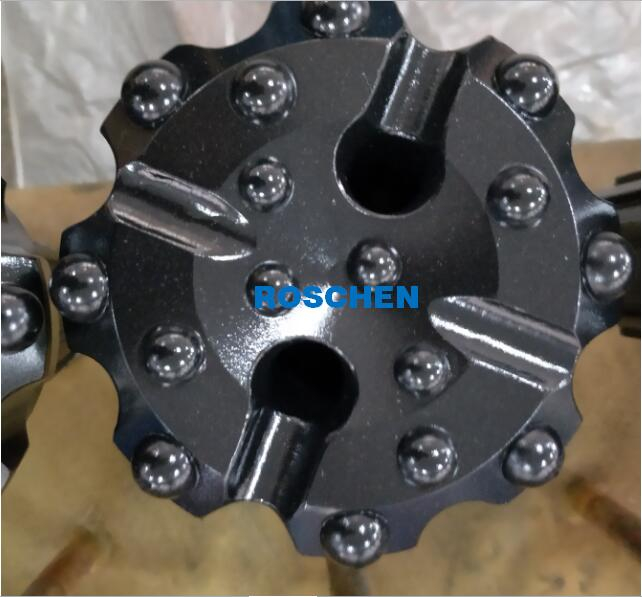

- RC bits 124mm - 138mm for 5" RC hammer RE545/PR40

- RC bits 133mm - 146mm para 5.5" RC hammer PR52/RE547/PR54/MX5456


Lenght(less bit)

Weight(Less bit)

External Dia.

Bit Shank

Hole Range

Connection Thread

1261 mm

65.0 kgs

117.5 mm

RE545

122-135mm

4" - 4.5"   Remet

  4"   - 4.5" Metzke

Working Pressure

Impact Rate at 2.4MPa

Recommended Rotation Speed

Air Consumption

1.7 MPa

2.4 MPa

3.0 MPa

1.5-3.5 MPa

35 Hz

25-40r/min.

16m3/min

22m3/min

28m3/min

RC hammer 5inch structure

RC hammer

Features

1.  Manufactured using premium hardened metals for long life;

2.  Maximum material recovery, up to 98%;

3.  No cross contamination of samples;

4.  Handles injection of water, foam, oil, and polymers without performance loss;

5.  Maximun delivers drilling under water.



ROSCHEN Reverse Circulation line of hammers are used in a wide range of drilling rigs in various geological formations. They are preferred by on-site geologists for their high percentage of uncontaminated sampling; their fast penetration rates; and their trouble-free, low-cost, and long life performance. The pride of workmanship and outstanding engineering make these hammers a superior value. Excellent dependability, service, and support.
