RC hammer 3inch RE531

1. RC bits 86mm -102mm for 3" RC hammer RE531
2. RC bits 114mm -127mm for 4" RC hammer RE004
3. RC bits 121mm -133mm for 4.5" RC hammer RE542/RE543
RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc. Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

Quantity:
  • 3" RC hammer RE531
  • ROSCHEN
  • RC-30

Product Description

 RC hammer 3” RE531


Product description:

RC hammers and bits are used in hole drilling in mines, hydrology and water well, geothermal well, geothermal air conditioning well, geologic exploration, gravel stratum, etc. Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.

Reverse circulation hammers are specifically designed for all kinds of exploration drilling, like deep hole and in-pit grade control applications. when you are exploring potential sites or working an existing mine, RC hammer will guarantee high performance, exceptional reliability and dependable support.

When breaking a Hammer down, avoid placing breakout tools in the mid-section of the cylinder (barrel). Recommended breakout points are 130mm from each end of the cylinder. Wrap around chain type breakouts are recommended (see diagram). When holding bits for breakout, use a secure plate or pot to grab the bit head, but never on the gauge row buttons.Especial suitable for complicated formation (Formation loose, difficult to drilling and unstable of hole wall), exhausting for deep hole, environment protection.


ROSCHEN RC bits sizes.

1.  RC bits 86mm -102mm for 3" RC hammer RE531

2.  RC bits 114mm -127mm for 4" RC hammer RE004

3.  RC bits 121mm -133mm for 4.5" RC hammer RE542/RE543

4.  RC bits 124mm - 138mm for 5" RC hammer RE545/PR40

5. RC bits 133mm - 146mm para 5.5" RC hammer PR52/RE547/PR54/MX5456

We adjust button number, button configuration, button diameter to get ultra-performance and reduce the drilling cost for you according to your rock formation situation.



Features

1.  Manufactured using premium hardened metals for long life;

2.  Maximum material recovery, up to 98%;

3.  No cross contamination of samples;

4.  Handles injection of water, foam, oil, and polymers without performance loss;

5.  Maximun delivers drilling under water.


Specification:

Lenght(less bit)

Weight(Less bit)

External Dia.

Bit Shank

Hole Range

Connection Thread

1069 mm

29.0 kgs

81 mm

RE531

80-100 mm

3" Remet

Working Pressure

Impact Rate at 2.4MPa

Recommended Rotation Speed

Air Consumption

1.7 MPa

2.4 MPa

3.0 MPa

1.0-3.0 MPa

30 Hz

25-40r/min.

7m3/min

10m3/min

14m3/min

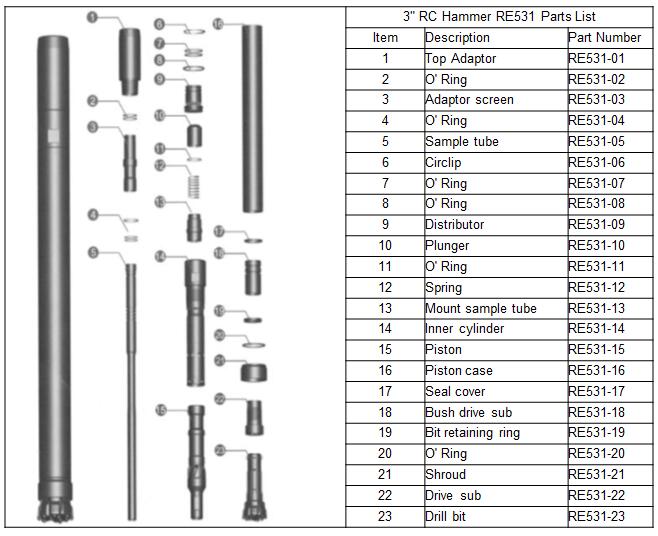

RC hammer 3inch structure

RC hammer RE531
