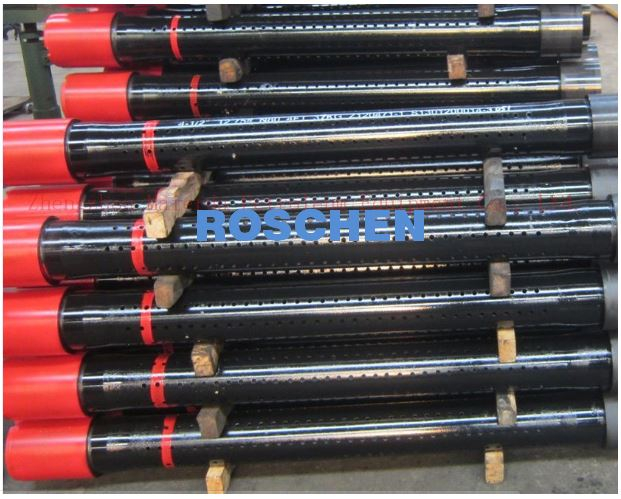

Pup joint 5 1/2inch length of 10 feet each piece

A pup joint is Casing Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement down-hole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.
Availability:
Quantity:
  • Pup joint 5 1/2inch
  • ROSCHEN
  • ROS-PJ-5 1/2

Product Description


Pup joint 5 1/2inch length of 5 feet each piece


Connections to meet the most demanding drilling requirements.

Tubing Pup   Joint Specifications

Outside   Diameter

1.05 ~ 4-1/2   in (26.67 ~ 114.3 mm) nominal size OD

Weight

Standard or   Heavy Wall

Length

2, 3, 4, 5, 6,   8, 10, 12 ft (with other lengths available upon request)

Grade

H40, J55, L80,   N80/Q, C90, T95, P110

Connection

EUE, NUE

Standard

API 5CT, API   5B



Casing Pup   Joint Specifications

Outside   Diameter

4-1/2 ~ 20 in   (114.3 ~ 508 mm) nominal size OD

Weight

Standard or   Heavy Wall

Length

2, 3, 4, 5, 6,   8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request)

Grade

H40, J55, K55,   L80, N80/Q, C90, T95, P110, Q125

Connection

BTC, STC, LTC

Standard

API 5CT, API   5B

 PUP JOINT SHAPE

A pup joint is Casing, Pipe or Tubing shorter in length than a standard tubular string. This allows for the adjustment and installation of tools and various tubular components when placement downhole is critical for a specific project. A Spacer Pipe is another reference used to identify pup joints. Pup joint features consist of connections, lengths, weights and material grade.


They are available in standard lengths of 5’, 10’, 15’ and 20’ with other configurations upon request.


Integral Pup Joints dedicated to Sour Service applications are available. PJ -110 PUP S are Sour Service Pup Joint using ASCOWELL C material providing improved resistance to Sulfide Stress Cracking with high yield strength.



We can offers a wide range drill string products and accessories with standard API or proprietary high performance
