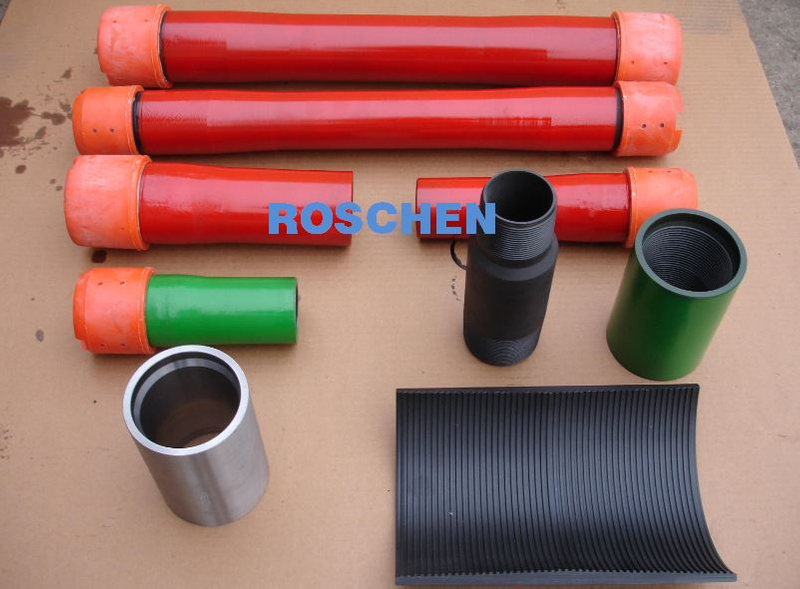

Pup joint 4 1/2inch Length of 10 feet each piece

Tubing Pup Joints:
•Sizes: 2 ⅜” – 4 ½”
•Weight: Standard or Requested Weights
•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12’ (other lengths available upon request)
•Grades: J-55, N-80, L-80, P-110
•Connections EU (external-upset) and NU (non-upset)
•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request
Availability:
Quantity:
  • Pup joint 4 1/2"
  • ROSCHEN
  • ROS-PJ- 4 1/2

Product Description


Pup joint 4 1/2”,  length of 10 feet each piece



We can offers a wide range drill string products and accessories with standard API or proprietary high performance

connections to meet the most demanding drilling requirements.


Tubing Pup Joints:

•Sizes: 2 ⅜” – 4 ½”

•Weight: Standard or Requested Weights

•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12’ (other lengths available upon request)

•Grades: J-55, N-80, L-80, P-110

•Connections EU (external-upset) and NU (non-upset)

•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request



Casing Pup Joints:

•Outside Diameter: 4 ½” – 13 3/8”

•All weights available

•Typical Lengths: 1, 2, 3, 4, 6, 8, 10, 12’ (other lengths available upon request)

•Grades: H40, J55, K55, N80, L80 T95, C110, P110, Q125

•Connections: SC, LC, BC, Semi Premium, and Premium

•Options: Custom Sizes, Markings, Paint, Plating, and Inspection available on request



Popular size:

Tubing Pup Joint   Specifications

Outside   Diameter

1.05 ~ 4-1/2   in (26.67 ~ 114.3 mm) nominal size OD

Weight

Standard or   Heavy Wall

Length

2, 3, 4, 5, 6,   8, 10, 12 ft (with other lengths available upon request)

Grade

H40, J55, L80,   N80/Q, C90, T95, P110

Connection

EUE, NUE

Standard

API 5CT, API   5B



Casing Pup   Joint Specifications

Outside   Diameter

4-1/2 ~ 20 in   (114.3 ~ 508 mm) nominal size OD

Weight

Standard or   Heavy Wall

Length

2, 3, 4, 5, 6,   8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request)

Grade

H40, J55, K55,   L80, N80/Q, C90, T95, P110, Q125

Connection

BTC, STC, LTC

Standard

API 5CT, API   5B

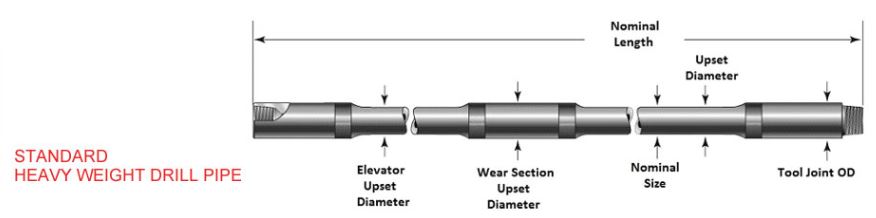

 pup joint structure

 Pup Joint Options:

•Pin x Pin

•Pin x Pin with Couplings Loose

•Coupling Box x Pin with Couplings Hand Tight

•Coupling Box x Pin with Couplings Bucked-On



Pup Joints are manufactured from AISI 4145H or 4140H-modified alloy, heat-treated to Hardness range of 285-341 with a Charpy “V” notch minimum impact strength of 40 ft/lb at 70° F and one inch below the surface. Pup Joints are heat-treated to 110,000 PSI minimum yield. All connections are phosphate coated to impede galling during initial make-up.
