PDC Drill Bits 12 1/4inch

The 12 1/4inch is a matrix body PDC bit with 6 curved blade with back-reaming and spiral gauge protection. Optimized Hydraulic design and enhanced clearing and cooling effects of the bits to prevent bit from balling.
Availability:
Quantity:

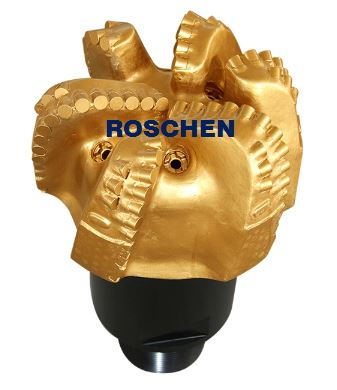

PDC Drill Bits 12 1/4inch

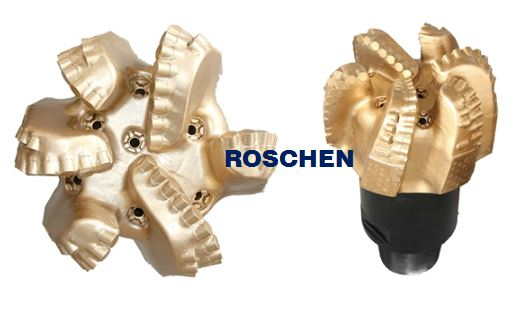

PDC Drill Bits 12 1/4inch
PDC Drill Bits 12 1/4inch
  • 12 1/4inch 6B

  • ROSCHEN

  • ROS-PDC-12 1/4 6B

Product Description

PDC Drill Bits 12 1/4inch



Products Speification


                                          Number of Blades

   6

                                        Primary Cutter Size

  16mm

                                                     Nozzle   Qty.

   7NZ

                                                Gauge Length

   3 Inch

Operating Parameters


                                                    RPM (r/min)

   80~250

                                                         WOB(KN)

   30~140

                                               Flow Rate (lps)

   28~70



Features

The 12 1/4inch is a matrix body PDC bit with 6 curved blade with back-reaming and spiral gauge protection. Optimized Hydraulic design and enhanced clearing and cooling effects of the bits to prevent bit from balling.



PDC DRILL BITS - STANDARD CONNECTION SIZES



We make some of the most nimble and compact PDC drill bits in the industry. In addition to our complement of surface and drill-out bits, we manufacture and supply the most preferred curve, build and lateral PDC drill bits of experienced directional drillers across the continent.



BIT SIZE(INCH) API REGULAR PIN(INCH) RECOMMENDED MAKE UP TORQUE(KN.M)
4 1/2 to 4 3/4 2 7/8 API 6.0~7.5
5 1/8 to 7 3/8 3 1/8 API 9.5~12
7 1/2 to 9 3/8 4 1/2 API 16.0~22
9 1/2 to 14 1/2 6 5/8 API 38~43
14 5/8 to 17 1/2 7 5/8 API 46~54

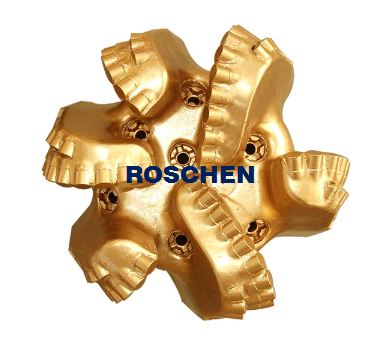

PDC Bits

Steel Body PDC Bit

1. PDC Steel Body Bit

Type and Features

PDC bit can be customized for oil well,water well,   mining, explorer well drilling.

Suitable Formation

Various of hardness rocks or mud except the hardest   hardness or ununiform rocks like cobble.

Main Type

Bit Diameters: 5 7/8",6",6 1/2",8   1/2",9 1/2",9 5/8",9 7/8",12 1/4", etc.

Body Type: Matrix or Steel

Cutter   Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc.

Blades:2~9 Wings.

2. PDC Steel Body Core Bit

Type and Features

PDC core bit can be customized for oil well, water   well, mining, explorer well drilling.

Suitable Formation

Various of hardness rocks or mud except the hardest   hardness or ununiform rocks like cobble.

Main Type

75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc.



Application

Soft to medium-hard formations with low compressive strength interbedded with hard layer , such as claystone, marl, lignite, sandstone, anhydrite, tuff, etc.



Application industry



Oil/Gas Well Drilling   .Water Well Drilling   .HDD(Trenchless)   .Foundation Piling
