PD680-165 DTH Drill Hammer Bit

Rock drill bits Shank type: PD680; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).
Our DTH hammer and bits are compatible with CIR, DHD, QL,SD, Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. They are with high efficiency, low failure rate and long service life, which can realize efficient and economical drilling even for all kinds of high hardness, high abrasive rocks and other harsh conditions.

Quantity:
  • PD680-165
  • ROSCHEN
  • ROS-PD680-165

Product Description

DTH Drill Hammer Bit PD680-165


Rock drill bits Shank type: PD680; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).


CODE NO.

PD680-165

Diameter

165mm

air holes

3

gauge buttons

9

front buttons

9

face design

flat

carbide design

 Dome

Shank Type

PD680

Our DTH hammer and bits are compatible with CIR, DHD, QL,SD, Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. They are with high efficiency, low failure rate and long service life, which can realize efficient and economical drilling even for all kinds of high hardness, high abrasive rocks and other harsh conditions.

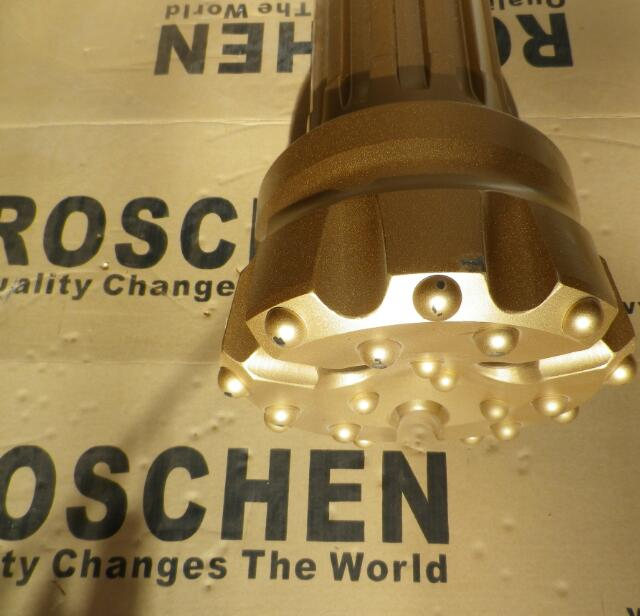

 DTH BIT PD680 165

All the ROSCHEN products have passed ISO9001 quality management system, they are widely used in open pit mining, tunneling, quarrying, transportation construction, engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc. We are one of the companies which have the most complete product lines, the most abundant species and the most widely used products in drilling industry.



ROSCHEN is rock drill bits manufacturer, and we introduces new shank design for DTH hammer bit: PD shank. To match with our own designed Hammer.



PD shank Down The Hole Drill Bits are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable applications for water well drilling, stone quarrying, mining as well as construction.



Flat Face

An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.



Dome/Hemispherical Buttons

Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

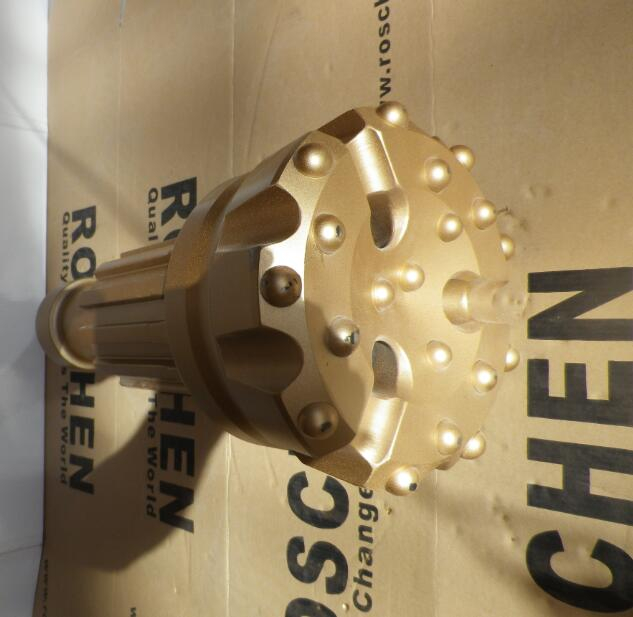

PD shank DTH drill bit with 165mm diameter, flat face, dome carbide buttons for blasting bore holes, water well drilling.


Dth Hammer Drilling Tools Specifications:



ROSCHEN   DTH Hammers Specifications


Hammer   Size

Bit   Shank

ROSCHEN   Code

Connection   Thread

Suitable   bit

Working   pressure

Air   consumption



2"

BR2

ROS   11

ROS   22

RD50   box

70-90mm

0.7-1.75Mpa

0.7Mpa

4.5m3/min


1.0Mpa

4m3/min


1.4Mpa

5m3/min


3"

DHD3.5

ROS   32

API   2 3/8" Reg

90-110mm

1.0-1.5Mpa

1.0Mpa

4.5m3/min


COP32/COP34


M30

1.5Mpa

9m3/min


4"

DHD340

ROS   34

API   2 3/8" Reg

110-135mm

1.0-2.5Mpa

1.0Mpa

6m3/min


COP44


QL40


SD4

1.8Mpa

10m3/min


M40

2.4Mpa

15m3/min


5"

DHD350

ROS   52

ROS   54

API   2 3/8"Reg/API 3 1/2" Reg

135-155mm

1.0-2.5Mpa

1.0Mpa

9m3/min


COP54


QL50


SD5

1.8Mpa

15m3/min


M50

2.4Mpa

23m3/min


6"

DHD360

ROS   62

ROS   64

API   3 1/2" Reg

155-190mm

1.0-2.5Mpa

1.0Mpa

10m3/min


COP64


QL60


SD6

1.8Mpa

20m3/min


M60

2.4Mpa

28.5m3/min


8"

DHD380

ROS   82

ROS   84

API   4 1/2" Reg

195-254mm

1.0-2.5Mpa

1.0Mpa

15m3/min


COP84


QL80

1.8Mpa

26m3/min


SD8

2.4Mpa

34m3/min


M80/M85


10"

SD10

ROS   100

API   6 5/8" Reg

254-311mm

1.0-2.5Mpa

1.0Mpa

22m3/min


Numa100

1.8Mpa

40m3/min


ROS   100

2.4Mpa

55m3/min


12"

DHD1120

ROS   120

API   6 5/8" Reg

305-445mm

1.0-2.5Mpa

1.0Mpa

30m3/min


SD12

1.8Mpa

56m3/min


Numa120

2.4Mpa

78m3/min


Notes:   Any special size of DTH bits will be available by requests.


Metzke,   Remet thread is available!
