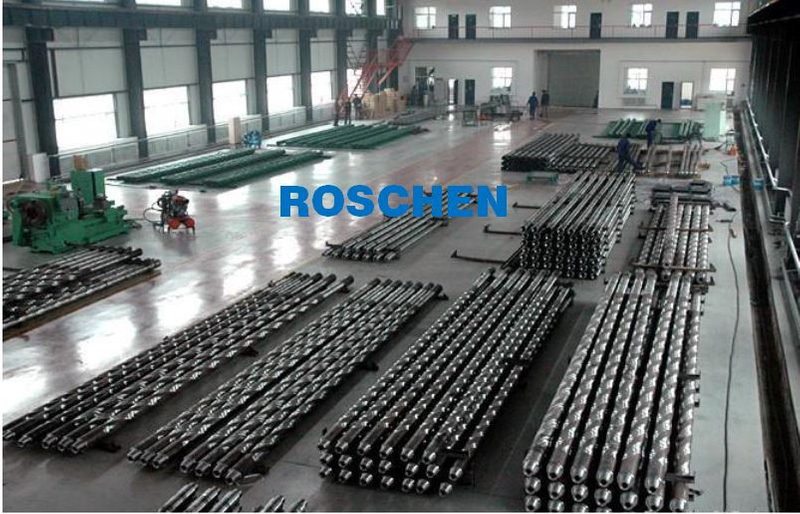

Non-Magnetic Spiral Drill Collars 8.25inch 9.5inch

Spiral drill collars
These collars are machined with spiral grooves throughout their length to help minimize wall contact, which dramatically reduces the risk of sticking during operations.

Steel and Non-Mag drill collars
Our non-magnetic drilling collars are typically made slick, but can be spiral-machined as needed. These collars are often used in directional drilling applications to avoid interference.
Availability:
Quantity:
  • Non-Magnetic Spiral Drill Collars 8.25inch 9.5inch
  • ROSCHEN
  • ROS-DC-NMS 8.25,9.5

Product Description


Non-Magnetic Spiral Drill Collars 8.25inch 9.5inch


Spiral drill collars

These collars are machined with spiral grooves throughout their length to help minimize wall contact, which dramatically reduces the risk of sticking during operations.



Steel and Non-Mag drill collars

Our non-magnetic drilling collars are typically made slick, but can be spiral-machined as needed. These collars are often used in directional drilling applications to avoid interference.



Non-magnetic drill collars

 NMDCs are generally flush (non-spiral). They are manufactured from high-quality, corrosion-resistant, stainless steel. They are used while running the magnetic survey instruments to be located in a NMDC of sufficient length to allow the measurement of the earth's magnetic field without magnetic interference. Survey instruments are isolated from magnetic disturbance caused by other steel components in the BHA.


Drill Collars in Drilling Application

Drill collars play a vital role in drilling process. Due to the structural features, drill collars can provide weight for drilling purpose, which is drill collar’s one and foremost specialty. Gravity works on a number of drill collars to offer enough downward force needed to break rocks with the drill bit.

Apart from providing weight on the bit (WOB), drill collars also work as a shock absorber to dampen the vibration and shaking when drilling takes place. In this way, the drilling process can be carried out in a much steadier state.

Thirdly, the presence of the drill collars allows the pipelines to stay in the tensile state, while guarantees the rigidity of the drill string under great compression. Thus, the drill efficiency and quality are greatly improved.

In addition to the above applications, drill collars can help to control the direction of the bottom hole assembly, avoiding the problem of hole deviation and enhancing the performance of drilling.

Non-magnetic Spiral Drill Collar 6.750” NC50

Specification


Tool   Joint/Connection Specifications

Nominal OD

6   3/4"(6.75")

Connection

NC50

Bend Stress   Ratio


Nominal ID

2.7/8"(2.875")

OD

6 3/4"   (6.75")

ID

2   7/8"(2.875")

Material Grade

P530

Adjusted Weight


Average Length

31.00 ft

Grain Size

ASTM

Recommended Make   Up Torque


Maximum Make Up Torque


Magnetic   Permeability

1.001max

Slip Recess

N/A

Elevator Recess

N/A

Drift Size

3   1/8"(3.125")

Fluid   Displacement


Fluid capacity


Hardbanding

None

Inspection   Criteria

NS-2

Elongation

18%

IPC

None


Chemical   Properties

Phosphorus   <0.05%

Sulphur   <0.03%

Manufacturing   Criteria

API Spec7-1

Drill Collar   Capacities

Tensile Strength

120,000 psi   Minimum

827 Mpa

Yield Strength

110,000 psi   Minimum

758 Mpa

Impact Strength

Above 60J

Hardness(Brinell)

Minimum 285 BHN



Non-magnetic Spiral Drill Collar 8.250” 6 5/8” Reg

Specification


Tool   Joint/Connection Specifications

Nominal OD

8   1/4"(8.25")


Connection

6 5/8" REG

Bend Stress   Ratio


Nominal ID

2   13/16"(2.8125")


OD

8 1/4"   (8.25")

ID

2 13/16"   (2.8125")

Material Grade

P530


Adjusted Weight


Average Length

31.00 ft

Grain Size

ASTM


Recommended Make   Up Torque


Maximum Make Up   Torque


Magnetic   Permeability

1.001max


Slip Recess

N/A

Elevator Recess

N/A

Drift Size

2   11/16"(2.6875")


Fluid   Displacement


Fluid capacity


Hardbanding

None


Inspection   Criteria

NS-2

Elongation

20%

IPC

None


Chemical   Properties

Phosphorus   <0.05%

Sulphur   <0.03%

Manufacturing   Criteria

API Spec7-1

Drill Collar   Capacities

Tensile Strength

100,000 psi   Minimum

689 Mpa

Yield Strength

110,000 psi   Minimum

758 Mpa

Impact Strength

Above 60J

Hardness(Brinell)

Minimum 285 BHN



Non-magnetic Spiral Drill Collar 9.500” 7 5/8” Reg

Specification


Tool   Joint/Connection Specifications

Nominal OD

9   1/2"(9.5")


Connection

7 5/8" REG

Bend Stress   Ratio


Nominal ID

3"(3")


OD

9 1/2"   (9.5")

ID

3"   (3")

Material Grade

P530


Adjusted Weight


Average Length

31.00 ft

Grain Size

ASTM


Recommended Make   Up Torque


Maximum Make Up   Torque


Magnetic   Permeability

1.001max


Slip Recess

N/A

Elevator Recess

N/A

Drift Size

2   7/8"(2.875")


Fluid   Displacement


Fluid capacity


Hardbanding

None


Inspection   Criteria

NS-2

Elongation

20%

IPC

None


Chemical   Properties

Phosphorus   <0.05%

Sulphur   <0.03%

Manufacturing   Criteria

API Spec7-1

Drill Collar   Capacities

Tensile Strength

110,000 psi   Minimum

758 Mpa

Yield Strength

100,000 psi   Minimum

689 Mpa

Impact Strength

Above 60J

Hardness(Brinell)

Minimum 285 BHN

Drill Collar Classification



Drill collars can be simply put into three categories according to their structure and material, namely the slick drill collar, the spiral grooved drill collar and the non-magnetic drill collar.


The slick drill collar is normally a smooth thicked-wall tube, with a thickness in the range of 38 to 53, about 4 to 8 times of that of the drill pipes. It is machined into a uniform cylindrical shape and made up of plain alloy steel.


The non-magnetic drill collar is manufactured from the non-magnetic alloy steel. As the magnetic measuring instruments can sense the geomagnetic field when measuring the direction of the borehole, the instruments must be kept working in a non-magnetic environment. However, in drilling process, the magnetic rigs always affect the accuracy of the measuring instrument. Therefore, the utilization of a non-magnetic drill collar can ensure a more reliable measuring result.


The spiral grooved drill collar is also machined from plain alloy steel, but it is normally lighter by 4 to 6 percent than the slicker drill collar. This kind of drill collar is widely used nowadays because the special spiral design largely hold back of the possibility of sticking accidents by reducing the area of contact between the wall and the collar.
