2-3/8", 2-7/8"
ROSCHEN
ROS-MP-2 3/8", 2-7/8", ...
Product Description

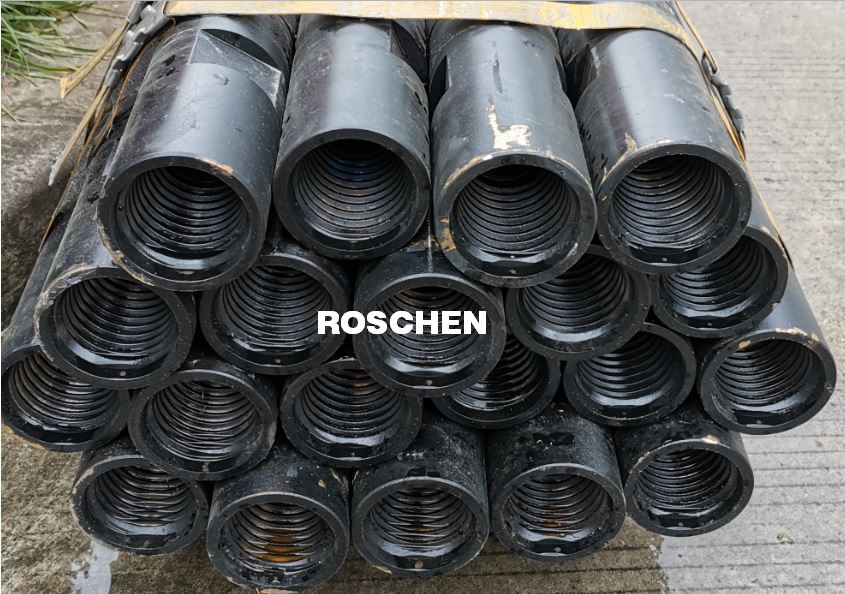

Mayhew junior (jr) 2 3/8 drill pipe of factory supply low price
Specification:

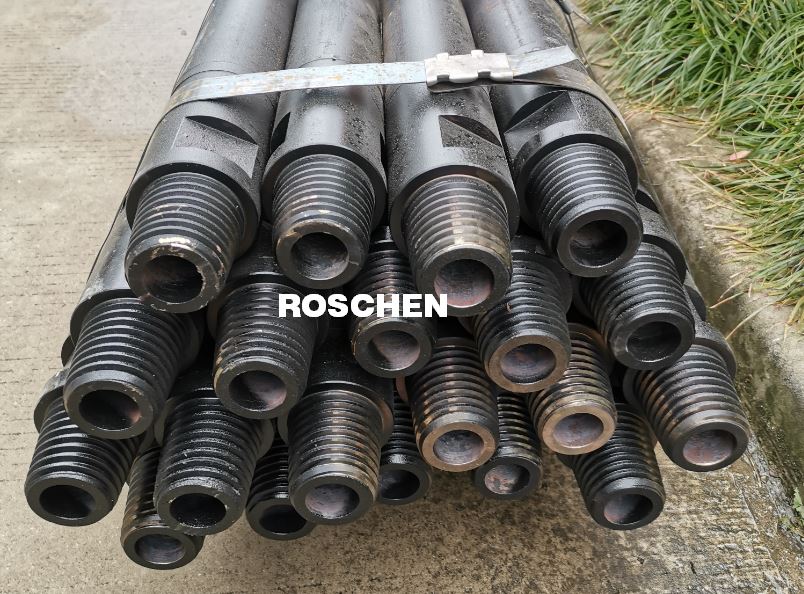

Product: Mayhew junior Friction Welded drill rods, dth drill pipe
1, Size: 2-3/8"(60mm)---5" (127mm)
2, Steel grade: E75 X95 G105 S135
3, Tool connection: 2-3/8" API Reg pin & box,2-7/8"IF,3-1/2"IF, 4"FH,mayhew jr 2 3/8......
Others Mayhew Junior Rods spec:
Mayhew Junior Rods Specifications | |||||
Description | Pipe OD | Pipe Wall | Connection OD | Connection ID | Length(ft) |
2-3/8 IF Flush | 3 1/2 | 0.375 | 3 1/2 | 1 3/4 | 20 |
2-3/8 IF | 2 3/8 | 1.102 | 3 1/2 | 1 3/4 | 10, 15, 20 |
2-3/8 FEDP | 2 3/8 | 1.102 | 3 1/8 | 1 1/2 | 10, 15, 20 |
2-3/8 Mayhew Jr | 2 3/8 | 1.102 | 3 | 1 1/2 | 10, 15, 20 |
2-3/8 Mayhew Jr | 2 3/8 | 0.190 | 2 3/4 | 1 1/2 | 5, 10 |
2-7/8 Mayhew Jr Pipe Flush | 2 7/8 | 0.362 | 2 7/8 | 1 1/2 | 10, 15, 20 |
Mayhew Reg. Flush | 3 1/2 | 0.375 | 3 1/2 | 1 1/2 | 20 |
Mayhew Reg. | 2 3/8 | 1.102 | 3 1/2 or 3 1/4 | 1 1/2 | 10, 15, 20 |
2-7/8 IF | 4 1/2 | 0.337 | 4 1/8 | 2 1/2 | 10, 15, 20 |
3-1/2 IF | 5 1/2 | 0.362 | 4 3/4 | 2 11/16 | 10, 15, 20 |
3-1/2 API Reg Flush | 4 1/2 | 0.337 | 4 1/2 | 1 1/2 | 10, 15, 20 |
4-1/2 API Reg Flush | 5 1/2 | 0.757 | 5 1/2 | 2 1/4 | 10, 15, 20 |
AWJ/AW w/Flats | 1 3/4 | 0.752 | 1 3/4 | 5/8 | 5,10 |
NWJ/NW w/Flats | 2 5/8 | 0.752 | 2 5/8 | 1-1/4 or 1-3/8 | 5,10 |
Name | A | B | C | D | E | F | G | H |
TOOL JOINTS:1 | ||||||||
2 3/8 API Regular | 2-3/8" | 3-1/8" | 2-5/8" | 3 | 5 | 3 | 60° API | 1 |
2 7/8 API Regular | 2-7/8" | 3 3/4 | 3 | 3 1/2 | 5 | 3 | 60° API | 1 1/4 |
3 1/2 API Regular | 3 1/2 | 4 1/4 | 3 1/2 | 3 3/4 | 5 | 3 | 60° API | 1 1/2 |
4 1/2 API Regular | 4 1/2 | 5 1/2 | 4-5/8" | 4 1/4 | 5 | 3 | 60° API | 1 1/4 |
2 3/8 API Internal Flush | 2-3/8" | 3-3/8" | 2-7/8" | 3 | 4 | 2 | 60° API | 1 3/4 |
2 7/8 API Internal Flush | 2-7/8" | 4-1/8" | 3 25/64 | 3 1/2 | 4 | 2 | 60° API | 2-1/8" |
3 1/2 API Internal Flush | 3 1/2 | 4 3/4 | 4 1/64 | 4 | 4 | 2 | 60° API | 2 11/16 |
2 3/8 Mayhew Junior | 2-3/8" | 2 3/4 | 2 21/64 | 2 1/4 | 4 | 2 | 60° Mod. API | 1 1/2 |
2 3/8 Mayhew Regular | 2-3/8" | 3 1/4 | 2 35/64 | 3 | 4 | 1 1/2 | 60° Mod. API | 1-5/8" |
2 7/8 Mayhew Full Hole | 2-7/8" | 3 3/4 | 3 3/64 | 3-3/8" | 4 | 1 1/2 | 60° Mod. API | 2 |
2 3/8 Failing Exploration | 2-3/8" | 2 31/32 | 2 1/2 | 2 3/4 | 4 | 2 | 60° Mod. API | 1 1/2 |
2 7/8 Failing Exploration | 2-7/8" | 3 3/4 | 3-1/8" | 3 1/4 | 4 | 2 | 60° Mod. API | 1-7/8" |
2 3/8 Hughes Acme Regular | 2-3/8" | 3-1/8" | 219/32 | 3 | 4 | 3-3/8" | 29° Acme | 1 |
2 3/8 Winter Weiss | 2-3/8" | 3 1/4 | 235/64 | 3 | 4 | 1 1/2 | 60° Mod. API | 1 1/2 |
2 7/8 Winter Weiss | 2-7/8" | 37/16 | 235/64 | 3 | 4 | 1 1/2 | 60° Mod. API | 1 1/2 |
3 1/2 API Full Hole | 3 1/2 | 4-5/8" | 4 | 3 3/4 | 5 | 3 | 60° Mod. API | 27/16 |
FLUSH JOINT TAPERED THREAD | ||||||||
United Geophysical (1 11/16 OD) | 111/16 | 111/16 | 1-3/8" | 1 | 6 | 3 | 29° Acme | 1 |
Packaging & Shipping

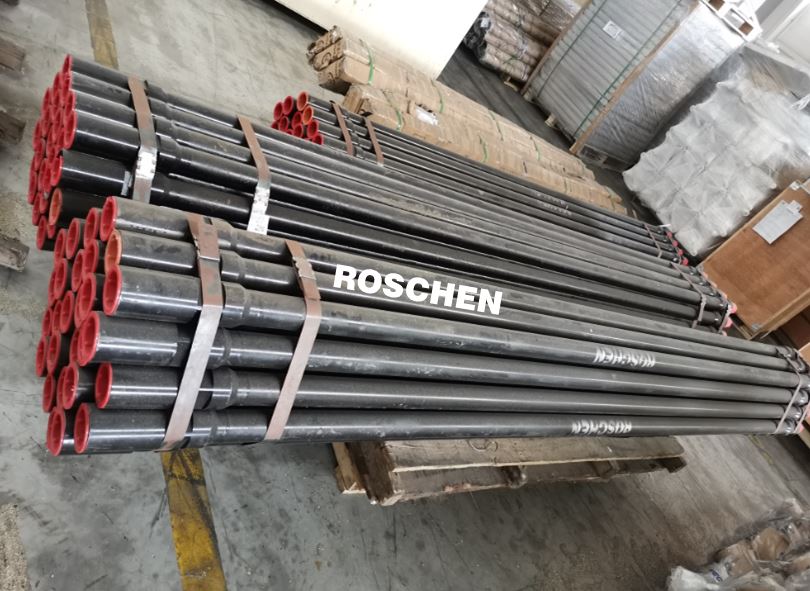

1. The drill pipes will be packed into bundles as 3x3, 3x4, 4x4 etc. and loading into containers after black painting and thread protectors installation.
2. For 20’ container, the max loading weight is 21 metric tons
3. For 40’ container, the max loading weight is 27 metric tons
Usage Note:
New drill pipe should be pasted thread oil before connection
Make up and break at least 3 times before drilling
3. Hard bending and plastic coating can be processed according to clients’ special requirements
