Impregnated Diamond Core Bit BQ with standard crown

PQ HQ NQ BQ Impregnated Diamond Core Bit with standard crown
Generally, an overall Drilling System consists of core bits, reaming shells, core barrels, drill rods and drilling rig.
Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc..
ROSCHEN makes six types of core bits: Depending on the range of application as well as the cutting media on the core bits
1. Impregnated Diamond Type
2. Surface set Diamond Type
3. Tungsten Carbide Type
4. PDC Type
5. PCD Type
6. Electroplated Diamond Type

Quantity:
  • PQ HQ NQ BQ ...
  • ROSCHEN
  • ROS-IDC-PQ HQ NQ BQ ...

Product Description

Impregnated Diamond Core Bit PQ HQ NQ BQ with standard crown


Model Number

PQ, HQ, NQ, BQ,   PQ3,HQ3, NQ3, NQ2

Usage

rotary   geological drilling

Type

Core drill bit

Material

Diamond

Supply ability

600pcs/M

Contact mail

roschen@roschen.com

PQ HQ NQ BQ Impregnated Diamond Core Bit with standard crown

Generally, an overall Drilling System consists of core bits, reaming shells, core barrels, drill rods and drilling rig.

Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc..

ROSCHEN makes six types of core bits: Depending on the range of application as well as the cutting media on the core bits



1.       Impregnated Diamond Type

2.       Surface set Diamond Type

3.       Tungsten Carbide Type

4.       PDC Type

5.       PCD Type

6.       Electroplated Diamond Type

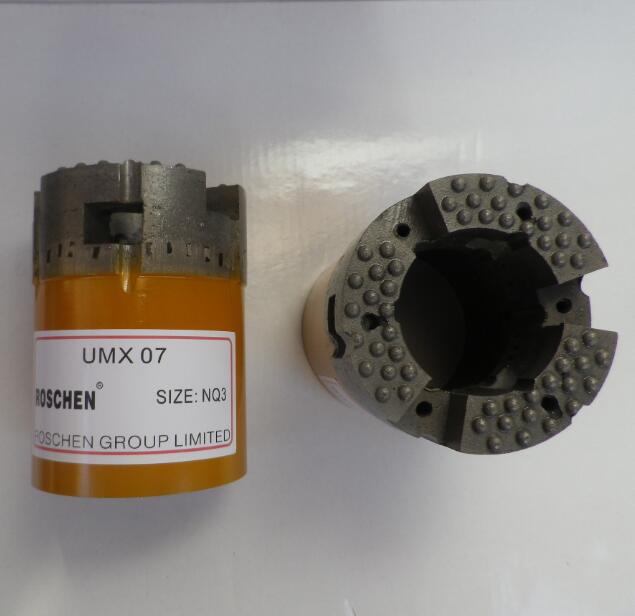

 impregnent diamond core bit

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.



All the Impregnated Diamond Core Bits sizes:

Wireline series:

 Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3,   WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3,   NQ2, WL-56, WL-66, WL-76

T2 /   T series:

T2 46, T2 56, T2   66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86

TT series:

TT 46, TT 56

T6 series:

 T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series:

T6S 76, T6S 86,   T6S 101, T6S 116, T6S 131, T6S 146

B series:

B46, B56, B66,   B76, B86, B101, B116, B131, B146

MLC series:

 NMLC, HMLC

LTK series:

 LTK48, LTK60

WF series:

HWF, PWF, SWF,   UWF, ZWF

WT series:

 RWT, EWT, AWT, BWT, NWT, HWT(Single Tube,   Double Tube)

WG series:

 EWG, AWG, BWG, NWG, HWG(Single Tube, Double   Tube)

WM series:

EWM, AWM, BWM,   NWM, HWM

Other sizes:

 AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F,   BTW, TBW, NTW, HTW, T6H

Chinese   standard:

 56mm,   59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm,   275mm

Russian   standard:

59, 76, 93, 112,   132, 152 mm

FAQ

Q: Are you a manufacturer or trading company?

A: ROSCHEN is manufacturer, the factory is located in AnHui province, China.



Q: What are your main products?

A: ROSCHEN products cover diamond core bit, non-coring bit, reaming shell, core barrel, casing pipe, drill rod, soil sampling equipment and other accessories.



Q: Do you accept sample order?

A: Yes sure, please contact us for details.



Q: How does your company control the quality?

A: We have obtained certificate of ISO9001:2000 in 2004. Quality always comes first. ROSCHEN always makes a serious inspection for all products and raw materials in strict procedure in order to guarantee quality for all the products.



Q: How about your after-sales service?

A: As a manufacturer we have technical support for all issues. Besides we accept goods return or replace for quality problem.



Q: How about the delivery terms?

A:  1. Payment: T/T, L/C, Western Union, Paypal.

    2. No request on min. order quantity.

    3. Transportation: By DHL/UPS/Fedex express, air, sea, train.
