Horizontal Directional HDD drill pipe

ROSCHEN always maintains certain advantages in technical equipment. There are two drill pipe production lines with an annual production capacity of 4000 tons. The main key equipment includes the intelligent full-automatic drill pipe intermediate frequency heat treatment production line. The equipment thread laser processor and 600t friction welding machine are welding machines with a diameter of 300 mm and a specification of J, 1000 ton thickening forging press, various intelligent CNC thread processing machines, wear-resistant automatic welding machine and other equipment.
Availability:
Quantity:
  • 5", 5 1/2" , 6 5/8" , 7 5/8" , 8 5/8" ,

  • ROSCHEN

  • ROS-HDD-5", 5 1/2" , 6 5/8" , 7 5/8" , 8 5/8" ,

Product Description


HDD Horizontal Directional drill pipe



The ROSCHEN’s drill pipe products cover the fields of trenchless drill pipe drilling tools for urban construction and pipeline transmission construction; mine drilling tools, well drilling tools, heat source drilling tools and petroleum drilling tools for resource development and utilization; anchor drilling tools for engineering construction; gas rescue drilling pipes and emergency drilling pipes for mining and handling dangerous situations; linkage accessories for various types of drilling machines, etc.



ROSCHEN always maintains certain advantages in technical equipment. There are two drill pipe production lines with an annual production capacity of 4000 tons. The main key equipment includes the intelligent full-automatic drill pipe intermediate frequency heat treatment production line. The equipment thread laser processor and 600t friction welding machine are welding machines with a diameter of 300 mm and a specification of J, 1000 ton thickening forging press, various intelligent CNC thread processing machines, wear-resistant automatic welding machine and other equipment.



Technology highlights



After the scientific design of the thickening end and the accurate calculation of the thickening process, the advanced thickening equipment is used for thickening to ensure the long and smooth inner transition zone.

The multi-point temperature measuring natural gas walking furnace widely accepted by the oil drilling tool manufacturing industry is used to heat treat the pipe body to ensure the best fit of strength and toughness.



After long-term cooperation with international mainstream drilling companies, they fully understood their thread design concept and thread processing method, greatly improving their thread design ability.

QPQ method is used to treat the thread surface. The wear resistance and anti sticking level of the thread are leading in the world.



Quality control system



The quality system is established according to API Q1. The professional quality system personnel have trained the whole staff for many times. Effective operation of quality system.

According to the requirements of API 5dp, 100% of drill pipe is subject to ultrasonic and magnetic flux leakage detection.

With all the required physical and chemical testing equipment, the drill pipe can be tested for all-round mechanical properties according to the requirements of API 5dp standard. All testing equipment is purchased from Mts.

Independent thread gauge storage room, 100% inspection of key thread parameters and keeping inspection records.



Raw material

Raw materials are from china top steel supplier Baosteel, the most advanced steel manufacturer in China.

Normal Size

Normal Weight

Grade

Upset

Wall Thickness

ID

Torsional   Strength

Tensile Strength

Burst Pressure

Collapase   Pressure

Connection

OD

ID

Pin Tong Space

Box Tong Space

Make-up Torque

Torsional   Strength

Tensile Strenght

Torsional ratio

Adjusted Weight

Fluid Capacity

Fluid   Displacement

in

lbs/ft



in

in

ft-lbs

lbs

psi

psi


in

in

in

in

ft-lbs

ft-lbs

lbs


lbs/ft

US gal/ft

US gal/ft

5

19.50

S-135

IEU

0.362

4.276

74100

712070

17105

15672

NC-50

6 5/8

2 3/4

9

12

38036

63406

1551706

0.86

24.09

0.7

0.37

5

19.50

S-135

IEU

0.362

4.276

74100

712070

17105

15672

NC-50 DS

6 5/8

3 1/4

9

12

43320

72200

1250000

97

23.19

0.71

0.35

5

25.60

S-135

IEU

0.500

4

94062

954259

23625

24300

NC-51 DS

6 5/8

2 3/4

9

12

55600

92600

1532800

0.98

24.04

0.7

0.37

5 1/2

21.90

S-135

IEU

0.361

4.778

91278

786809

15507

12679

5 1/2 FH DS

7 1/4

3 1/2

10

12

68270

113485

1754166

1.24

26.93

0.88

0.41

5 1/2

24.70

S-135

IEU

0.415

4.67

101834

894999

17826

17023

5 1/2 FH DS

7 1/4

3 1/2

10

12

68270

113485

1754166

1.11

29.66

0.85

0.45

5 1/2

24.70

S-135

IEU

0.415

4.67

101834

894999

17826

17023

5 1/2 FH

7 1/2

3

10

12

52059

87341

1925536

0.86

30.88

0.83

0.47

6 5/8

27.70

S-135

IEU

0.362

5.901

137331

961556

12909

7813

6 5/8 FH

8 1/2

4 1/4

10

13

65012

109227

2102260

0.8

34.17

1.34

0.53

6 5/8

27.70

S-135

IEU

0.362

5.901

137331

961556

12909

7813

6 5/8 FH DS

8 1/2

4 1/4

10

13

101685

169475

2277448

1.23

34.17

1.34

0.53

6 5/8

27.70

S-135

IEU

0.362

5.901

137331

961556

12909

7813

6 5/8 FH DS

8

4 3/4

10

13

74465

124110

1817990

0.9

31.82

1.36

0.48

6 5/8

27.70

S-135

IEU

0.362

5.901

137331

961556

12909

7813

5 1/2 FH DS

7 1/2

3 1/2

12

14

79000

131723

1754166

0.96

31.33

1.32

0.47

7 5/8

33.70

S-135

IEU

0.430

6.765

214941

1312148

14465

8584

6 5/8 FH DS

8 1/2

4 1/4

13

15

102520

170870

2277448

0.79

44.91

1.72

0.67

7 5/8

33.70

S-135

IEU

0.430

6.765

214941

1312148

14465

8584

6 5/8 FH DS

8 1/2

4 3/4

13

15

75662

126104

1817990

0.59

43.92

1.75

0.65

7 5/8

39.00

S-135

IEU

0.500

6.625

243035

1510920

15492

12651

6 5/8 FH DS

8 1/2

4 1/4

13

15

102520

170870

2277448

0.7

49.91

1.66

0.74

7 5/8

39.00

S-135

IEU

0.500

6.625

243035

1510920

15492

12651

6 5/8 FH DS

8 3/4

4

13

15

114800

191410

2488032

0.79

51.31

1.65

0.77

8 5/8

44.00

S-135

IEU

0.500

7.625

318253

1722967

13696

14745

JSH 7 1/8 FH DS   *1

9 1/2

4

16

19

157900

263200

3056200

0.78

59.71

2.18

0.95

8 5/8

44.00

S-135

IEU

0.500

7.625

318253

1722967

13696

14745

JSH 70 DS *2

9

4

16

19

131000

218300

2735700

0.69

57.16

2.18

0.87

*1 tool joint   connection type recommended by JSH

















*2 tool joint   connection type recommended by the customer

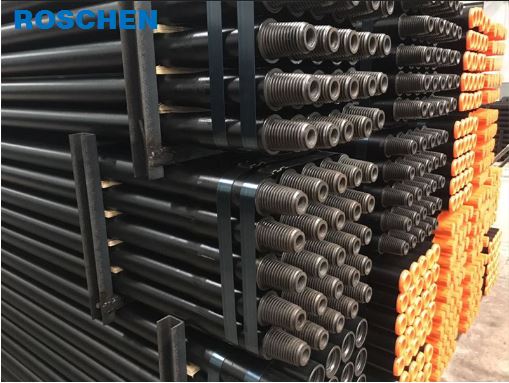

HDD pipe for drilling

ROSCHEN management team declare "quality is the life of the enterprise, quality is the foundation of the brand", establishes a perfect drill pipe inspection center, and has all kinds of quality professionals and systematic inspection equipment. We has obtained ISO9001:2008, APIQ1 quality system certification.
