HWDP 3 1/2"
ROSCHEN
ROS-HWDP-3 1/2
Product Description
Heavy Weight Drill Pipe 3 1/2”, 26.10 Lb ft, Connection NC-38
HWDP is used as a transitional stiffness section, typically between the stiff and rigid drill collars and the relatively light and flexible drill pipe joints to reduce fatigue failures directly above the bottom hole assembly.
Standard HWDP was developed to provide a gradual transition from heavy drill collars to relatively lightweight drill pipe.
This intermediate-weight pipe has a wall thickness of approximately 1 in. and helps prevent stress concentration at the top of the drill collar section. Heavy weight drill pipe also enables drilling at higher RPMs, reducing torque and differential pressure sticking.
Heavy weight drill pipe is well-suited for directional drilling applications. Because it bends easily, heavy weight drill pipe simplifies directional control and minimizes connection fatigue problems that are common in high-angle or horizontal drilling.
Nominal Size (Tube OD) | Tube | Tool Joint (in) | ||||
ID (in) | Elevator Upset | Center Upset | Connection Type & Size | OD (in) | ID (in) | |
2-7/8 | 1-1/2 | 2-15/16 | 3-5/16 | NC 26 (2-3/8 IF) | 3-3/8 | 1-1/2 |
3-1/2 | 2-1/16 | 3-7/8 | 4 | NC 38 (3-1/2 IF) | 4-3/4 (4-7/8,5) | 2-1/16 |
3-1/2 | 2-1/4 | 3-7/8 | 4 | NC 38 (3-1/2 IF) | 4-3/4 (4-7/8,5) | 2-1/4 |
4 | 2-9/16 | 4-3/16 | 4-1/2 | NC 40 (4FH) | 5-1/4 | 2-9/16 |
4 | 2-1/2 | 4-3/16 | 4-1/2 | NC 40 (4 FH) | 5-1/4 | 2-1/2 |
4-1/2 | 2-3/4 | 4-11/16 | 5 | NC 46 (4 IF) | 6-1/4 | 2-3/4 |
4-1/2 | 2-11/16 | 4-11/16 | 5 | NC 46 (4 IF) | 6-1/4 | 2-11/16 |
4-1/2 | 2-13/16 | 4-11/16 | 5 | NC 46 (4 IF) | 6-1/4 | 2-13/16 |
5 | 3 | 5-1/8 | 5-1/2 | NC 50 (4-1/2 IF) | 6-5/8 | 3 |
5-1/2 | 3-1/4 | 5-11/16 | 6 | 5-1/2 FH | 7 (7-1/4,7-1/2) | 3-1/4 |
5-1/2 | 3-3/8 | 5-11/16 | 6 | 5-1/2 FH | 7 (7-1/4,7-1/2) | 3-3/8 |
5-1/2 | 3-7/8 | 5-11/16 | 6 | 5-1/2 FH | 7 (7-1/4,7-1/2) | 3-7/8 |
5-1/2 | 4 | 5-11/16 | 6 | 5-1/2 FH | 7 (7-1/4,7-1/2) | 4 |
6-5/8 | 4 | 6-15/16 | 7-1/8 | 6-5/8 FH | 8 (8-1/4,8-1/2) | 4 |
6-5/8 | 4-1/2 | 6-15/16 | 7-1/8 | 6-5/8 FH | 8 (8-1/4,8-1/2) | 4-1/2 |
6-5/8 | 5 | 6-15/16 | 7-1/8 | 6-5/8 FH | 8 (8-1/4,8-1/2) | 5 |
Standard Features | API Bore Back Box Connection | |||||
API Stress Relief Grooved Pin | ||||||
Cold Rolled Thread Roots | ||||||
Phosphate coated connections | ||||||
Options | Internal Plastic Coating | |||||
Hardband Type especially on box and pin tool joint | ||||||
Proprietary Connections | ||||||
Make and Break Test | ||||||
Protection | Pressed steel thread protectors | |||||
Mill Test Certificates | Issued in accordance with API Spec 7/7-1 and API RP7G . | |||||
Third Party Inspection can be performed on request at buyer’s care and expense. | ||||||

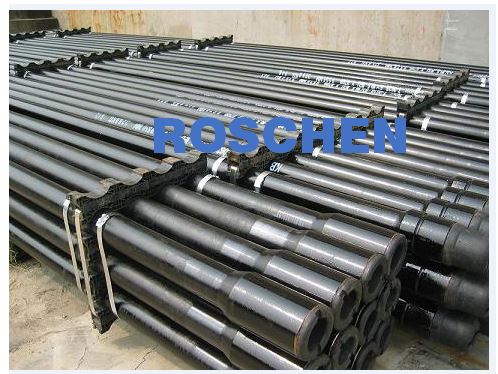

For extended reach and horizontal wells, high-strength heavy weight drill pipe is often used high in the hole to apply weight on the bit. This is especially true for wells in which the total vertical depth to total measured depth ratio is low.
Connection technologies
As the leader in the development of rotary-shouldered connections, our products are engineered to optimize drill pipe performance. With four generations of double-shouldered connections, we have developed technologies to meet the demands of any drilling challenge.
Grade technologies
ROSCHEN’s purposefully engineered drill pipe material grades provide increased product performance and integrity. Our high-strength grades help you drill safer and deeper with reduced hook loads and improved hydraulics. Our sour service grades deliver outstanding performance while resisting sulfide stress cracking (SSC), helping you drill safely and efficiently in harsh, sour conditions.
