HDD Hole Opener 44" or Tricone Hole Opener

Function of Hole Openers
The hole opener is generally used after the pilot bit has drilled the original hole. A hole opener consists of a body with roller cones or it could be a fixed blade that would be dressed with Tricone or PDC or crushed Carbide.
Available size:
8″-48″

Quantity:
  • 44inch
  • ROSCHEN
  • ROS-HO-44"

Product Description

HDD Hole Opener 44" or Tricone Hole Opener



Hole Openers

A hole opener is a fixed diameter bore hole enlargement tool that is utilized to expand the well bore beyond the original hole size drilled by the bit. ROSCHEN has many different types of hole openers to meet the various applications.



Function of Hole Openers

The hole opener is generally used after the pilot bit has drilled the original hole. A hole opener consists of a body with roller cones or it could be a fixed blade that would be dressed with Tricone or PDC or crushed Carbide.



Size

44inch

Cutter Type

Metal-face   sealed bearing cutters for 12 1/4" tricone bit

IADC

537

Roller Cutter   Quantity

10

Overall   Length(mm)

1800

Thread   Connection

5 1/2 IF pin   & box(Customized)

Application

Medium   formations, such as medium shale, limestone, medium sandstone, medium   formation with harder and abrasive interbeds,etc.

Performance feature:

 1. Time saving, quick replaceable roller bit

 2. Longer working life & fast penetration, HDD special design roller bit

 3. Endure hole opener body, Tungsten pads applied stabilizer

Available size:

8-48

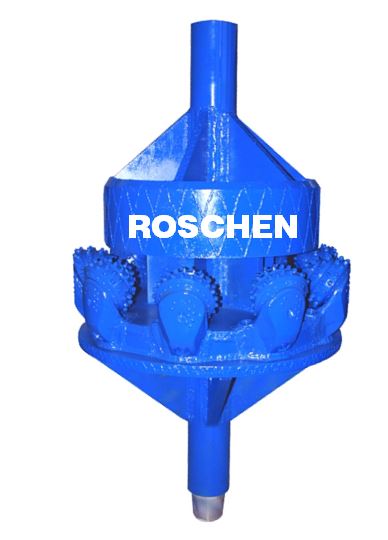

 hdd hole opener 44inch

Typical Application of Hole Openers

A hole opener is then tripped into the well bore to the beginning depth and then utilized to enlarge the pre-drilled pilot hole. This is the most typical, however, hole openers may be also utilized to ensure that the gauge of the pilot hole is intact, this method is generally known as a wiper trip. Wiper trips are best for deviated holes where trying to run the bit back to the end of the section could actually case a side track scenario in softer formations. Hole openers may also be utilized in the same drill string as the bit to perform a function of actually enlarging the well bore or ensuring that the bit gauge is maintained and clean up any formation beds that may accumulate throughout the section being drilled.



Key Features of Hole Openers

A hole opener is a cost effective way to enlarge a pre-drilled pilot hole or to ensure that the gauge is maintained in a deviated hole. A hole opener with a bull nose below helps to mitigate any potential side track issues in wiper trip applications.
