Dual Tube Reverse Circulation Hammer / RC hammer

ROSCHEN group’s Reverse Circulation RC drilling hammers and hammer drill bits provide outstanding performance along with outstanding reliability and simplicity. Our reverse circulation hammers are suitable for any exploration and grade control process to obtain an accurate sample with no contamination.

Quantity:
  • RE545, RE052, RE054, RE547, RE140
  • ROSCHEN
  • ROS-RC-RE545, RE052, RE054, RE547, RE140

Product Description

Dual Tube Reverse Circulation Hammer RC hammer



Dual Tube Reverse Circulation Hammer For Mining And Geological Exploration

ROSCHEN group’s Reverse Circulation RC drilling hammers and hammer drill bits provide outstanding performance along with outstanding reliability and simplicity. Our reverse circulation hammers are suitable for any exploration and grade control process to obtain an accurate sample with no contamination. RC drilling hammers can in most instances carry out continuous sample collection in a fraction of the time necessary with conventional or wireline coring.


Product Description

Name:

Reverse Circulation Hammer

Feature:

Dual Tube

Use:

Mining And Geological Exploration

Origin:

China

Hammer:

Reverse Circulation Hammer

Model No:

RE545, RE052, RE054,   RE547, RE140 RC Hammer

ROSCHEN RC Hammers Specifications

Hammer Size

Hammer

Bit Shank

ROSCHEN Code

Hole Range (mm)

External Diameter (mm)

Length (without bit) mm

Weight (N.W.) kgs

Connection Thread

Working Pressure

3"

RE531

RE531

ROS RC 30

84-100

81

1069

29

3“ Remet

1.0-3.0Mpa

3"

RE035

RE035

ROS RC 35

84-105

85

1075

35

3“ Remet

1.0-3.0Mpa

4 1/2"

RE004

RE004

ROS RC 40

111-127

107

1252

52

3.5"-4" Remet  4" Metzke

1.0-3.0Mpa

4 1/2"

RE540

RE540

ROS RC 45

111-127

107

1252

52

3.5"-4" Remet  4" Metzke

1.0-3.0Mpa

5"

RE040

RE040

ROS RC 50

113-130

109.5

1191

57

3.5"-4" Remet  4" Metzke

1.0-3.0Mpa

5"

RE542

RE542

ROS RC 50

113-130

109.5

1191

57

3.5"-4" Remet  4" Metzke

1.0-3.0Mpa

5"

RE543

RE543

ROS RC 50

120-135

116

1191

62

3.5"-4" Remet  4" Metzke

1.0-3.0Mpa

5"

RE545

RE545

ROS RC 50

122-135

117.5

1261

65

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

RE547

RE547

ROS RC 55

130-146

124.5

1270

71

4.5" Remet   4.5" Metzke

1.5-3.5Mpa

5 1/2"

RE052

RE052

ROS RC 55

130-146

124.5

1270

71

4.5" Remet   4.5" Metzke

1.5-3.5Mpa

5 3/4"

RE054

RE054

ROS RC 55

130-146

124.5

1270

85

4.5" Remet   4.5" Metzke

1.5-3.5Mpa

5 3/4"

RE140

RE140

ROS RC 55

130-146

124.5

1270

85

4.5" Remet   4.5" Metzke

1.5-3.5Mpa

5"

PR40

PR40

ROS RC 50

124-142

120.5

1362

80.5

3.5"-4.5" Remet 3.5"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR52

PR52

ROS RC 55

126-142

121

1227

68.5

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR52R

PR52/PR52R

ROS RC 55

130-146

124

1225

65

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR54

PR54

ROS RC 55

135-150

130

1294

84.5

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

6"

MX5456

MX5456

ROS RC 60

136-150

132

1362

90

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

6"~6 1/2"

RC62/RC62R

RC62/RC62R

ROS RC 65

152-190

146

1320

110

As Request

1.5-3.5Mpa

8"

RC82/RC82R

RC82/RC82R

ROS RC 80

190-250

180

1395

185

As Request

1.5-3.5Mpa

10"

RC100/RC100R

RC100/RC100R

ROS RC 100

250-370

240

1528

328

As Request

1.5-3.5Mpa

Notes:

Metzke, Remet thread is available!

Any special type shank of RC Hammer will be available   by requests.

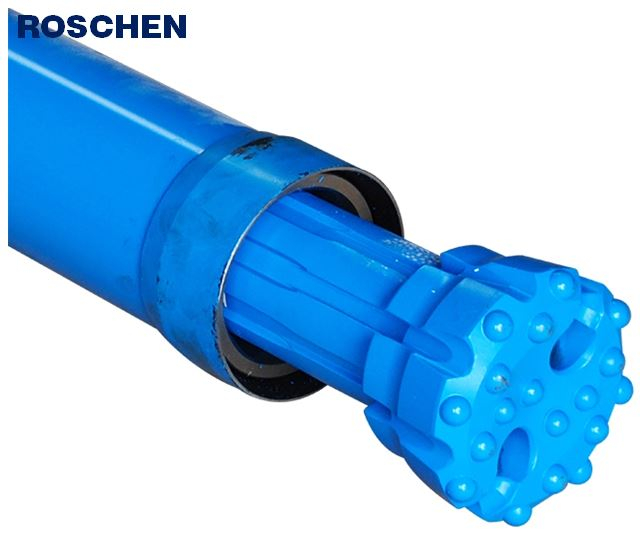

dual tube RC hammer

Reverse Circulation Hammer  DESIGN PRINCIPLES:

Design based on high Impact energy output with low air consumption offers a cost effective hammer.

Reverse Circulation Hammer ADVANTAGES:

1.    High impact frequency and penetration rate,

2.    The low air consumption with high crushing function,

3.    Easy precise high quality geological samples.

4.    Overall low cost per feet drilling


Terms & Conditions of Ordering:


Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.



Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment



Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.


After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
