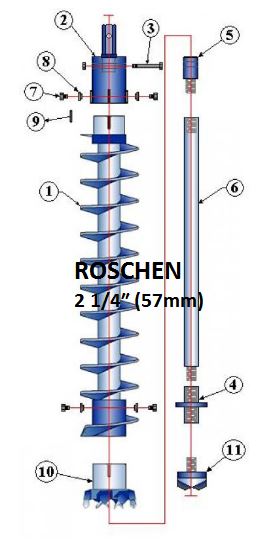

Auger Section

1

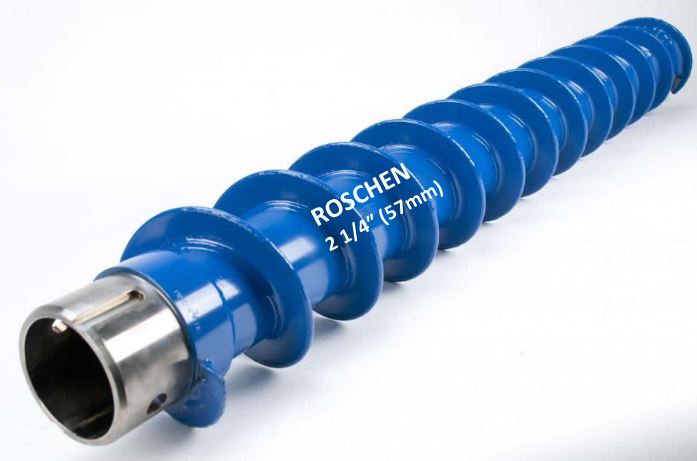

2 1/4″ (57mm) DK Hollow Stem Auger 2 1/4″ (57mm) I.D. x 5 5/8″ (143mm)   O.D. x 5′ (1524mm)

A214200

52

23.5

2

2 1/4″ (57mm) DK Drive Cap with 1 5/8″ (41mm) Hex Pin

ADC214210

16

7.3

3

#2 Nut & Bolt for Rod-to-Cap Adapter

ANAB2

0.9

0.4

4

2 1/8″ (54mm) Pilot Bit Connector (AW Box – A-Rod Box)

APBC218AWB

5

2.3

4

2 1/8″ (54mm) Pilot Bit Connector (AWJ Box – A-Rod Box)

APBC218AWJB

5

2.3

5

Rod-to-Cap Adapter – AW Pin

ARCAAWP

3

1.4

5

Rod-to-Cap Adapter – AWJ Pin

ARCAAWJP

3

1.4

6

AW Drill Rod – 5′ (1524mm)

ADR5AW

21

9.5

6

AWJ Drill Rod – 5′ (1524mm)

ADR5AWJ

23

10.4

Auger Repair Parts

1A

2 1/4″ (57mm) DK Pin Tool Joint

ATJ2142P

6

2.7

1B

2 1/4″ (57mm) DK Box Tool Joint

ATJ2142B

5

2.3

7

ALB2 Auger Lock Bolt

ALB2

0.3

0.1

8

ABN2 Auger Bushing Nut

ABN2

0.3

0.1

9

ADK1 Auger Drive Key

ADK1

0.3

0.1

Auger Cutterheads and Pilot Bits

10

2 1/4″ (57mm) DK Spade Cutterhead – 6 1/2″ (165mm) O.D.

ACH214251

10

4.5

10

2 1/4″ (57mm) DK Spade/Bullet Cutterhead – 6 1/2″ (165mm) O.D.

ACH214261

9

4.1

10

2 1/4″ (57mm) DK Bullet Cutterhead – 6 1/2″ (165mm) O.D.

ACH214270

10

4.5

10

2 1/4″ (57mm) DK 5-T Cutterhead – 6 1/2″ (165mm) O.D.

ACH214271

10

4.5

11

2 1/8″ (54mm) Apex Pilot Bit, A-Rod Pin

APB218APX

2.5

1.3
