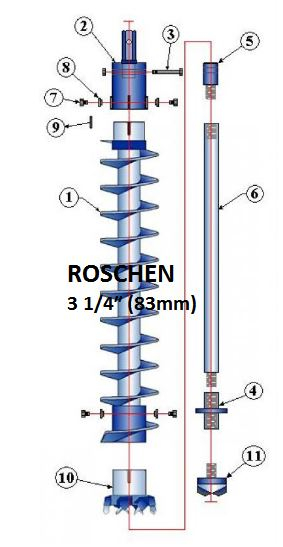

Auger Section

1

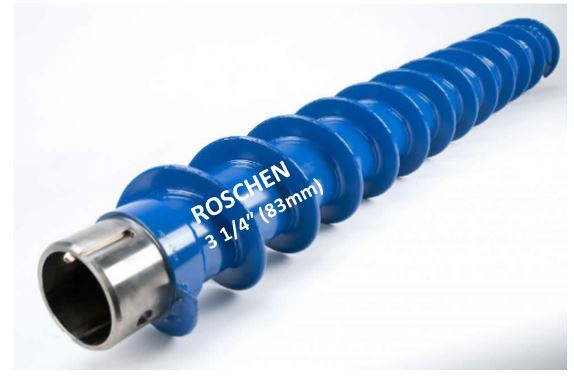

3 1/4″ (83mm)   DK HD Hollow Stem Auger 3 1/4″ (83mm) I.D. x 6 5/8″ (168mm) O.D. x 5′   (1524mm)

81

36.7

2

3 1/4″ (83mm)   DK HD Drive Cap with 1 5/8″ (41mm) Hex Pin

22

10

2

3 1/4″ (83mm)   DK HD Drive Cap with 2″ (51mm) Hex Pin

23

10.4

3

#3 Nut &   Bolt for Rod-to-Cap Adapter

0.9

0.4

4

3 1/8″ (79mm)   Pilot Bit Connector (AW Box – 4 Thd N-Rod Box)

11

5

4

3 1/8″ (79mm)   Pilot Bit Connector (AWJ Box – 4 Thd N-Rod Box)

12

5.4

4

3 1/8″ (79mm)   Pilot Bit Connector (NW Box – 4 Thd N-Rod Box)

8

3.6

4

3 1/8″ (79mm)   Pilot Bit Connector (NWJ Box – 4 Thd N-Rod Box)

11

5

5

Rod-to-Cap   Adapter – AW Pin

3

1.4

5

Rod-to-Cap   Adapter – AWJ Pin

3

1.4

5

Rod-to-Cap   Adapter – NW Pin

7

3.2

5

Rod-to-Cap   Adapter – NWJ Pin

6

2.7

6

AW Drill Rod –   5′ (1524mm)

21

9.5

6

AWJ Drill Rod   – 5′ (1524mm)

23

10.4

6

NW Drill Rod –   5′ (1524mm)

31

14.1

6

NWJ Drill Rod   – 5′ (1524mm)

35

15.9

Auger Repair   Parts

1A

3 1/4″ (83mm)   DK HD Pin Tool Joint

7

3.2

1B

3 1/4″ (83mm)   DK HD Box Tool Joint

6

2.7

7

ALB3 Auger   Lock Bolt

0.3

0.1

8

ABN3 Auger   Bushing Nut

0.3

0.1

9

ADK2 Auger   Drive Key

0.3

0.1

Auger   Cutterheads and Pilot Bits

10

3 1/4″ (83mm)   DK Blade Cutterhead – 7 1/2″ (190mm) O.D.

11

5

10

3 1/4″ (83mm)   DK Spade Cutterhead – 7 1/2″ (190mm) O.D.

12

5.5

10

3 1/4″ (83mm)   DK Blade/Bullet Cutterhead – 7 1/2″ (190mm) O.D.

14

6.4

10

3 1/4″ (83mm)   DK Spade/Bullet Cutterhead – 7 1/2″ (190mm) O.D.

9

4.1

10

3 1/4″ (83mm)   DK Bullet Cutterhead – 7 1/2″ (190mm) O.D.

10

4.5

10

3 1/4″ (83mm)   DK 5-T Cutterhead – 7 1/2″ (190mm) O.D.

10

4.5

11

3 1/8″ (79mm)   Apex Pilot Bit, 4-Thrd N-Rod Pin

2.5

1.3

11

3 1/8″ (79mm)   Bullet Pilot Bit, 4-Thrd N-Rod Pin

5

2.3
