Diamond Tipped Drill Bits

Reaming shell is set with natural or synthetic diamond, and it is used to couple the drill bit with the core barrel. Its main function is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bit.

Quantity:
  • BQ NQ HQ PQ
  • ROSCHEN
  • ROS-SDC-BQ/NQ/HQ/PQ.....

Product Description


Diamond Tipped Drill Bits 9mm Penetration Rate

Impregnated Diamond Core Bits Description:



Reaming shell is set with natural or synthetic diamond, and it is used to couple the drill bit with the core barrel. Its main function is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bit.



Diamond Reaming Shells are very important reamer tools to be used together with bits in core drilling. Its main functions are maintaining the borehole gage, improving drill rods stability and protecting lower part of drill rod from excessive wear.

Helical type reaming shells provides good passages for water flowing, the matrix is wear proof and its service life is long.

Impregnated Diamond Core Bits For Hard Rock Stratum

Standard: Longyear Standard Material: High Quality Diamond Material
Available Size: BQ NQ HQ PQ Application: Hardness & Soft Rock Formations

Super antiwear characteristic

 Super long lifetime

 Solid quality

Diamond Tipped Drill Bits Details:

Features: High Penetration Rate, High Speed, High Performance Material: Diamond
Type: Impregnated Bits Use: Mineral Exploration, Mineral Exploration
Product Name: Core Drill Bits Crown Height: 9mm, 12mm, And 16mm

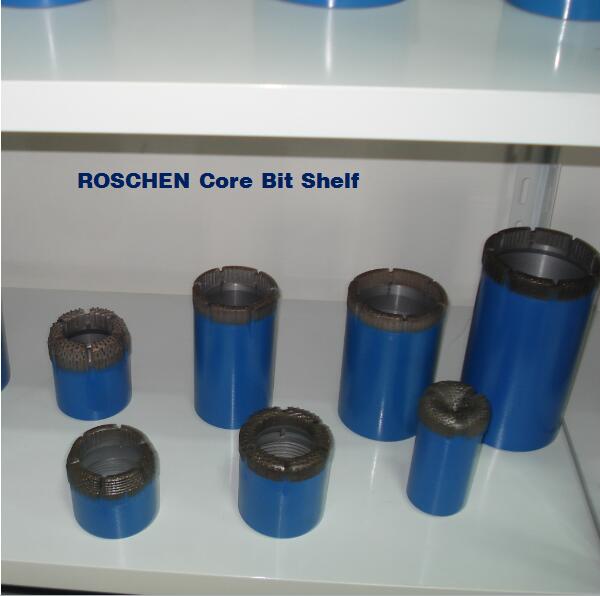

surface core bit

Advantages:



1. Fast cutting and drilling speed

2. Long life, stable performance

3. Low power consumption

4. Professional OEM, superior grade quality, more than 5years manufacturing experience

5. CE: ISO: 9001: 2000



Size Available:



Q Series: AQ,BQ,NQ,HQ,PQ/AQTK,BQTK,BQ3,NQ2,NQ3,NQTT,HQ3,HQTT,PQ3,PQTT
T2 Series: T2 46,T2 56,T2 66,T2 76,T2 86,T2 101
T6 Series: T6 76,T6 86,T6 101,T6 116,T6 131,T6 146, T6S 101
T Series:  T36,T46,T56,T66,T76,T86
Z Series:  Z46,Z56,Z66,Z76,Z86,Z101,Z116,Z131,Z146
B Series:  B36,B46,B56,B66,B76,B86,B101,B116,B131,B146
WF Series: HWF,PWF,SWF,UWF,ZWF
WT Series: RWT,EWT,AWT,BWT,NWT,HWT
WM Series: EWM,AWM,BWM,NWM
WG Series: EWG,AWG,BWG,NWG,HWG
