Diamond Tipped Drill Bits 9mm Penetration Rate

Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc.
Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Quantity:
  • BQ ,NQ ,HQ ,PQ ,SQ, PQ3, HQ3,
  • ROSCHEN
  • ROS-IDC-BQ ,NQ ,HQ ,PQ ,SQ, PQ3, HQ3,

Product Description

Diamond Tipped Drill Bits 9mm Penetration Rate



Impregnated Diamond Core Bits For Hard Rock Stratum

Standard: Longyear Standard Material: High Quality Diamond Material
Available Size: BQ NQ HQ PQ Application: Hardness & Soft Rock Formations

Super antiwar characteristic

 Super long lifetime

 Solid quality


Diamond Tipped Drill Bits Details:

Features:

High Penetration Rate, High Speed, High Performance

Material:

Diamond

Type:

Impregnated Bits

Use:

Mineral Exploration, Mineral Exploration

Product Name:

Core Drill Bits

Crown Height:

9mm, 12mm, And 16mm

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc.

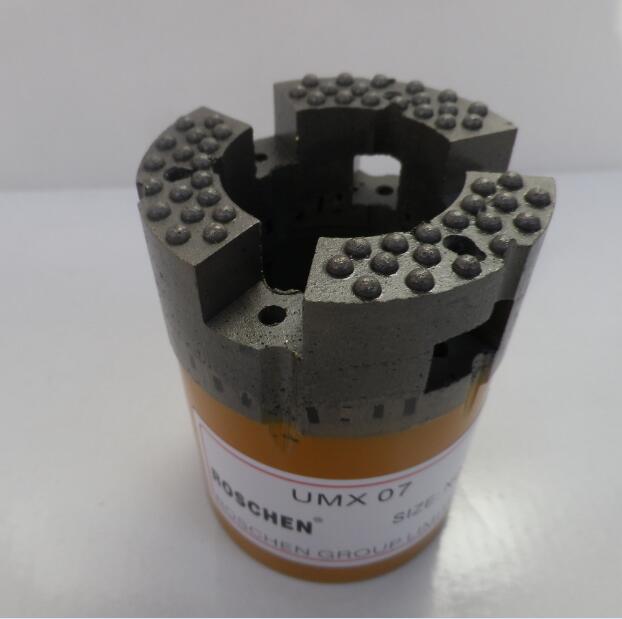

diamond core bit

Advantages:

1. Fast cutting and drilling speed

2. Long life, stable performance

3. Low power consumption

4. Professional OEM, superior grade quality, more than 5years manufacturing experience

5. CE: ISO: 9001: 2000



Size Available:

Wireline series:

 Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3,   WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3,   BQ3, NQ2, WL-56, WL-66, WL-76

T2 /   T series:

T2 46, T2 56, T2   66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86

TT series:

TT 46, TT 56

T6 series:

 T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series:

T6S 76, T6S 86,   T6S 101, T6S 116, T6S 131, T6S 146

B series:

B46, B56, B66,   B76, B86, B101, B116, B131, B146

MLC series:

 NMLC, HMLC

LTK series:

 LTK48, LTK60

WF series:

HWF, PWF, SWF,   UWF, ZWF

WT series:

 RWT, EWT, AWT, BWT, NWT, HWT(Single Tube,   Double Tube)

WG series:

 EWG, AWG, BWG, NWG, HWG(Single Tube, Double   Tube)

WM series:

EWM, AWM, BWM,   NWM, HWM

Other sizes:

 AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F,   BTW, TBW, NTW, HTW, T6H

Chinese   standard:

 56mm,   59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm,   275mm

Russian   standard:

59, 76, 93, 112,   132, 152 mm
