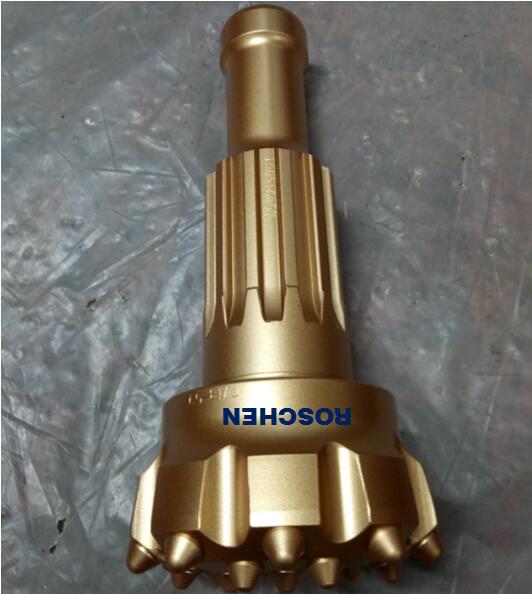

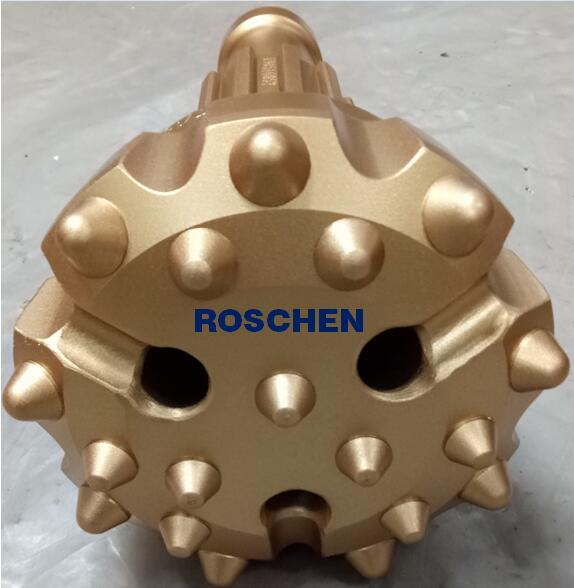

DTH drill bit M50-140

Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.
DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)
M shank DTH drill bit with flat face, 7 dome & 6 semi-ballistic carbide buttons for blasting bore holes, water well drilling.
M shank DTH drill bit with concave face, dome carbide buttons.

Quantity:
  • M50-140
  • ROSCHEN
  • M50-140

Product Description

DTH drill bit M50-140


Product Description



CODE NO.

M50-140

Shank type

M50

Diameter

140

air holes

2

gauge buttons

7*17mm

face buttons

6*14mm

Bit face type

Convex face

carbide design

Dome(gauge   buttons), parabolic(face buttons)

approx. weight

16Kgs

Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.

DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)



M shank DTH drill bit with flat face, 7 dome & 6 semi-ballistic carbide buttons for blasting bore holes, water well drilling.

M shank DTH drill bit with concave face, dome carbide buttons.

 DTH bit M50 140

ROSCHEN is rock drilling tools manufacturer, we produces a various range of DTH hammer bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.



Flat Face

An universal design, especially for hard and abrasive rock formation. Flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rate and resistance to steel wash.



Dome/Hemispherical Buttons

Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Semi-Ballistic/Parabolic Buttons

Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.
