Home / Products / DTH Drill Bit / DTH drill Bit M30-102
Share to:

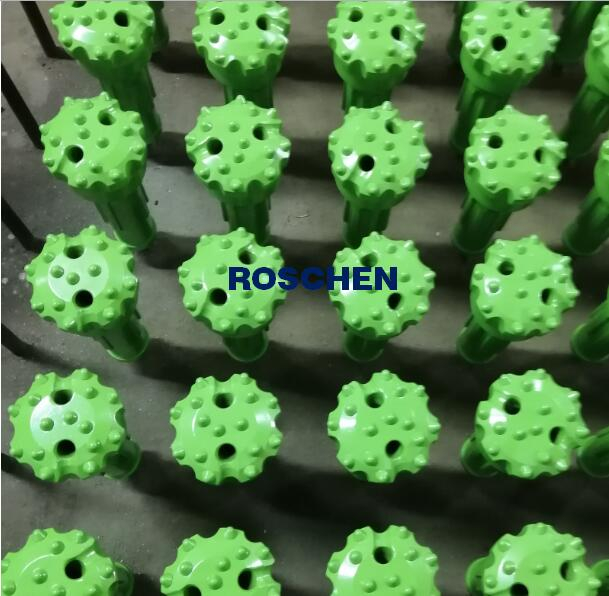

DTH drill Bit M30-102

DTH drill Bit M30-102
Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.

DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)

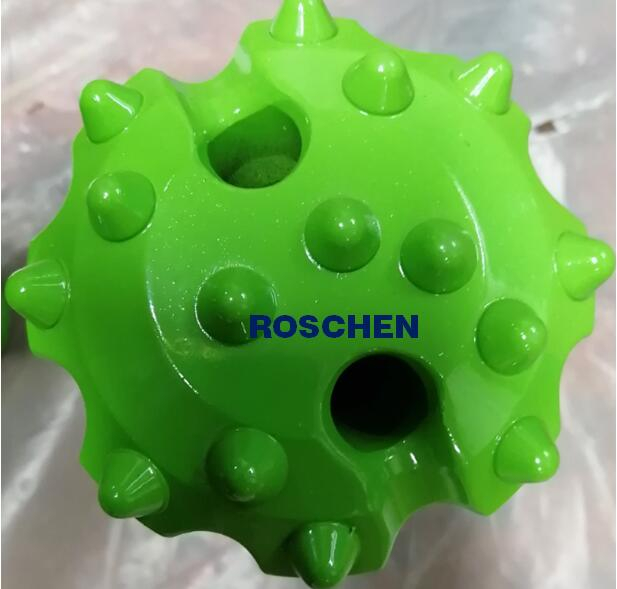

M shank DTH drill bit with flat face, 11 semi-ballistic carbide buttons for blasting bore holes, water well drilling.

Quantity:
  • M30-102
  • ROSCHEN
  • M30-102

Product Description

DTH Drill Bit M30-102


Product Description

CODE NO.

M30-102

Shank type

M30

Diameter

102

air holes

2

gauge buttons

6*13mm

face buttons

5*12mm

Bit face type

flat

carbide design

Semi-Ballistic

approx. weight

5.2Kgs

Rock drill bits Shank types: M 30, M 40, M 50, M 60/65, M 380.



DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)



M shank DTH drill bit with flat face, 11 semi-ballistic carbide buttons for blasting bore holes, water well drilling.



ROSCHEN is Rock drilling tools manufacturer, We offers a full range of DTH drill bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.

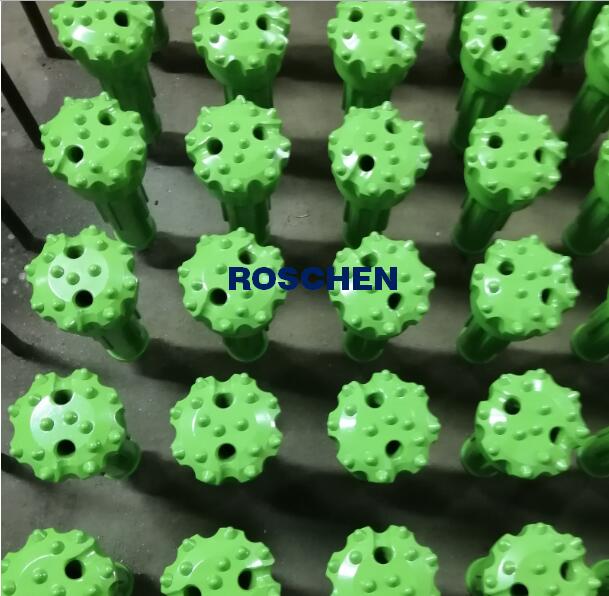

 DTH drill bit M30

Flat Face Bit

 This is an universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice.

 This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.

Semi-Ballistic/Parabolic Buttons

Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.
