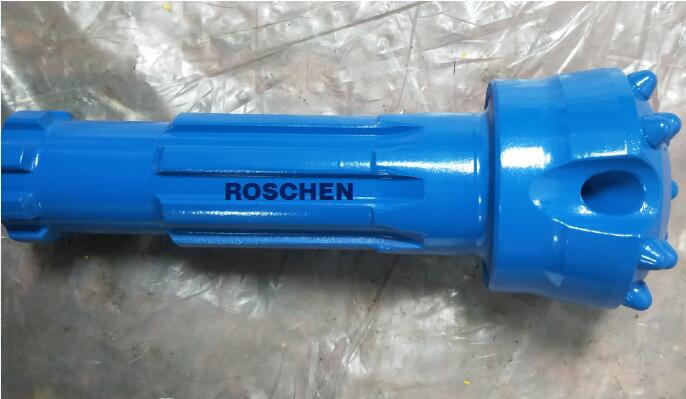

DTH drill Bit COP32-90

DTH drill Bit COP32-90
Rock drilling tools ROSCHEN has a comprehensive range of DTH drill bits with COP shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
Shank type:COP32, COP34, COP44, COP54, COP64; and DTH rock drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

Quantity:
  • COP32-90
  • ROSCHEN
  • COP32-90

Product Description

DTH drill Bit COP32-90


CODE NO.

COP32-90

Shank type

COP32

Diameter

90mm

air holes

2

gauge buttons

7*13mm

face buttons

5*12mm

Bit face type

convex face

carbide design

parabolic(semi-ballistic)

approx. weight

4.5Kgs

Designed to match all conceivable applications for water well industries, mining and construction industries. ROSCHEN is rock drilling tools manufacturer, we has a comprehensive range of DTH hammer bits with DHD shanks type for a wide range of hole sizes.

Rock drilling tools ROSCHEN has a comprehensive range of DTH drill bits with COP shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.



Shank type:COP32, COP34, COP44, COP54, COP64; and DTH rock drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

 DTH Drill bit cop32

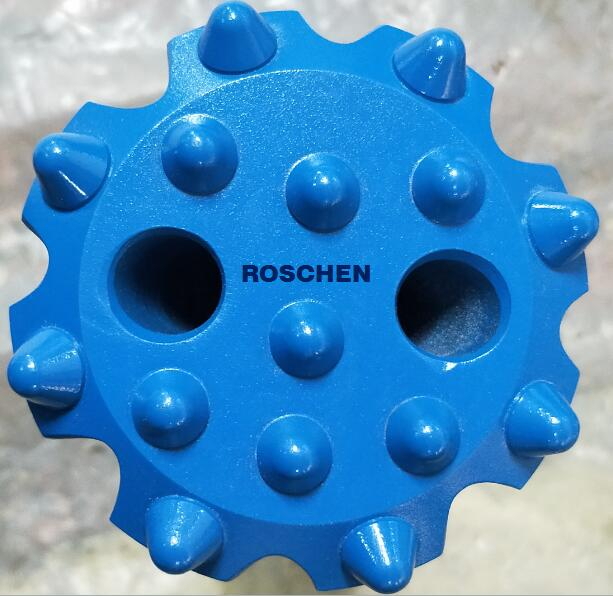

Convex Face
A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rock is too hard.
For high penetration rate in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.


Semi-Ballistic/Parabolic Buttons
Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.



Roschen’s robust DTH bits are designed to extend bit life and in-hole drilling time with hardened premium steel alloy and tungsten carbide bits. Optimized flushing holes and multiple face designs provide the ideal design for each application. Roschen’s DTH Bits use shank and spline configurations matching most industry-trusted DTH hammers.
