DTH RC Drilling Rig For Mineral Exploration Mining

Reverse Circulation Hammer Characteristics:
The internal structure of RC hammer is very simply with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.
The collection tube adapters an integrative design and can be replaced without disassembling the hammer. with carburizing Treatment, it has good abrasive resistance.
Equipped with bits designed with patent, simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.

Quantity:
  • RE540 RE040 RE542 RE543 RE545 RE547 RE052
  • ROSCHEN
  • ROS-RC-RE540 RE040 RE542 RE543 RE545 RE547 RE052

Product Description

DTH RC Drilling Rig For Mineral Exploration Mining

DTH RC Drilling Rig

RC 45 Reverse Circulation Hammer For Mineral Exploration Mining

Item:

Reverse Circulation Hammer

Model:

RC 45

Usage:

Mineral Exploration Mining

Application:

DTH RC Drilling Rig

Diameter:

116mm-152mm,76-1000mm

Quality:

Good

Reverse Circulation Hammer Characteristics:

The internal structure of RC hammer is very simply with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.

The collection tube adapters an integrative design and can be replaced without disassembling the hammer. with carburizing Treatment, it has good abrasive resistance.

Equipped with bits designed with patent, simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.


Reverse Circulation Hammer Specifications

Hammer Size

Hammer

Bit Shank

ROSCHEN Code

Hole Range (mm)

External Diameter (mm)

Length (without bit) mm

Weight (N.W.) kgs

Connection Thread

Working Pressure

3"

RE531

RE531

ROS RC 30

84-100

81

1069

29

3“ Remet

1.0-3.0Mpa

3"

RE035

RE035

ROS RC 35

84-105

85

1075

35

3“ Remet

1.0-3.0Mpa

4 1/2"

RE004

RE004

ROS RC 40

111-127

107

1252

52

3.5"-4" Remet 4" Metzke

1.0-3.0Mpa

4 1/2"

RE540

RE540

ROS RC 45

111-127

107

1252

52

3.5"-4"   Remet 4" Metzke

1.0-3.0Mpa

5"

RE040

RE040

ROS RC 50

113-130

109.5

1191

57

3.5"-4"   Remet 4" Metzke

1.0-3.0Mpa

5"

RE542

RE542

ROS RC 50

113-130

109.5

1191

57

3.5"-4"   Remet 4" Metzke

1.0-3.0Mpa

5"

RE543

RE543

ROS RC 50

120-135

116

1191

62

3.5"-4"   Remet 4" Metzke

1.0-3.0Mpa

5"

RE545

RE545

ROS RC 50

122-135

117.5

1261

65

4"-4.5" Remet   4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

RE547

RE547

ROS RC 55

130-146

124.5

1270

71

4.5" Remet   4.5" Metzke

1.5-3.5Mpa

5 1/2"

RE052

RE052

ROS RC 55

130-146

124.5

1270

71

4.5" Remet   4.5" Metzke

1.5-3.5Mpa

5 3/4"

RE054

RE054

ROS RC 55

130-146

124.5

1270

85

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

5 3/4"

RE140

RE140

ROS RC 55

130-146

124.5

1270

85

4.5"Remet 4.5" Metzke

1.5-3.5Mpa

5"

PR40

PR40

ROS RC 50

124-142

120.5

1362

80.5

3.5"-4.5" Remet 3.5"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR52

PR52

ROS RC 55

126-142

121

1227

68.5

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR52R

PR52/PR52R

ROS RC 55

130-146

124

1225

65

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR54

PR54

ROS RC 55

135-150

130

1294

84.5

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

6"

MX5456

MX5456

ROS RC 60

136-150

132

1362

90

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

6"~6 1/2"

RC62/RC62R

RC62/RC62R

ROS RC 65

152-190

146

1320

110

As Request

1.5-3.5Mpa

8"

RC82/RC82R

RC82/RC82R

ROS RC 80

190-250

180

1395

185

As Request

1.5-3.5Mpa

10"

RC100/RC100R

RC100/RC100R

ROS RC 100

250-370

240

1528

328

As Request

1.5-3.5Mpa

Notes:

Metzke, Remet thread is available!

Any special type shank of RC Hammer will be available by requests.

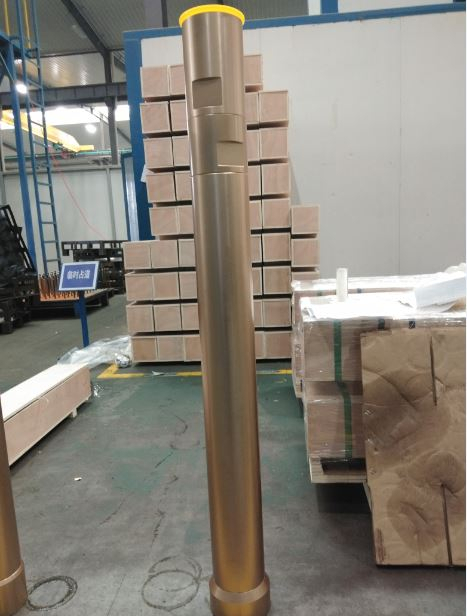

RC hammer RE543

FAQ


Terms & Conditions of Ordering:


Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.


Production time:
Generally need 15-25 days


Transportation:
By air, By Express or By sea according to your requests.
