DTH Drill Rod or DTH drill pipes

DTH drill rods (also called as drill tubes or drill pipes) are the mechanism to transmit impact force and rotation torque to DTH hammer and DTH bit, as well as offer pass for the air flow. ROSCHEN supplies a full size of friction welded DTH drill rods from 76mm to 140mm with different wall thickness.
Availability:
Quantity:

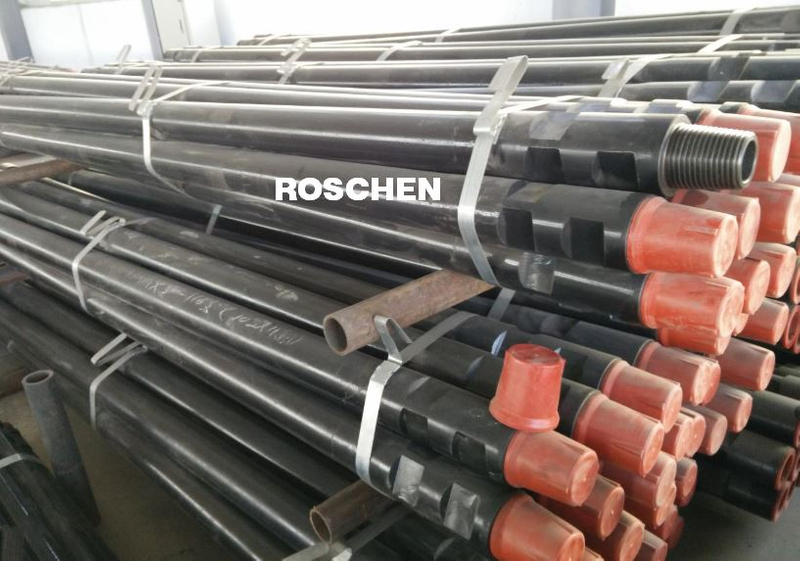

DTH Drill Rod or DTH drill pipes

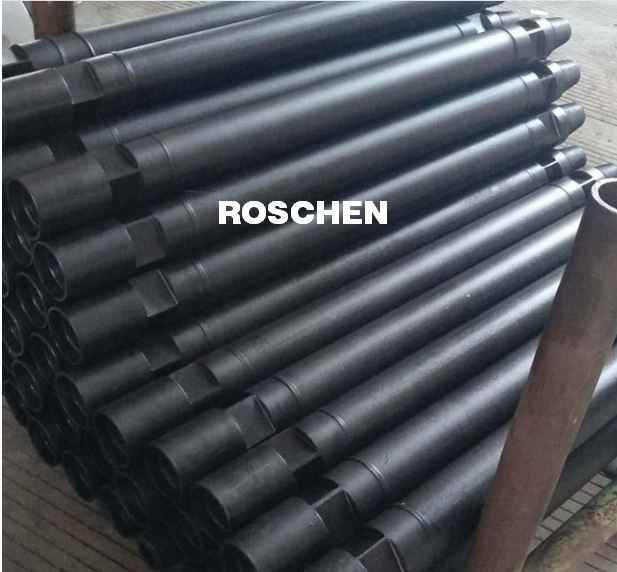

DTH Drill Rod or DTH drill pipes

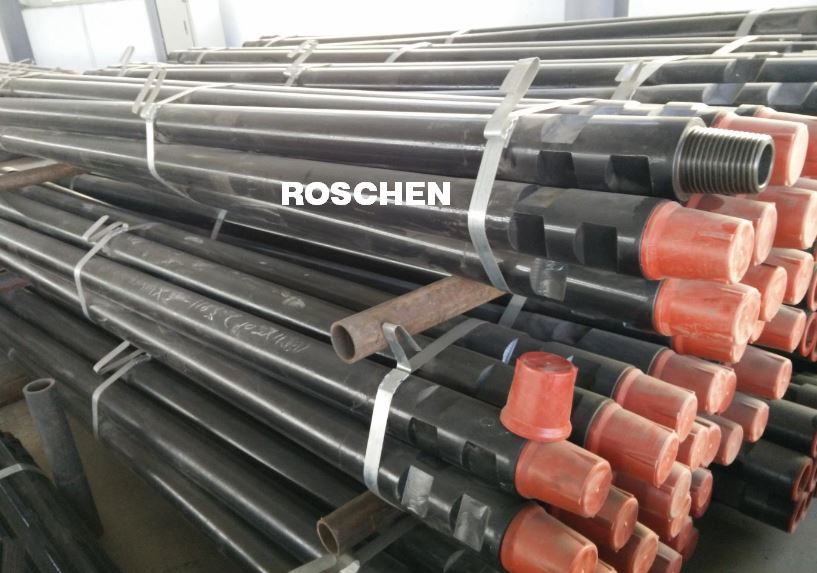

DTH Drill Rod or DTH drill pipes
  • 76mm to 140mm

  • ROSCHEN

  • ROS-DP-6 5/8 ; 10 3/4; 4 1/2; 4 ;

Product Description



DTH Drill Rod or DTH Drill Pipes

MOQ: 1 pc

Delivery time: 1 to 30 days

Packing: In bundle

Country of origin: China

Product descriptionDTH drill rods (also called as drill tubes or drill pipes) are the mechanism to transmit impact force and rotation torque to DTH hammer and DTH bit, as well as offer pass for the air flow.



DTH drill rods (also called as drill tubes or drill pipes) are the mechanism to transmit impact force and rotation torque to DTH hammer and DTH bit, as well as offer pass for the air flow. ROSCHEN supplies a full size of friction welded DTH drill rods from 76mm to 140mm with different wall thickness.

In DTH drilling, the percussive DTH hammer is located behind the drill bit, inside the hammer, a piston powered by compressed air gives the drill bit its striking power, while the DTH hammer casing gives guidance to the drill bit; the drill string rotates while the drilling hammer continuously strikes down into the rock. The DTH drill rods transmit the necessary feed force and rotation to the DTH hammer and bit, as well as compressed air for the DTH hammer, more DTH drill rods are added to the top of the drill string as the hole gets deeper. The fast hammer impact breaks hard rock into small particles, which are blown up by the air exhaust from the DTH hammer.

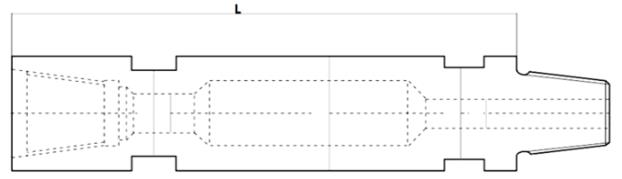

 DTH DRILL ROD Structure

Outer Diameter (mm)

Length (mm)

Wall Thickness (mm)

Connection Thread

Wrench Flat

inch

mm

3

76

1000-6000

5.00

2 3/8" API REG

57/64.5

3

76

1000-6000

6.00

2 3/8" API REG

57/64.5

3

76

1000-6000

8.00

2 3/8" API REG

57/64.5

3 1/2

89

1000-6000

6.00

2 3/8" API REG

64/70

3 1/2

89

1000-6000

8.00

2 3/8" API REG

64/70

3 1/2

89

1000-6000

10.00

2 3/8" API REG

64/70

4

102

1000-9000

8.00

2 7/8" API REG

76/89

4

102

1000-9000

10.00

2 7/8" API REG

76/89

4 1/2

114

1000-9140

6.00

3 1/2" API REG

89/95

4 1/2

114

1000-9140

8.00

3 1/2" API REG

89/95

4 1/2

114

1000-9140

10.00

3 1/2" API REG

89/95

4 1/2

114

1000-9140

12.00

3 1/2" API REG

89/95

4 1/2

114

1000-9140

18.00

3 1/2" API REG

89/95

5

127

1000-9140

10.00

3 1/2" API REG

89

5

127

1000-9140

12.00

3 1/2" API REG

89

5

127

1000-9140

14.00

3 1/2" API REG

89

5

127

1000-9140

18.00

3 1/2" API REG

89

5 1/2

140

1000-9140

9.00

4 1/2" API REG

114

5 1/2

140

1000-9140

10.00

4 1/2" API REG

114

5 1/2

140

1000-9140

12.00

4 1/2" API REG

114

5 1/2

140

1000-9140

18.00

4 1/2" API REG

114

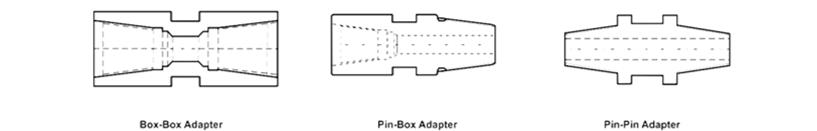

pin to box adapter

2 3/8" API REG - 2 3/8" API REG

2 7/8" API REG - 2 7/8" API REG

3 1/2" API REG - 3 1/2" API REG

2 3/8" API REG - 2 7/8" API REG

2 7/8" API REG - 3 1/2" API REG

3 1/2" API REG - 4 1/2" API REG

2 3/8" API REG - 3 1/2" API REG

2 7/8" API REG - 4 1/2" API REG

4 1/2" API REG - 4 1/2" API REG

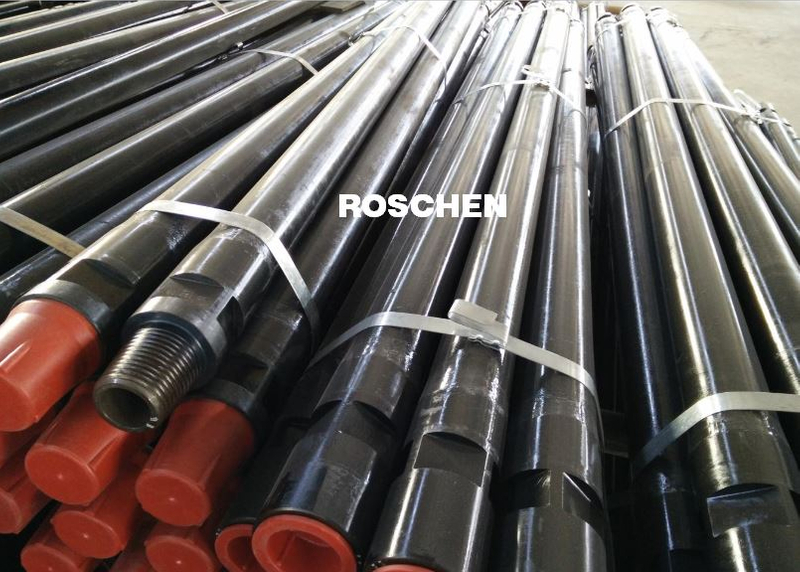

DTH drill pipe
