DTH Drill Bit QL60-178

QL shank DTH drill bit with convex face, dome carbide buttons for blasting bore holes, water well drilling.
Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

ROSHEN is rock drilling tools manufacturer, we produces reliable DTH Hammer Bits with QL shank type are available in a wide range of sizes and with a number of custom design features for optimum performance in a rock formation which are designed to match all conceivable applications for stone quarrying, water well industries, mining and construction.

Quantity:
  • QL60-178
  • ROSCHEN
  • QL60-178

Product Description

DTH Drill Bit QL60-178



Product Description

CODE NO.

QL60-178

Shank type

QL60

Diameter

178

air holes

2

gauge buttons

9*18mm

face buttons

10*16mm

Bit face type

Convex face

carbide design

Dome

approx. weight

29Kgs

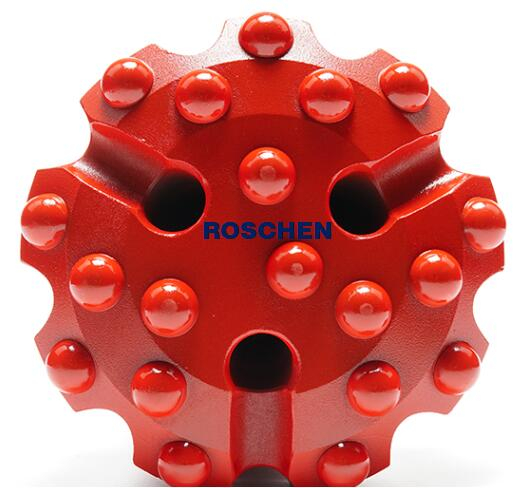

QL shank DTH drill bit with convex face, dome carbide buttons for blasting bore holes, water well drilling.

Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

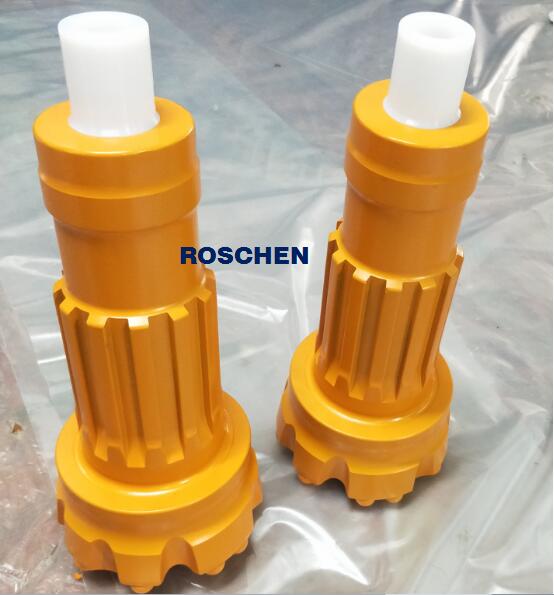

 DTH drill bit QL60 178

ROSHEN is rock drilling tools manufacturer,  we produces reliable DTH Hammer Bits with QL shank type are available in a wide range of sizes and with a number of custom design features for optimum performance in a rock formation which are designed to match all conceivable applications for stone quarrying, water well industries, mining and construction.



Convex Face

 The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.



A classic design for soft to medium hard rock formation which is not so abrasive.  This design have very excellent penetration rate but poor in hole deviation if the rock is too hard.

For high penetration rate in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.



Dome/Hemispherical Buttons

Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.



Dome/Hemispherical Buttons

 Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
