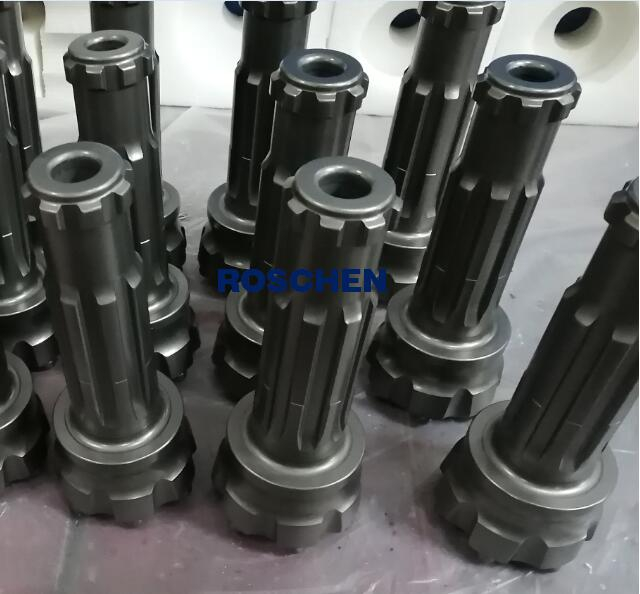

DTH Drill Bit QL40-115

Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm)
Flat Face
An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Quantity:
  • QL40-115
  • ROSCHEN
  • ROS-QL40-115

Product Description

DTH Drill Bit QL40-115



 Rock drill bits Shank type: QL40, QL50, QL60, QL80 ; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm)

CODE NO.

DTH QL40-115

Diameter

115mm

air holes

2

gauge buttons

6*14mm

front buttons

5*13mm

face design

flat

carbide design

Dome

approx. weight

9.5kgs

Down The Hole Hammer Introduction

The DTH Hammer, RC hammer is used to remove rock samples which are pushed through the machine with compressed air. When air is blown down the annulus (ring-shaped structure) of the rod, the pressure shift creates a reverse circulation, bringing the cuttings up the inner tube. When the cuttings reach a deflector box at the top of the rig, the matter is moved through a hose attached to the top of the cyclone.

The drill cuttings will travel around the cyclone until they fall through the bottom opening into a sample bag. These bags are marked with the location and depth of the place where the sample was collected and can be transported directly to the assay lab for analysis

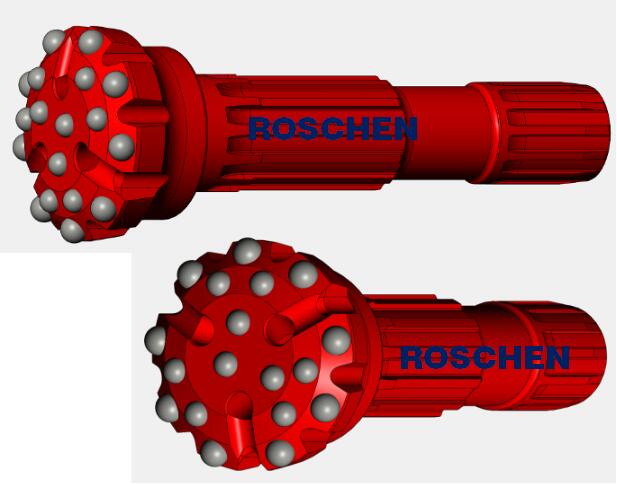

 DTH Bit QL40 115

Flat Face

An universal design, especially for hard and abrasive rock formation. Typically, flat face with hemispherical buttons design is the most popular choice. This kind of face shape is suitable for hard to very hard and abrasive rock formations in application with high air pressure. Good penetration rates an resistance to steel wash.



Dome/Hemispherical Buttons

Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.



ROSCHEN also produce all the size DTH Hammer

Down The Hole Hammer Parameters

ROSCHEN   DTH Hammers Specifications


Hammer   Size

Bit   Shank

ROSCHEN   Code

Connection   Thread

Suitable   bit

Working   pressure

Air   consumption



2"

BR2

ROS   11

     ROS 22

RD50   box

70-90mm

0.7-1.75Mpa

0.7Mpa

4.5m3/min


1.0Mpa

4m3/min


1.4Mpa

5m3/min


3"

DHD3.5

ROS   32

API   2 3/8" Reg

90-110mm

1.0-1.5Mpa

1.0Mpa

4.5m3/min


COP32/COP34


M30

1.5Mpa

9m3/min


4"

DHD340

ROS   34

API   2 3/8" Reg

110-135mm

1.0-2.5Mpa

1.0Mpa

6m3/min


COP44


QL40


SD4

1.8Mpa

10m3/min


M40

2.4Mpa

15m3/min


5"

DHD350

ROS   52

     ROS 54

API   2 3/8"Reg/API 3 1/2" Reg

135-155mm

1.0-2.5Mpa

1.0Mpa

9m3/min


COP54


QL50


SD5

1.8Mpa

15m3/min


M50

2.4Mpa

23m3/min


6"

DHD360

ROS   62

     ROS 64

API   3 1/2" Reg

155-190mm

1.0-2.5Mpa

1.0Mpa

10m3/min


COP64


QL60


SD6

1.8Mpa

20m3/min


M60

2.4Mpa

28.5m3/min


8"

DHD380

ROS   82

     ROS 84

API   4 1/2" Reg

195-254mm

1.0-2.5Mpa

1.0Mpa

15m3/min


COP84


QL80

1.8Mpa

26m3/min


SD8

2.4Mpa

34m3/min


M80/M85


10"

SD10

ROS   100

API   6 5/8" Reg

254-311mm

1.0-2.5Mpa

1.0Mpa

22m3/min


Numa100

1.8Mpa

40m3/min


ROS   100

2.4Mpa

55m3/min


12"

DHD1120

ROS   120

API   6 5/8" Reg

305-445mm

1.0-2.5Mpa

1.0Mpa

30m3/min


SD12

1.8Mpa

56m3/min


Numa120

2.4Mpa

78m3/min


Notes:


Metzke,   Remet thread is available!


Any   special type shank of DTH Hammer will be available by requests.
