DTH Drill Bit PD882-254

Rock drill bits Shank type: PD882; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

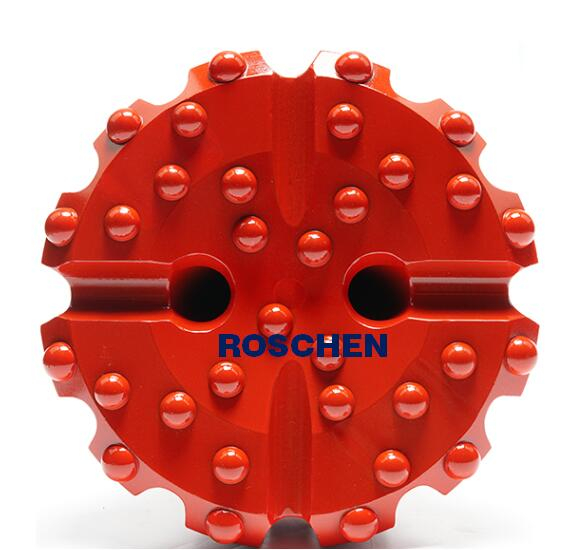

PD shank DTH drill bit with 254mm diameter, concave face, dome carbide buttons for blasting bore holes, water well drilling.
ROSCHEN is rock drill bits manufacturer, we introduces new shank design for DTH hammer bit: PD shank. To match with our own designed Hammer.

Quantity:
  • PD882-254
  • ROSCHEN
  • ROS-PD882-254

Product Description

DTH Drill Bit PD882-254

Product Description



Rock drill bits Shank type: PD882; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).



PD shank DTH drill bit with 254mm diameter, concave face, dome carbide buttons for blasting bore holes, water well drilling.

CODE NO.

PD882-254

Diameter

254mm

air holes

2

gauge buttons

12

front buttons

20

face design

Concave

carbide design

 Dome

Shank Type

PD882

ROSCHEN is rock drill bits manufacturer, we introduces new shank design for DTH hammer bit: PD shank. To match with our own designed Hammer.

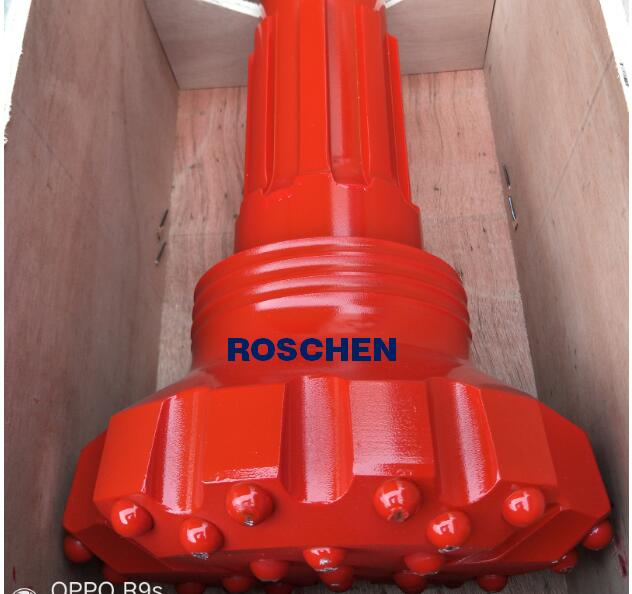

 DTH Bit PD882 254

PD shank Down The Hole Drill Bits are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable applications for water well drilling, stone quarrying, mining and construction.



Dome/Hemispherical Buttons

Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Concave Face

The all around application rock drill bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.





DTH bit is also our main product. After mang years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.



1.high and low air pressure down-the-hole drill bits
2.Low air pressure holeDia.:65-220mm

3.High air pressure hole Dia.:85-305mm

4.Face type:drop center/concave/convex/double gauge/flat

5.Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
