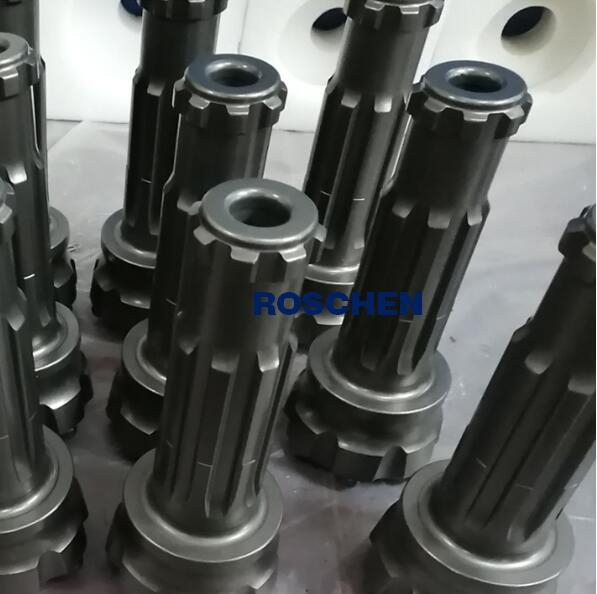

DTH Drill Bit PD480-115

PD shank DTH drill bit with 115mm diameter, convex face, semi-ballistic / dome carbide buttons for blasting bore holes, water well drilling.
Rock drill bits Shank type: PD480; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).
PD shank Down The Hole Drill Bits are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable applications for water well drilling, stone quarrying, mining and construction.
Availability:
Quantity:
 DTH Drill Bit PD480-115
 DTH Drill Bit PD480-115
  • PD480-115

  • ROSCHEN

  • ROS-PD480-115

Product Description

DTH Drill Bit PD480-115



PD shank DTH drill bit with 115mm diameter, convex face, semi-ballistic / dome carbide buttons for blasting bore holes, water well drilling.



Rock drill bits Shank type: PD480; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).


CODE NO.

PD480-115

Diameter

115mm

air holes

2

gauge buttons

7

face buttons

6

face design

concave face

carbide design

gauge dome,   front semi-ballistic


PD shank Down The Hole Drill Bits are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable applications for water well drilling, stone quarrying, mining and construction.

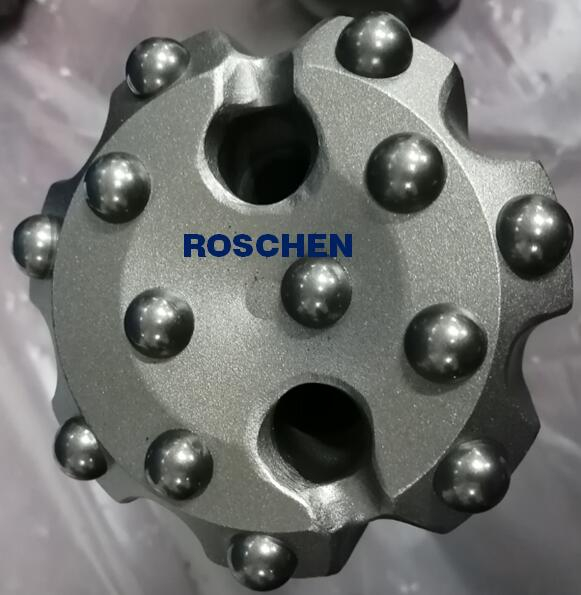

 DTH BIT PD480 115

Convex Face

The all around application bit face designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.



A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if the rock is too hard.

For high penetration rate in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.



Dome/Hemispherical Buttons

Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.



Dth Hammer Bit Advantages Description



1  Quality 95% quality similarity with world top class brands, such as atlas ingersoll rand etc.



2  Shank Type Our products can be suitable for many types of DTH Hammer, such as QL, Mission, COP, IR, SD,HD,DHD,BR,CIR etc.



3   Materials Our products adopt high-quality raw materials, advanced technology and passed through strictly inspection, making sure the high quality of every DTH bits



4   Advantages Our DTH bits can transmit intensive impact energy into the rock with the least loss of energy, which can help you improve efficiency and reduce costs



5   Product life ROSCHEN select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased.
