DTH Drill Bit DHD340A-115

DHD shank DTH hammer bit with convex face, dome/semi-ballistic carbide buttons for blasting bore holes, water well drilling.
Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.
DTH rock drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)

Quantity:
  • DHD340A-115
  • ROSCHEN
  • DHD340A-115

Product Description

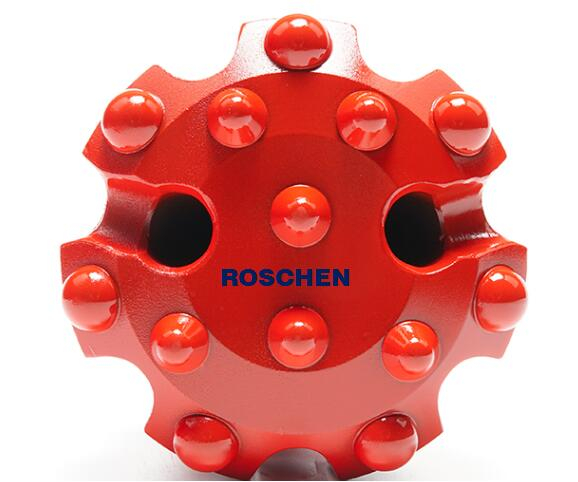

DTH Drill Bit DHD340A-115

Product Description

CODE NO.

DHD340A-115

Shank type

DHD340A

Diameter

115

air holes

2

gauge buttons

7*14mm

face buttons

5*13mm

Bit face type

Convex face

carbide design

Gauge Dome,
  Front Semi-Ballistic

approx. weight

9.0 Kgs

DHD shank DTH hammer bit with convex face, dome/semi-ballistic carbide buttons for blasting bore holes, water well drilling.

Shank types: DHD3.5, DHD340A, DHD350R, DHD360, DHD380.

DTH rock drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-305mm)

 DHD340A 115

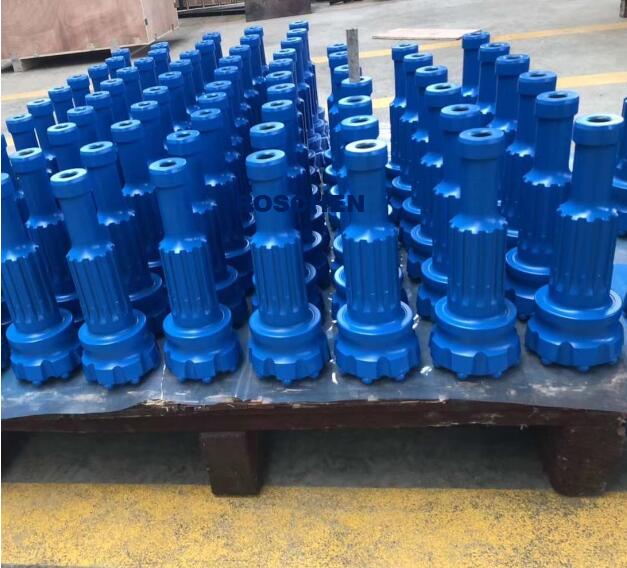

ROSCHEN has rock drilling tools factory and we has a comprehensive range of DTH hammer bits with DHD shanks type for a wide range of hole sizes, which are designed to match all conceivable applications for water well industries, mining and construction.



Convex Face

 A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.

 For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.



Dome/Hemispherical Buttons

 Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

Semi-Ballistic/Parabolic Buttons



Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.



Ballistic Buttons

Similar to parabolic/semi-ballistic buttons, used for soft to medium hard and not so abrasive rock formation, excellent in penetration rate.
