DTH Drill Bit DHD3.5-100

DTH Drill Bit DHD3.5-100

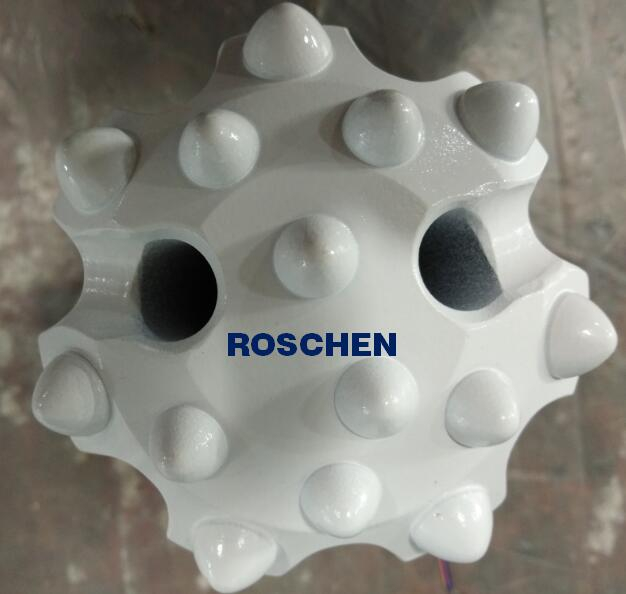

DHD shank DTH drill bit with convex face, 13 semi-ballistic carbide buttons for blasting bore holes, water well drilling.
ROSCHEN offers an extensive range of DTH hammer bits with shank type: DHD3.5, DHD340A, DHD3.5R, DHD360, DHD380; and DTH bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

Quantity:
  • DHD3.5-100
  • ROSCHEN
  • ROS-DHD3.5-100

Product Description

DTH Drill Bit DHD3.5-100



DHD shank DTH drill bit with convex face, 13 semi-ballistic carbide buttons for blasting bore holes, water well drilling.


ROSCHEN offers an extensive range of DTH hammer bits with shank type: DHD3.5, DHD340A, DHD3.5R, DHD360, DHD380; and DTH bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

CODE NO.

DHD3.5-100

Diameter

100mm

air holes

2

gauge buttons

7*13mm

front buttons

6*12mm

face design

Convex face

carbide design

Parabolic(semi-ballistic)

approx. weight

5kgs

Rock drilling tools:

Bit shank type of DHD series DTH Bits are designed to fit DTH hammers, which is the most popular design for blasting bore holes, water well drilling. In conjunction with DTH hammers, DTH hammer bits with DHD shank type are designed with a splined drive for rotating the bit in the ground. Rock drill bits in DHD shank are available in different sizes and different styles so they can drill a wide range of hole sizes.

 It is usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.

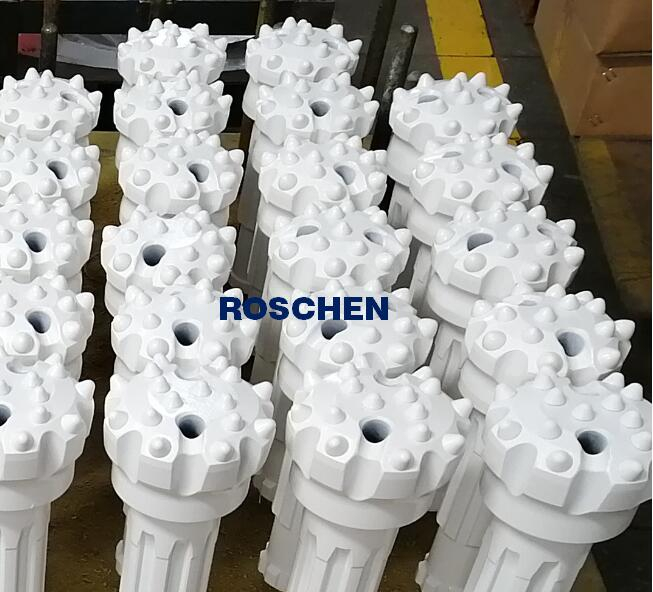

 DTH bit DHD3.5 100

Down The Hole Hammer Introduction



1.    superior alloy steel:

Hardness and wear resistance combined alloy steel, supplied by national top level special steel manufacturer superior

2.    Longer Service Life:

All parts of the DTH hammer and bits are heat treated,longer life,less failure.

3.    High Efficiency:

More efficient energy transfer, faster drilling speed,15%-30% faster penetration than conventional DTH hammer.

4.    Saving Oil:

Lower air consumption and lower oil consumption.

5. Working pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa)



Down The Hole Hammer Features:



1. Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 2.0 Mpa to 2.6 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

2. Recommended for eliminating hole deviation.

3. Widely used drifting and tunneling.

4. Bit face design is ideal for medium-hard to hard abrasive rock.



Dth Hammer Drilling Tools Specifications:



ROSCHEN DTH Hammers Specifications


Hammer Size

Bit Shank

ROSCHEN Code

Connection Thread

Suitable bit

Working pressure

Air consumption



2"

BR2

ROS 11 ROS 22

RD50 box

70-90mm

0.7-1.75Mpa

0.7Mpa

4.5m3/min


1.0Mpa

4m3/min


1.4Mpa

5m3/min


3"

DHD3.5

ROS 32

API 2 3/8" Reg

90-110mm

1.0-1.5Mpa

1.0Mpa

4.5m3/min


COP32/COP34


M30

1.5Mpa

9m3/min


4"

DHD340

ROS 34

API 2 3/8" Reg

110-135mm

1.0-2.5Mpa

1.0Mpa

6m3/min


COP44


QL40


SD4

1.8Mpa

10m3/min


M40

2.4Mpa

15m3/min


5"

DHD350

ROS 52 ROS 54

API 2 3/8"Reg/API 3 1/2" Reg

135-155mm

1.0-2.5Mpa

1.0Mpa

9m3/min


COP54


QL50


SD5

1.8Mpa

15m3/min


M50

2.4Mpa

23m3/min


6"

DHD360

ROS 62 ROS 64

API 3 1/2" Reg

155-190mm

1.0-2.5Mpa

1.0Mpa

10m3/min


COP64


QL60


SD6

1.8Mpa

20m3/min


M60

2.4Mpa

28.5m3/min


8"

DHD380

ROS 82 ROS 84

API 4 1/2" Reg

195-254mm

1.0-2.5Mpa

1.0Mpa

15m3/min


COP84


QL80

1.8Mpa

26m3/min


SD8

2.4Mpa

34m3/min


M80/M85


10"

SD10

ROS 100

API 6 5/8" Reg

254-311mm

1.0-2.5Mpa

1.0Mpa

22m3/min


Numa100

1.8Mpa

40m3/min


ROS 100

2.4Mpa

55m3/min


12"

DHD1120

ROS 120

API 6 5/8" Reg

305-445mm

1.0-2.5Mpa

1.0Mpa

30m3/min


SD12

1.8Mpa

56m3/min


Numa120

2.4Mpa

78m3/min


Notes: Any special size of DTH bits will be available by requests.


Metzke, Remet thread is available!
