DTH Drill Bit COP64-203

DTH Drill Bit COP64-203
ROSCHEN has dedicated in drilling line for many years to produce drilling tools. For DTH rock hammer and bits, we have
1) Bits for Low Pressure DTH Hammers
2) Bits for Medium & High Pressure DTH Hammers
3) Bits for High Efficiency High Pressure DTH Hammers
4) Bits for Through Reverse Circulation DTH Hammers

Quantity:
  • COP64-203
  • ROSCHEN
  • COP64-203

Product Description

DTH Drill Bit COP64-203

Production Intruduction

CODE NO.

COP64-203

Shank type

COP64

Diameter

203mm

air holes

3

gauge buttons

10*18mm

face buttons

13*16mm

Bit face type

convex face

carbide design

Dome

approx. weight

32Kgs


Rock Drill Tools Description:



ROSCHEN has dedicated in drilling line for many years to produce drilling tools. For DTH rock hammer and bits, we have

1)     Bits for Low Pressure DTH Hammers

2)     Bits for Medium & High Pressure DTH Hammers

3)     Bits for High Efficiency High Pressure DTH Hammers

4)     Bits for Through Reverse Circulation DTH Hammers

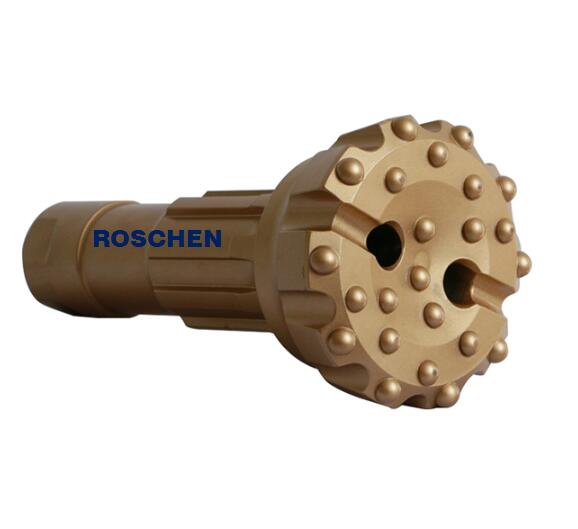

 DTH ROCK BIT cop64 203

As the Rock drilling tools manufacturer, ROSCHEN can supply DTH Drill Bits with COP shank type they are available in a wide range of sizes. ROSCHEN DTH rock bits are with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable applications for water well industries, mining and construction.

Rock drill bits Shank type:COP32, COP34, COP44, COP54, COP64; and DTH hammer bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

Concave Face
This bit face is designed specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.

COP shank DTH hammer bit with concave face, dome carbide buttons for water well industries, mining and construction
