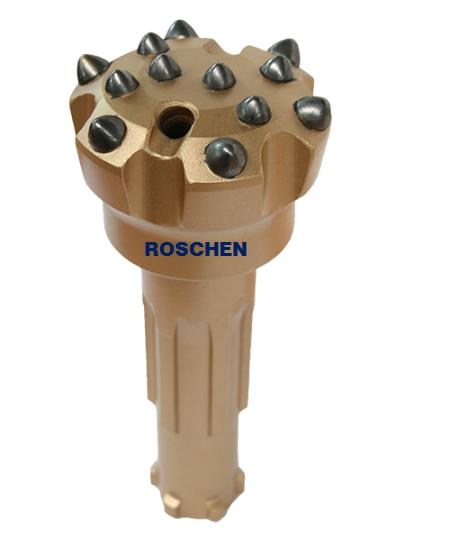

DTH Drill Bit BR3-98

BR shank DTH drill bit with flat face, 12 semi-ballistic carbide buttons.
Rock drill bits Shank type: BR2, BR3; and DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).
Rock drilling tools manufacturer ROSCHEN supplies high quality DTH Hammer Bits with BR shank type are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation, designed to match all conceivable applications for water well drilling, stone quarrying, mining and construction.

Quantity:
  • BR3-98
  • ROSCHEN
  • BR3-98

Product Description

DTH Drill Bit BR3-98


Product Description


CODE NO.

BR3-98

Shank type

BR3

Diameter

98mm

air holes

2

gauge buttons

6*13mm

face buttons

6*12mm

Bit face type

concave face

carbide design

parabolic(semi-ballisic)

approx. weight

4.8Kgs


BR shank DTH drill bit with flat face, 12 semi-ballistic carbide buttons.

Rock drill bits Shank type: BR2, BR3; and DTH drill bits hole diameter: 3'', 4'', 5'', 6'', 8''(85mm-350mm).

 DTH drill bit BR3 98

Convex Face

A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.



Semi-Ballistic/Parabolic Buttons

Excellent penetration rate, but only suited to medium hard and not so very abrasive rock formation.



Rock drilling tools manufacturer ROSCHEN supplies high quality DTH Hammer Bits with BR shank type are available in a various range of sizes and with a number of custom design features for optimum performance in a rock formation, designed to match all conceivable applications for water well drilling, stone quarrying, mining and construction.
