Core barrel HWL/ NWL/ PWL

1. TT-46 core barrel TT56 core barrel
2. T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel
3. T6-76 core barrel T6-86 core barrel T6-101 double/triple tube core barrel T6-116 double/triple tube core barrel T6-131 double/triple tube core barrel, T6-131 core barrel T6S core barrel etc.
4. NMLC double/triple tube core barrel, HMLC double/triple tube core barrel
5. HWF double/triple tube core barrel, PWF core barrel
6. NWG single/double tube core barrel, HWG single/double tube core barrel
7. NX single/double tube core barrel, HX single/double tube core barrel
8. LTK48 core barrel
9. M101 core barrel
10. 412 F core barrel

Quantity:
  • HWL/ NWL/ PWL
  • ROSCHEN
  • ROS-WCB-HWL/ NWL/ PWL

Product Description

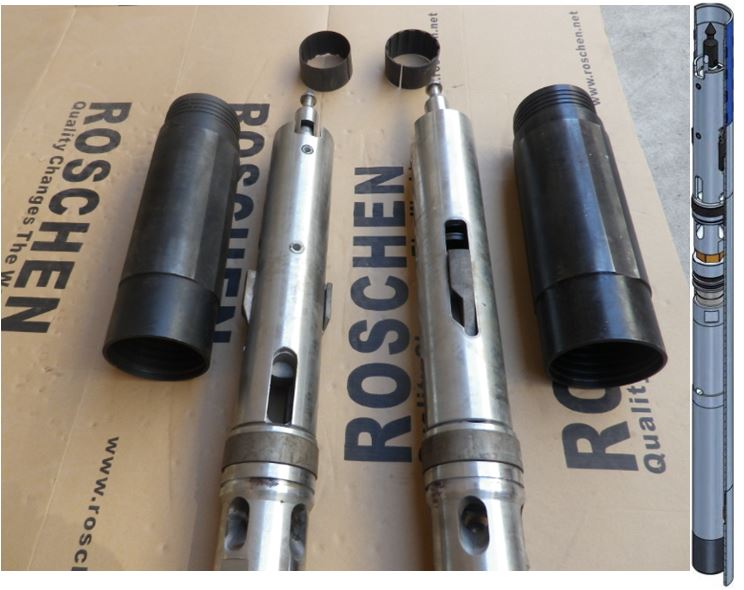

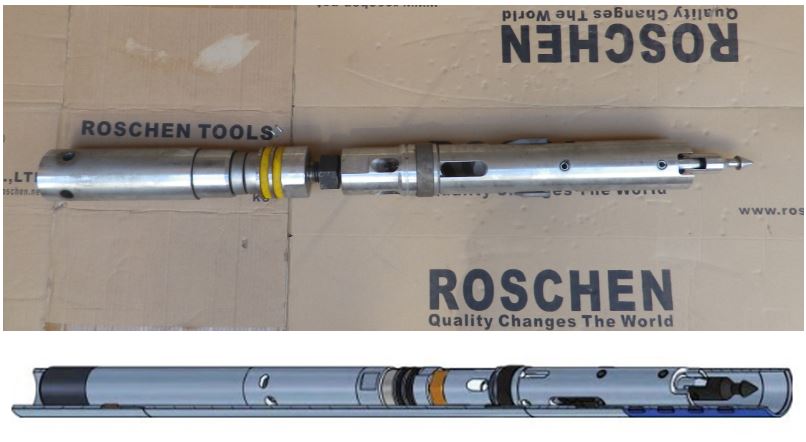

Core barrel HWL/ NWL/ PWL



Key spec of Core barrel HWL/ NWL/ PWL

Drilling   Parameters

Nominal diameter

Hole   diameter(mm)

Core   diameter(mm)

BWL

6000

3640

NWL/ NWL-3

7570

4760/4500

HWL/ HWL-3

9600

6350/6110

PWL/ PWL-3

12260

8500/8300



This Core barrel system is particularly suitable for deep boreholes.

 The working system is noticeably different from conventional methods, but it is still a double tube drilling system.

 The fundamental difference is that the inner tube is lowered to the working position inside the drill string and is raised to the surface once it is full, by means of a fast acting cable. As the depth of the drill advances, drill rods are added without removing the core barrel.

 You just need to remove the drill string to change the core bit. Thus there is a significant increase in the useful time of drilling. Also conversion kits and spare parts.

 The core barrels are supplied without bit and without reamning, since depending on the formation to be drilled and the selected core barrel, the use of tungsten carbide, carbotec, diamond, tricone or threewing, will be recommended.



Roschen manufacture differenct types of the core barrels with high quality.



1.    TT-46 core barrel TT56 core barrel

2.    T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel

3.    T6-76 core barrel T6-86 core barrel T6-101 double/triple tube core barrel T6-116 double/triple tube core barrel T6-131 double/triple tube core barrel, T6-131 core barrel T6S core barrel etc.

4.    NMLC double/triple tube core barrel, HMLC double/triple tube core barrel

5.    HWF double/triple tube core barrel, PWF core barrel

6.    NWG single/double tube core barrel, HWG single/double tube core barrel

7.    NX single/double tube core barrel, HX single/double tube core barrel

8.    LTK48 core barrel

9.    M101 core barrel

10. 412 F core barrel

11. Chinese Standard: Wireline 56, wireline 59, wireline 75, wireline 91...

Wire line core barrel

double tube core barrel

single tube core barrel

triple tube core barrel

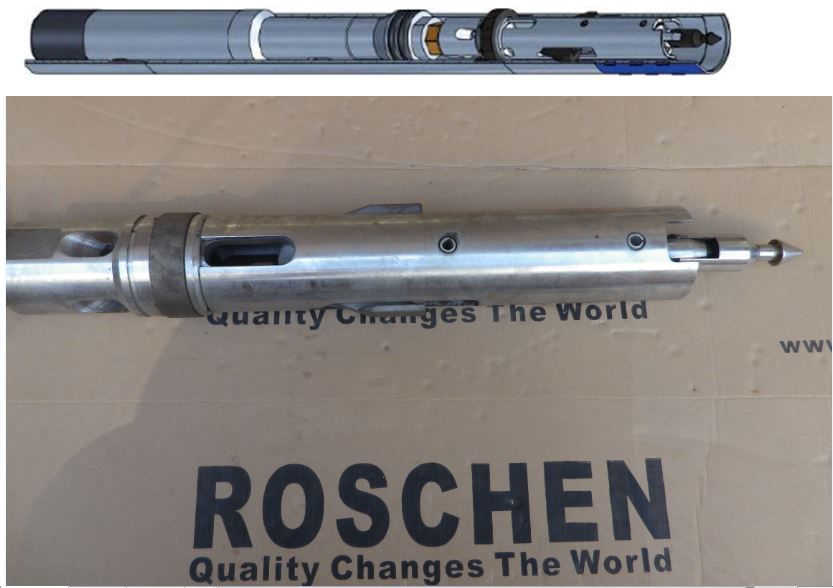

core barrel PWL

Diamond core drill bits and   diamond non-core drill bits Specifications

A-Gauge Core Bits:

A, A-RSG, AWG(AX), AWM, AWT,   LTK48

B-Gauge Core Bits:

B, B-RSG, B-2.400, B3,   BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits:

N, NMLC, NWG(NX), NWM, NWT,   TNW

H-Gauge Core Bits:

N, HMLC, HWF-Long,   HWF-Short, HWG(HX), HWT

P- Gauge Core Bits:

P, P3, PWF-Long, PWF-Short

S- Gauge Core Bits:

SWF-Long, SWF-Short

U- Gauge Core Bits:

UWF-Long, UWF-Short

Z- Gauge Core Bits:

ZWF-Long, ZWF-Short

T, TT, T2 &TB Series   Metric Core Bits:

T36, TT46, T2-46, TB56,   TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101,   T2-101 coreline

T6 Series Metric Core Bits:

T6-76, T6-86, T6-101,   T6-116, T6-131, T6-146

T6S Series Metric Core Bits:

T6S-76, T6S-86, T6S-101,   T6S-116, T6S-131, T6S-146

Q Series:

AQ, BQ, NQ, HQ, PQ/AQTK,   BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 Series:

T2 46, T2 56, T2 66, T2 76,   T2 86, T2 101

T6 Series:

T6 76, T6 86, T6 101, T6   116, T6 131, T6 146, T6S 101

T Series:

T36, T46, T56, T66, T76, T86

Z Series:

Z46, Z56, Z66, Z76, Z86,   Z101, Z116, Z131, Z146

B Series:

B36, B46, B56, B66, B76,   B86, B101, B116, B131, B146

WF Series:

HWF, PWF, SWF, UWF, ZWF

WT Series:

RWT, EWT, AWT, BWT, NWT, HWT

WM Series:

EWM, AWM, BWM, NWM

WG Series:

EWG, AWG, BWG, NWG, HWG

Others:

NMLC, HMLC, LTK48, LTK60,   BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16,   NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.

Customized standard

CDDA, DCAMA, Crealius, and   ISO sizes .
