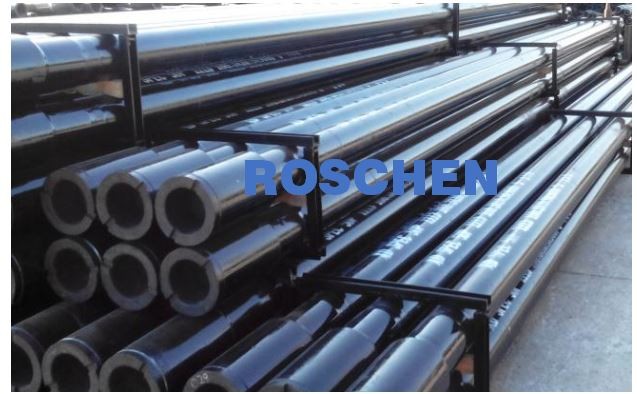

Connection 5 1/2 FH Heavy Weight Drill Pipe 5 1/2 inch

Heavy weight drill pipe is well-suited for directional drilling applications. Because it bends easily, heavy weight drill pipe simplifies directional control and minimizes connection fatigue problems that are common in high-angle or horizontal drilling.For extended reach and horizontal wells, high-strength heavy weight drill pipe is often used high in the hole to apply weight on the bit. This is especially true for wells in which the total vertical depth to total measured depth ratio is low.
Availability:
Quantity:
  • HWDP 5 1/2
  • ROSCHEN
  • ROS-HWDP-5 1/2

Product Description


Heavy Weight Drill Pipe 5 1/2 inch Connection 5 1/2 FH


Standard HWDP was developed to provide a gradual transition from heavy drill collars to relatively lightweight drill pipe.



This intermediate-weight pipe has a wall thickness of approximately 1 in. and helps prevent stress concentration at the top of the drill collar section. Heavy weight drill pipe also enables drilling at higher RPMs, reducing torque and differential pressure sticking.



Heavy weight drill pipe is well-suited for directional drilling applications. Because it bends easily, heavy weight drill pipe simplifies directional control and minimizes connection fatigue problems that are common in high-angle or horizontal drilling.



For extended reach and horizontal wells, high-strength heavy weight drill pipe is often used high in the hole to apply weight on the bit. This is especially true for wells in which the total vertical depth to total measured depth ratio is low.

Nominal Size   (Tube OD)

Tube

Tool Joint (in)


ID (in)

Elevator Upset

Center Upset

Connection Type   & Size

OD (in)

ID (in)

2-7/8

1-1/2

2-15/16

3-5/16

NC 26 (2-3/8 IF)

3-3/8

1-1/2

3-1/2

2-1/16

3-7/8

4

NC 38 (3-1/2 IF)

4-3/4 (4-7/8,5)

2-1/16

3-1/2

2-1/4

3-7/8

4

NC 38 (3-1/2 IF)

4-3/4 (4-7/8,5)

2-1/4

4

2-9/16

4-3/16

4-1/2

NC 40 (4FH)

5-1/4

2-9/16

4

2-1/2

4-3/16

4-1/2

NC 40 (4 FH)

5-1/4

2-1/2

4-1/2

2-3/4

4-11/16

5

NC 46 (4 IF)

6-1/4

2-3/4

4-1/2

2-11/16

4-11/16

5

NC 46 (4 IF)

6-1/4

2-11/16

4-1/2

2-13/16

4-11/16

5

NC 46 (4 IF)

6-1/4

2-13/16

5

3

5-1/8

5-1/2

NC 50 (4-1/2 IF)

6-5/8

3

5-1/2

3-1/4

5-11/16

6

5-1/2 FH

7 (7-1/4,7-1/2)

3-1/4

5-1/2

3-3/8

5-11/16

6

5-1/2 FH

7 (7-1/4,7-1/2)

3-3/8

5-1/2

3-7/8

5-11/16

6

5-1/2 FH

7 (7-1/4,7-1/2)

3-7/8

5-1/2

4

5-11/16

6

5-1/2 FH

7 (7-1/4,7-1/2)

4

6-5/8

4

6-15/16

7-1/8

6-5/8 FH

8 (8-1/4,8-1/2)

4

6-5/8

4-1/2

6-15/16

7-1/8

6-5/8 FH

8 (8-1/4,8-1/2)

4-1/2

6-5/8

5

6-15/16

7-1/8

6-5/8 FH

8 (8-1/4,8-1/2)

5

Standard   Features

API Bore Back   Box Connection

API Stress Relief   Grooved Pin

Cold Rolled   Thread Roots

Phosphate   coated connections

Options

Internal   Plastic Coating

Hardband Type   especially on box and pin tool joint

Proprietary   Connections

Make and Break   Test

Protection

Pressed steel   thread protectors

Mill Test   Certificates

Issued in   accordance with API Spec 7/7-1 and API RP7G .

Third Party   Inspection can be performed on request at buyer’s care and expense.

Our high-strength grades help you drill safer and deeper with reduced hook loads and improved hydraulics. Our sour service grades deliver outstanding performance while resisting sulfide stress cracking , helping you drill safely and efficiently in harsh, sour conditions.



our mission is to increase efficiency, improve performance, and reduce your total cost of ownership. From the design room to the wellsite, we produce the industry’s highest-quality, innovative drill pipe technologies that will help you achieve lasting success.



With our worldwide operations, expert engineering and design resources, and global service network, we are the source for all your drill stem needs.
