BWG NWG HWG Impregnated Diamond Core Drilling Bits

ROSCHEN also we supply with :
1. surface set diamond core bits,
2. tungsten carbide core bits,
3. PDC core bits, TSP(geocube) core bits,
4. electroplated diamond core drill bits.
5. coring bits,
6. reaming shells,
7. core barrels,
8. drilling rods,
9. overshots,
10. diamond casing shoe bit
11. other diamond drilling equipment
12. drill rigs

Quantity:
  • BWG NWG HWG
  • ROSCHEN
  • ROS-IDC-BWG NWG HWG

Product Description

Impregnated diamond core drilling bits BWG NWG HWG


ROSCHEN manufacture diamond bit, diamond core bit, impregnated diamond core bits. Our standard matrix height is 6mm, the working part is also called "Crown". Matrix height can also be 8mm,9mm,10mm,12mm. And different color selections for drilling different rocks from soft,medium to hard, ultra hard such as: Clay, Sandstone, Gypsum, Talc, Tuff, Shale, Serpentinite, Calcite; Siltstone, Limestone, Marble, Andesite, Dolomite, Reinforced concrete, Porphyry; Basalt, Pegmatite, Gabbro, Schist, Norite, Syenite, Peridotite; Amphibolite, Diorite, Gneiss, Granite, Rhyolite, Quartzite; Ironstone, Taconite, Jasperite, Quartz, Chert.

ROSCHEN also we supply with :

1.      surface set diamond core bits,

2.      tungsten carbide core bits,

3.      PDC core bits, TSP(geocube) core bits,

4.      electroplated diamond core drill bits.

5.      coring bits,

6.      reaming shells,

7.      core barrels,

8.      drilling rods,

9.      overshots,

10.   diamond casing shoe bit

11.   other diamond drilling equipment

12.    drill rigs

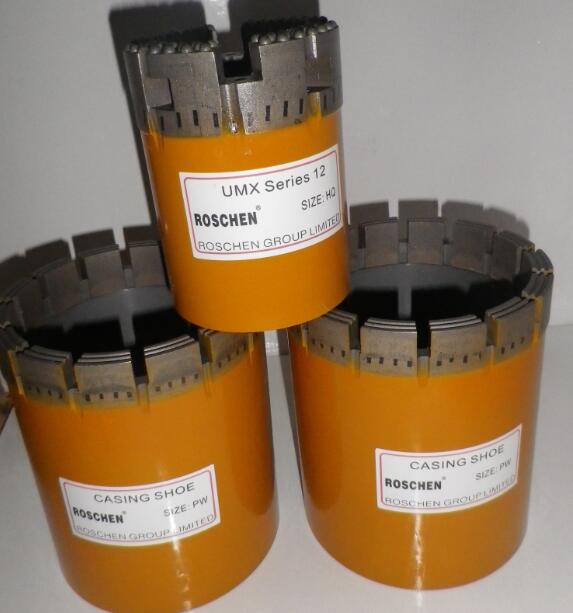

impregnent diamond core bit

All the Impregnated Diamond Core Bits sizes:

Wireline series:

 Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3,   WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3,   NQ2, WL-56, WL-66, WL-76

T2 /   T series:

T2 46, T2 56, T2   66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86

TT series:

TT 46, TT 56

T6 series:

 T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series:

T6S 76, T6S 86,   T6S 101, T6S 116, T6S 131, T6S 146

B series:

B46, B56, B66,   B76, B86, B101, B116, B131, B146

MLC series:

 NMLC, HMLC

LTK series:

 LTK48, LTK60

WF series:

HWF, PWF, SWF,   UWF, ZWF

WT series:

 RWT, EWT, AWT, BWT, NWT, HWT(Single Tube,   Double Tube)

WG series:

 EWG, AWG, BWG, NWG, HWG(Single Tube, Double   Tube)

WM series:

EWM, AWM, BWM,   NWM, HWM

Other sizes:

 AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F,   BTW, TBW, NTW, HTW, T6H

Chinese   standard:

 56mm,   59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm,   275mm

Russian   standard:

59, 76, 93, 112,   132, 152 mm

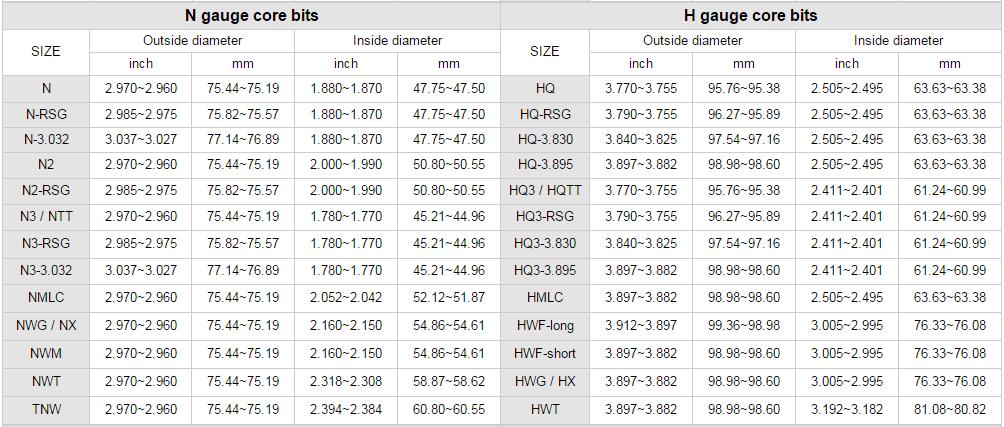

Details spec. for example :

N H gauge core bits spec
