9-7/8inch IADC617 TCL Tricone Bit with Tungsten carbide

9-7/8inch with IADC Code 617 Tricone Bit with Tungsten Carbide Insert face design.
Tricone bit, are widely used in mining, oil well, water well, thermal drilling. It is the most versatile drill bit on the market. and it is also the best drill bit in most styles of drilling. ROSCHEN Tools always has the right Tri Cone Drill Bit for you no matter when you are drilling a water well or an oil well.

Quantity:
  • 9-7/8inch
  • ROSCHEN
  • ROS-TCI-251

Product Description

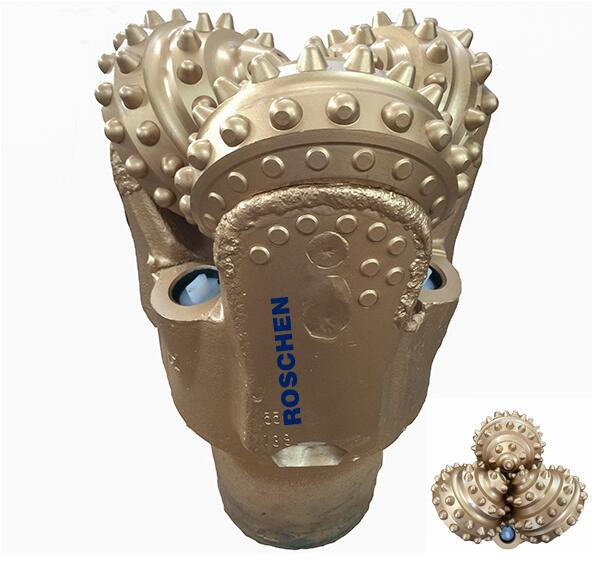

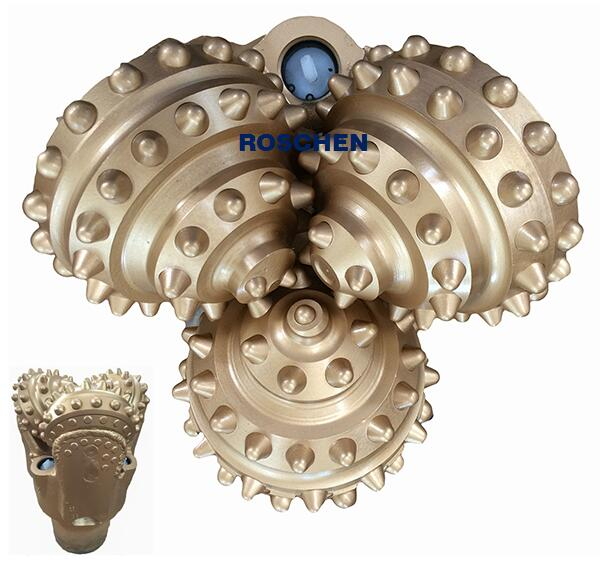

Tricone drill Bit with Tungsten carbide 9-7/8'' IADC617



 TCI tricone drill bit description

      The Tri cone drill Bit is the most versatile drill bit on the market. It is the go to drill bit in most styles of drilling. ROSCHEN Tools always has the right Tri Cone Drill Bit for you no matter when you are drilling a water well or an oil well.
ROSCHEN offers new steel tooth and tungsten carbide insert tri cone bit in sizes from 3 1/2" – 26", with open or sealed bearings, regular or jet circulation, and a wide range of additional custom features for ideal performance in any formation.
Tri cone bit can be customized optimize penetration rates and bit life in particular formations and under specific operating weights and rotation speeds.


9-7/8'' with IADC Code 617 Tricone Bit with Tungsten Carbide Insert face design.

Tricone bit, are widely used in mining, oil well, water well, thermal drilling.


9-7/8''  TCI drill bit parameter:

Diameter

9 7/8inch/251mm

Pin type Dimensions

6 5/8" API

Teeth Type

TCI

IADC Code

617

tricone drill bit

Tricone Drill Bit features



1. Cutting Structure of this type sealed and non-sealed TCI tricone bits :

The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces for steel tooth bit.



2. Gauge Structure of this type TCI tricone rock bits :

Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard-facing on the shirttail increases gauge holding capability and bearing life.



3. Bearing Structure of this type TCI tricone rock bits :

High precision roller bearing with two thrust faces. Ball lock the cone. Thrust faces hard-face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
