NMLC, HMLC, 3C, 4C, 6C, 8C
ROSCHEN
ROS-CB-NMLC, HMLC, 3C, 4C, 6C, 8C
Product Description

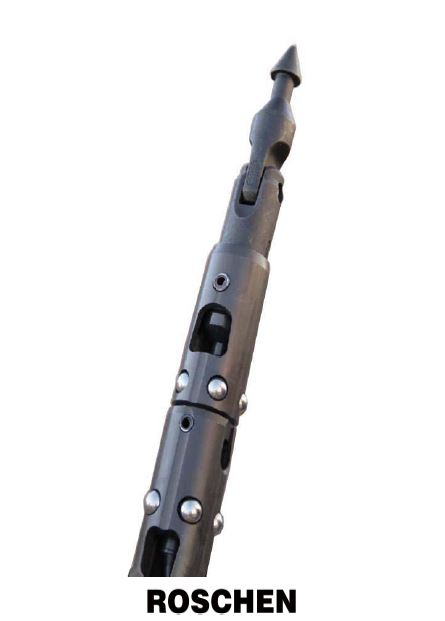

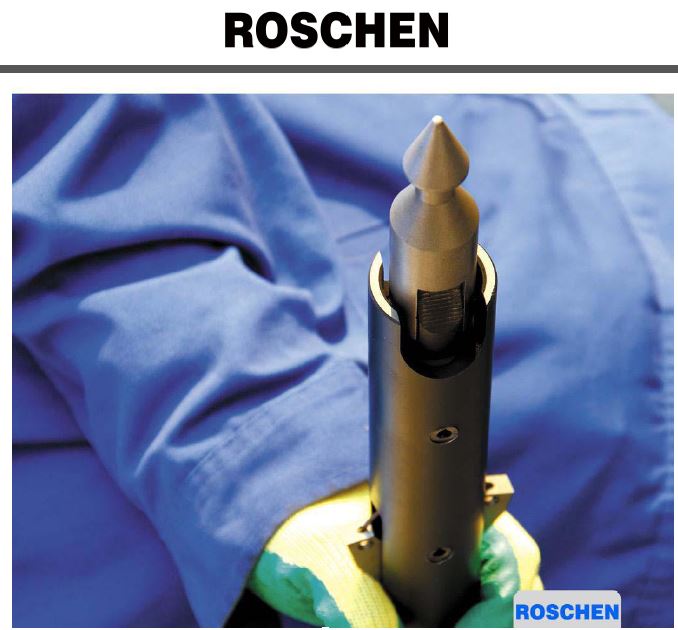

4C 6C 8C Triple Core Barrel
4C 6C 8C Triple Core Barrel
NMLC, HMLC, 3C, 4C, 6C, 8C Core Barrels
Triple Tube Core Barrels
---MLC (Triefus) Series Core Barrels
These triple tube core barrels are generally used for geotechnical purpose, designed to maximize core recovery in soft formations. Available diameter sizes from 35-146mm.
Standard "Q" wire line bit sizes | ||
Size | Hole (outside) diameter, mm | Core (inside) diameter, mm |
AQ | 48 | 27 |
BQ | 60 | 36.5 |
NQ | 75.7 | 47.6 |
HQ | 96 | 63.5 |
PQ | 122.6 | 85 |
CHD 76 | 75.7 | 43.5 |
CHD 101 | 101.3 | 63.5 |
CHD 134 | 134 | 85 |
Q Series Wireline Core Barrel System Sizes | ||
SIZE | CORE Ø | HOLE Ø |
AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
PQ | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
Roschen Core Barrel System Sizes | ||||
SYSTEM | CORE Ø | HOLE Ø | ||
mm | in | mm | in | |
A | 48,0 | 1.89 | 27,0 | 1.06 |
B | 59,9 | 2.36 | 36,4 | 1.43 |
N | 75,7 | 2.98 | 47,6 | 1.88 |
H | 96,1 | 3.78 | 63,5 | 2.5 |
P | 122,6 | 4.83 | 85,0 | 3.35 |
CONVENTIONAL CORE BARREL SPECIFICATIONS | ||||||
TYPE | SET BIT (O.D.) | HOLE SIZE (O.D.) | CORE SIZE (O.D.) | |||
Imperial | Metric | Imperial | Metric | Imperial | Metric | |
BMLC | 2.330" | 59.18MM | 2.360" | 59.94MM | 1.386" | 35.20MM |
NMLC | 2.945" | 74.80MM | 2.980" | 75.69MM | 2.045" | 51.94MM |
HMLC | 3.875" | 98.42MM | 3.906" | 99.21MM | 2.500" | 63.50MM |
3C | 4.343" | 110.31MM | 4.375" | 111.12MM | 3.000" | 76.20MM |
4C | 5.468" | 138.89MM | 5.500" | 139.70MM | 4.000" | 101.60MM |
6C | 7.730" | 196.04MM | 7.750" | 196.85MM | 5.750" | 146.04MM |
8C | 10.200" | 259.10MM | 10.250" | 260.35MM | 7.980" | 202.70MM |
Double Tube Core Barrels
---TT Series Core Barrel Ultra-thin walled double tube core barrels, available diameters 46 and 56 mm. Very thin cutting face allows very rapid rate of penetration through hard formations. They are suitable for underground mining applications.
---T2 Series Double Tube Core Barrels The T2 Series are thin wall double tube core barrel, used for surface exploration, especially mining applications. Due to their thin kerf, these core barrels provide rapid penetration. Available in diameters 46, 56, 66, 76, 86, 101mm.
---T6 Series Double Tube Core Barrels These are a continuation of the T2 series, but of a sturdier design and available in larger diameters, 76, 86, 101, 116.131 and 146mm. They are applied in surface mining and geotechnical drilling.
---LTK 48 & LTK 60 Double Tube Core Barrels The LTK series core barrels system is a thinner wall core barrel than T2 series. They offer a cost effective, high production, which is designed for optimum production and core recovery in medium to extra hard rock formations. Available sizes 48 and 60mm.
---WF Series Double Tube Core Barrels They are geotechnical core barrels primarily designed for coring relatively soft formations in using face-discharge bits. Simple construction and more resilient to damage than thin-wall barrels, but with slower enetration rate.
---WG Series Double Tube Core Barrels There are Double tube core barrels for WG series. Available in DCDMA sizes E, A, B, N, and H.
---TBW and TNW Core Barrels
These are thin-walled double tube core barrels, as T2 series but with DCDMA hole sizes B and N. Used for surface exploration, specially mining applications. The thin kerf area allows rapid penetration.
---Wireline Double Tube Core Barrels Wireline double core barrels are primarily used in deep coring. With an overshot device, they eliminate the need to couple and uncouple the rod string each time the core is retrieved. Available in DCDMA sizes A, B, N, H, and P.
---Chinese Standard Double Tube Core Barrels
---Chinese Standard Wireline Double Tube Core Barrels
---Jet-type Reverse Circulation Double Tube Core Barrels
