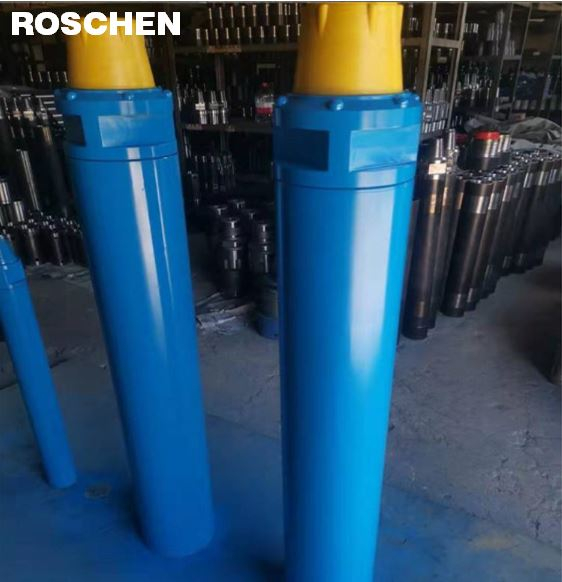

3inch 4inch 1/2inch Reverse Circulation RC Hammer

DTH Reverse Circulation Hammer 3inch 4inch 4 1/2inch With Outstanding Reliability
Reverse Circulation Hammer Description
Reverse circulation RC is a drilling method widely used around the world. The method is unbeatable in areas where water is scarce or expensive, such as Australia and Western Africa (and, for the same reason, in northern Canada).

In a number of geological scenarios, the large volume of sample collected by RC systems can be a significant advantage. Exploration projects dealing with a “nugget effect” (for example, coarse gold or diamond projects) can often benefit from a larger diameter drill hole. Roschen generally drills holes with a diameter ranging from 3 ⅝” to 4 ½” (92 mm to 114 mm). The sample recovery from a 3 ⅝” (92 mm) diameter hole is approximately 11 lbs/ft (16.4 kg/m) depending on rock type.

Quantity:
  • RE035 RE004 RE540 RE040 RE542
  • ROSCHEN
  • ROS-RC-RE035 RE004 RE540 RE040 RE542

Product Description

Reverse Circulation RC Hammer 3inch 4inch 4 1/2inch

DTH Reverse Circulation Hammer 3inch 4inch 4 1/2inch With Outstanding Reliability

Reverse Circulation Hammer Description

Reverse circulation RC is a drilling method widely used around the world. The method is unbeatable in areas where water is scarce or expensive, such as Australia and Western Africa (and, for the same reason, in northern Canada).



In a number of geological scenarios, the large volume of sample collected by RC systems can be a significant advantage. Exploration projects dealing with a “nugget effect” (for example, coarse gold or diamond projects) can often benefit from a larger diameter drill hole. Roschen generally drills holes with a diameter ranging from 3 ⅝” to 4 ½” (92 mm to 114 mm). The sample recovery from a 3 ⅝” (92 mm) diameter hole is approximately 11 lbs/ft (16.4 kg/m) depending on rock type.

Name:

Reverse Circulation Hammer

Application:

Coal Mining, Ore Mining,   Exploration Core Drilling

Drills:

Reverse Circulation Drilling   Companies

RC Hammer:

Reverse Circulation Hammer   Lubricant

Size:

3" 4” 4 1/2"

Advantage:

Outstanding Reliability

ROSCHEN RC Hammers Specifications

Hammer Size

Hammer

Bit Shank

ROSCHEN Code

Hole Range (mm)

External Diameter (mm)

Length (without bit) mm

Weight (N.W.) kgs

Connection Thread

Working Pressure

3"

RE531

RE531

ROS RC 30

84-100

81

1069

29

3“ Remet

1.0-3.0Mpa

3"

RE035

RE035

ROS RC 35

84-105

85

1075

35

3“ Remet

1.0-3.0Mpa

4 1/2"

RE004

RE004

ROS RC 40

111-127

107

1252

52

3.5"-4" Remet  4"   Metzke

1.0-3.0Mpa

4 1/2"

RE540

RE540

ROS RC 45

111-127

107

1252

52

3.5"-4" Remet  4"   Metzke

1.0-3.0Mpa

5"

RE040

RE040

ROS RC 50

113-130

109.5

1191

57

3.5"-4" Remet  4"   Metzke

1.0-3.0Mpa

5"

RE542

RE542

ROS RC 50

113-130

109.5

1191

57

3.5"-4" Remet  4"   Metzke

1.0-3.0Mpa

5"

RE543

RE543

ROS RC 50

120-135

116

1191

62

3.5"-4" Remet  4"   Metzke

1.0-3.0Mpa

5"

RE545

RE545

ROS RC 50

122-135

117.5

1261

65

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

RE547

RE547

ROS RC 55

130-146

124.5

1270

71

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

5 1/2"

RE052

RE052

ROS RC 55

130-146

124.5

1270

71

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

5 3/4"

RE054

RE054

ROS RC 55

130-146

124.5

1270

85

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

5 3/4"

RE140

RE140

ROS RC 55

130-146

124.5

1270

85

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

5"

PR40

PR40

ROS RC 50

124-142

120.5

1362

80.5

3.5"-4.5" Remet 3.5"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR52

PR52

ROS RC 55

126-142

121

1227

68.5

4"-4.5" Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR52R

PR52/PR52R

ROS RC 55

130-146

124

1225

65

4"-4.5"Remet 4"-4.5" Metzke

1.5-3.5Mpa

5 1/2"

PR54

PR54

ROS RC 55

135-150

130

1294

84.5

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

6"

MX5456

MX5456

ROS RC 60

136-150

132

1362

90

4.5" Remet 4.5" Metzke

1.5-3.5Mpa

6"~6 1/2"

RC62/RC62R

RC62/RC62R

ROS RC 65

152-190

146

1320

110

As Request

1.5-3.5Mpa

8"

RC82/RC82R

RC82/RC82R

ROS RC 80

190-250

180

1395

185

As Request

1.5-3.5Mpa

10"

RC100/RC100R

RC100/RC100R

ROS RC 100

250-370

240

1528

328

As Request

1.5-3.5Mpa

Notes:

Metzke, Remet thread is available!

Any special type shank of RC Hammer will be available by requests.

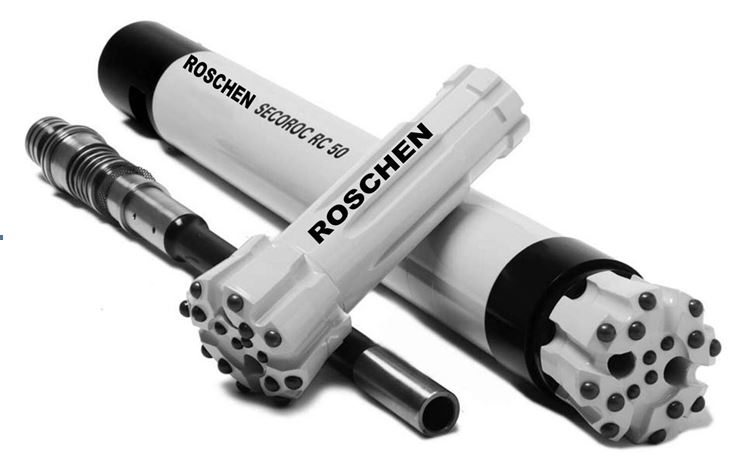

3inch 4inch RC hammer

ENVIRONMENTALLY SOUND


Reverse circulation drilling has several environmental advantages. First and foremost, RC mostly requires no water for rock drilling. This is a benefit in areas with limited or sensitive water supply.


In addition, frozen water sources and waterlines can make winter drilling both tricky and expensive, if not impossible. In certain areas, like the arctic tundra, environmental permitting is easier for winter drilling when the ground is frozen and unlikely to be disturbed. Light-weight RC makes winter drilling in the arctic a viable option.


HIGH RATE OF PENETRATION


A big advantage of RC is its high rate of penetration. Penetration rates often exceed 80 m per shift depending on ground conditions. The speed of drilling can often mean big cost savings compared to slower drilling methods.


GOOD IN BAD GROUND


Reverse circulation RC drilling is relatively insensitive to ground conditions, which may be difficult or slow to penetrate using other methods. Dual-pipe RC was originally developed as a method to drill “nightmare” geological formations (such as permafrost, glacial till, broken rock, etc.) where conventional drilling methods were costly and ineffective.


Reverse circulation RC drill cuttings are transported to surface inside the centre tube of the dual pipe. Because of this sample recovery is usually very good with high recoveries of both fines and clays.
